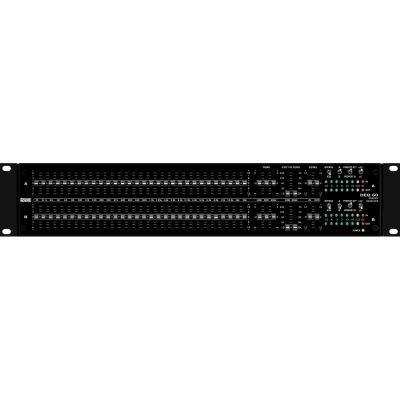

Rane DEQ 60



DEQ 60L Graphic Equalizer

Now in Two Versions

DEQ 60: 25 mm sliders; includes security cover

DEQ 60L: 45 mm sliders; switchable cut-only mode

General Description

When the term "graphic equalizer" was first coined, the intent was to

provide a device that allowed the user to "draw" the desired frequency

response using slider controls on the unit's front panel. Thus, the

Holy Grail of graphic equalizers is a device with a response that

truly matches the slider settings. For years, this seemingly

unobtainable goal resulted in products based on the fine art of

compromise - until now - until the DEQ 60.

It's not Constant - not Proportional - It's Perfect! Digital Signal

Processing (DSP) allows filter technology not possible with analog

designs. Rane coined the term Perfect-QTM to describe the results

(U.S. & international patents filed). The DEQ 60 is the world's first

true graphic equalizer (i.e., one providing real mechanical front

panel slide controls) whose output response precisely matches its

front panel settings. Perfect-Q features virtually no band interaction

and extremely low ripple between adjacent bands. Just to keep things

interesting and flexible, fear not proportional-Q lovers, for each

channel of the DEQ 60 is selectable between Perfect-Q or

proportional-Q response

For all the details, read the RaneNote "Perfect-Q, the Next Step in

Graphic EQ Design".

The DEQ 60L Graphic Equalizer provides the most complete set of pure EQ

functions ever offered in an analog controlled equalizer.

Perfect-QTM : What You See Is What You Get

No EQ filter interaction

Proportional-Q: Classic smooth response

Independent Accelerated-SlopeTM 3-band full-cut tone controls

Low-cut and High-cut filters

Switchable Boost/Cut or Cut-Only Modes

Input and Output Level controls

Eight segment metering for each Input and Output

Two Boost / Cut ranges: ±6 dB or ±12 dB

Each channel may use A or B channel controls

Stereo Linking

Two "analog memories"

A-curve / B-curve comparison

Analog controlled DSP

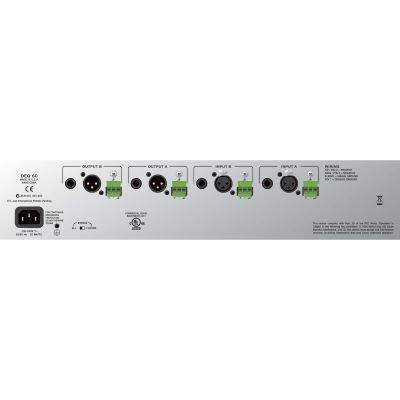

XLR, 1/4" TRS and Euroblock connectors

Bypass switch (DSP), Bypass relay (power failure)

Exceptional RF and magnetic immunity

Universal internal switching power supply
