RCF ART 912-A B-Ware

Why B-goods: Minimal signs of use.

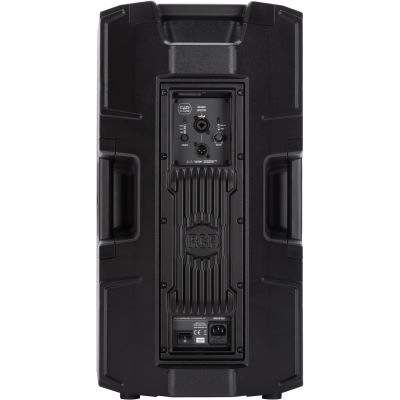

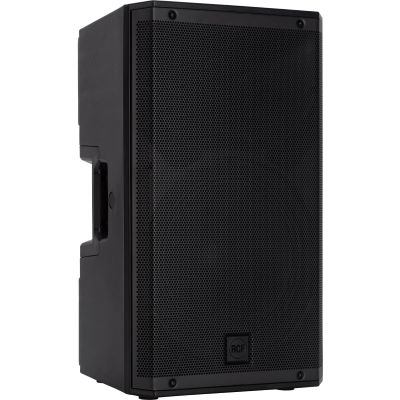

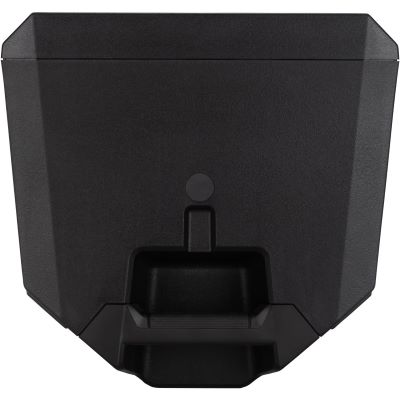

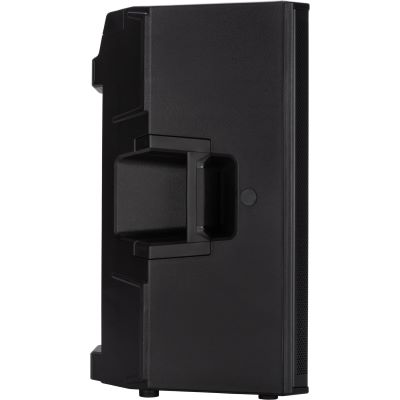

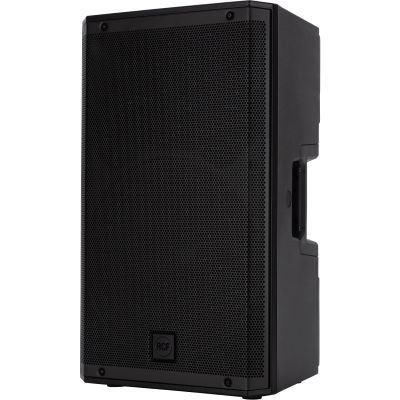

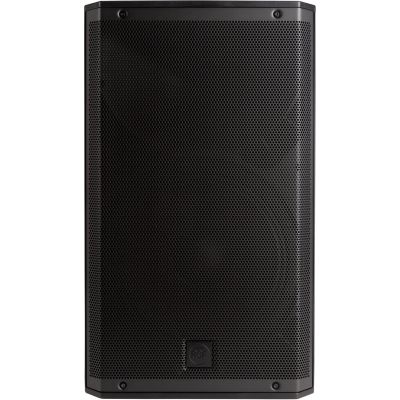

ART 912-A - Professional active speaker

The ART 912-A offers innovative technologies and supernatural sound for demanding audio applications. The combination of a 1.75-inch compression driver, a 12-inch woofer, a 2-channel power amplifier with 2100 W and a Constant Directivity TrueResistive Waveguide ensures consistent 100° x 60° coverage of the listening area with up to 130 dB SPL distortion-free sound. Whether stand-alone in an FOH system, as a satellite (with subwoofer), stage monitor or flown: The compact ART 912-A is powerful and reliable. As the most flexible active speaker in its class, it also has several mounting points for fixed installations. Thanks to the RCF-exclusive FiRPHASE and Bass Motion Control algorithms, which are precisely matched to the individual models, your audience will experience absolutely transparent sound reproduction and an extensive, powerful bass range. The elegant polypropylene cabinet is equipped with an internal M-frame for stabilization. This makes it easy to transport and allows it to be securely mounted on a stand, suspended, on the wall or on a truss with the help of several fixing points.

Features:

• Up to 130 dB sound pressure level
• 2-channel Class D power amplifier, 2100 W
• Linear transmission range 50 - 20000 Hz
• 1.75-inch compression driver
• 12-inch woofer
• FiRPHASE 0 degree phase response
• Bass Motion Control Intelligent control of the woofer excursion

Technical specifications:

• Frequency response: 50 Hz ÷ 20000 Hz
• Max. SPL @ 1M: 130 dB
• Horizontal dispersion angle: 100°
• Vertical dispersion angle: 60°

Transducer:

• Compression driver: 1 x 1.0", 1.75" v.c
• Woofer: 12", 2.5" v.c

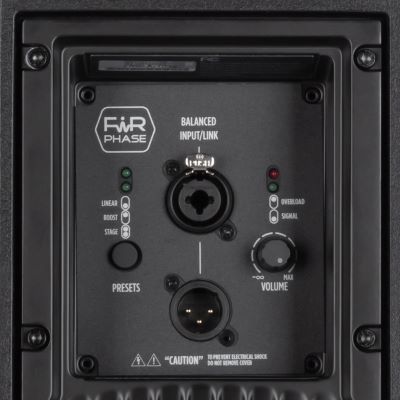

Input/output section:

• Input signal: bal/unbal
• Input sockets: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor:

• Crossover frequency: 1800 Hz
• Protection circuits: Thermal, RMS
• Limiter: Soft limiter
• Controls: Linear, Boost, Stage, Volume

Power Section:

• Total power: 2100 W peak
• HF range: 700 W peak
• Low frequencies: 1400 W peak
• Cooling: Convection
• Connected units: VDE

Standard Compliance:

• CE Mark: Yes

Physical data:

• Housing material: PP Composite
• Hardware: 1 x M10 Top, 1 x M10 each side
• Handles: 1 Top , 1 each side

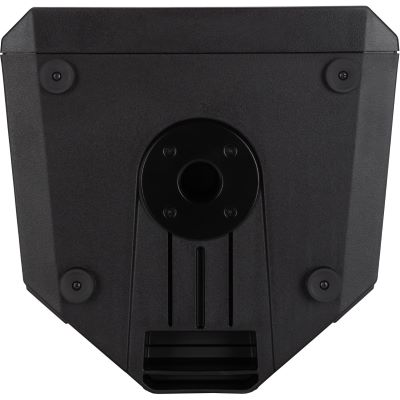

• Pole Mount/Cap: Yes
• Grille: Steel
• Color: Black

Size:

• Height: 642 mm / 25.28 inches
• Overall width: 370 mm / 14.57 inches
• Packaging depth: 363 mm / 14.29 inches
• Weight: 19 kg / 41.89 lbs

Specs:

• Type: Full Range Speaker
• Power: 2100 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 12
• Tweeter: 1 x 1,75
• Number of channels: 1
• Set Offer: no
• Bluetooth: No
• Theme: PA and Sonication
