RCF C 3108 Product Details

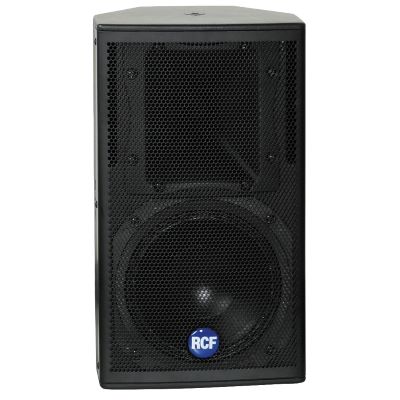

The C3108 is a full range 2 way passive system, extremely compact and light.
Providing very natural sound reproduction. It is the optimum choice for a variety of fixed or portable applications.
It features 4 M10 mounting points for horizontal or vertical U-bracket, for ceiling or wall mount installation. The pole mount, the very light weight and small size make this speaker ideal for portable applications.
The C3108 can be used as a main speaker in small, near field systems or as a fill/delay element in bigger systems. The wide coverage angle and the true constant directivity of the newly designed horn make very easy the coverage of a large audience; the CMD crossover design guarantee the perfect pattern matching of woofer and compression driver, avoiding secondary lobes creation. The possibility to rotate the horn optimise both horizontal or vertical installations.
The C3108 features advanced technology, latest generation transducers: the 8” woofer is equipped with a 2” voice coil and the 1” neodymium compression driver is equipped with a 1.5” voice coil.
Applications: - Permanent Installations
Features:
- Frequency response: 80 Hz –20.000 Hz
- Max SPL: 126 dB
- Sensitivity (1W/1m): 96 dB
- Impedance: 8 Ohm
- Coverage angle: 90°x70°
- Compression Driver: 1” neodymium, 1.5” aluminium voice coil
- Woofer: 8” mid-bass, 2” voice coil
- Power handling: 300 Watt
- Crossover frequncy: 2100 Hz
- Protections: Active Mosfet Compression Driver Protection
- Connectors: 2 x Neutrik Speakon NL4
- Fittings: 4 x M10 Mounting Points, Pole Mount
- Dimensions: 427H x 242 W x 156 D
- Weight: 10 Kg.
