RCF L15P200AK 8 Ohm Product Details

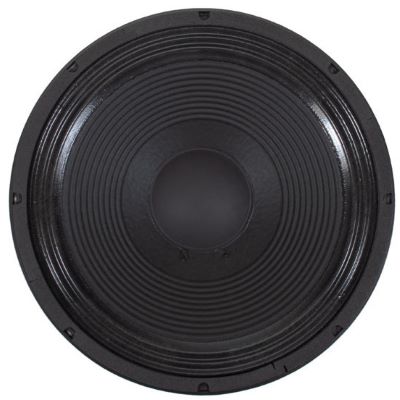

The L15P200AK is the RCF classical extended low frequency 15” woofer.
Generous voice coil length, heavier moving mass weight and very low resonance frequency for perfect low frequency reproduction. Remarkable the linearity in the application range. Special treatments are applied to cone surface and surround for optimum dampening.
Applications
The L15P200AK finds its best application in bass reflex enclosures. It is a perfect solution for recorded music, cinema speakers, very low frequency monitoring and applications where low frequency linearity is required. In 2 way systems shall be used in conjunction to large format compression driver, very good for linear 3 way system.
Features:
- Nominal Diameter: 380/15 mm/inch
- Rated Impedance: 8 Ohm
- Program Power: 1600 Watts
- Power handling capacity: 800 Watts
- Sensitivity 1W, 1m: 95 dB
- Frequency Range: 35-1000 Hz
- Effective Piston Diameter: 325/12.8 mm/inch
- Maximum Excursion Before Damage: 36/1.4 mm/inch
- Minimum Impedance: 7.9 Ohm
- Voice Coil Diameter: 100/4 mm/inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 24/0.9 mm/inch
- Number of layers: 2
- Kind of layer: Outside
- Thickness Top Plate Depth: 9/0.35 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Straight
- Surround Material: Polycotton
- Surround Design: Triple roll
- Resonance frequency: Fs 38 Hz
- DC resistance: Re 5.9 Ohm
- Mechanical factor: Qms 6.8
- Electrical factor: Qes 0.38
- Total factor: Qts 0.35
- BL factor: BL 21.2 T - m
- Effective Moving Mass: Mms 121 gr
- Equivalent Cas air load: Vas 139 liters
- Effective piston area: Sd 0.083 m2
- Max. linear excursion: Xmax 9.8 mm
- Voice - coil inductance @ 1KHz: Le1k 2.2 mH
- Half-space efficiency: Eff 1.93 %
- Overall Diameter: 387/15.2 mm/inch
- Bolt Circle Diameter: 371 mm
- Bolt Hole Diameter: 8/0.3 mm/inch
- Front Mount Baffle Cut-out: 358/14.1 mm/inch
- Rear Mount Baffle Cut-out: 362/14.2 mm/inch
- Depth: 138/5.4 mm/inch
- Volume occupied by the driver: 3.4 liters/ft3
- Net Weight: 11.7/25.7 Kg/lbs
- Shipping Weight: 12.2/26.8 Kg/lbs
