RCF L15S800 8 Ohm Product Details

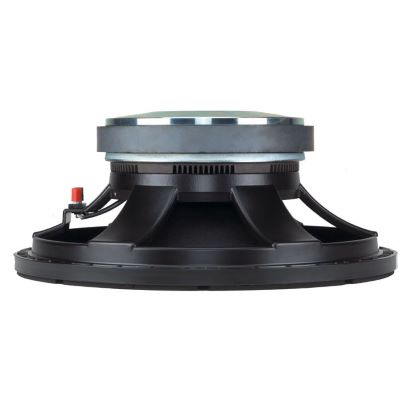

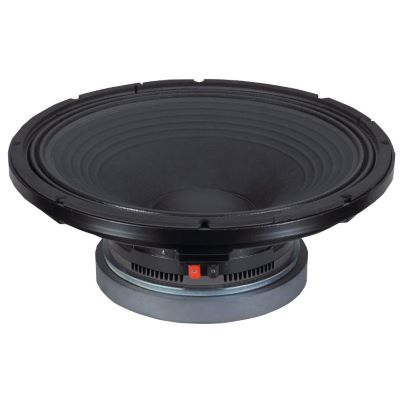

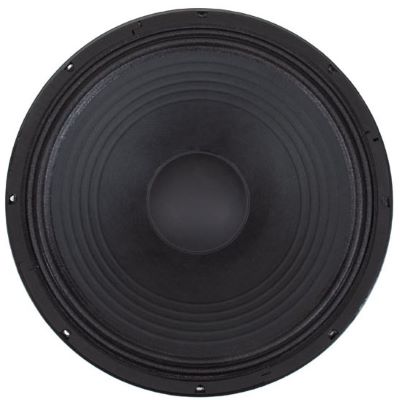

The L15S800 is the RCF classical high efficiency 15” woofer.

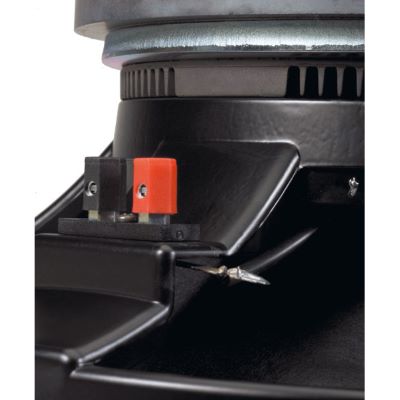

A perfect blend of voice coil length, moving mass weight and suspensions control makes this transducer the preferred solution for many speakers and rental companies. Efficient heat dissipation is ensured by forcing hair out through a special vented radiator system which is part of the gap, situated between the basket and the upper plate.
Applications
The L15S800 finds its best application in band pass, reflex-horn and horn loaded systems. It is a perfect compact bass reflex solution for live music, when the maximum punch is required. It is one of the fastest transducers in its category.
Features:
- Nominal Diameter: 380/15 mm/inch
- Rated Impedance: 8 Ohm
- Program Power: 1400 Watts
- Power handling capacity: 700 Watts
- Sensitivity 1W, 1m: 99.5 dB
- Frequency Range: 40-1500 Hz
- Effective Piston Diameter: 330/13 mm/inch
- Maximum Excursion Before Damage: 48/1.9 mm/inch
- Minimum Impedance: 8.0 Ohm
- Voice Coil Diameter: 100/4 mm/inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 16/0.6 mm/inch
- Number of layers: 2
- Kind of layer: Inside/Outside
- Thickness Top Plate Depth: 10/0.4 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M - roll
- Resonance frequency: Fs 48 Hz
- DC resistance: Re 6.1 Ohm
- Mechanical factor: Qms 11
- Electrical factor: Qes 0.33
- Total factor: Qts 0.32
- BL factor: BL 23.6 T - m
- Effective Moving Mass: Mms 100 gr
- Equivalent Cas air load: Vas 113 liters
- Effective piston area: Sd 0.085 m2
- Max. linear excursion: Xmax 5.5 mm
- Voice - coil inductance @ 1KHz: Le1k 1.7 mH
- Half-space efficiency: Eff 3.65 %
- Overall Diameter: 387/15.2 mm/inch
- Bolt Circle Diameter: 371 mm
- Bolt Hole Diameter: 8/0.3 mm/inch
- Front Mount Baffle Cut-out: 352/13.9 mm/inch
- Rear Mount Baffle Cut-out: 360/14.1 mm/inch
- Depth: 138/5.4 mm/inch
- Volume occupied by the driver: 3.8 liters/ft3
- Net Weight: 12/26.4 Kg/lbs
- Shipping Weight: 12.5/27.5 Kg/lbs
