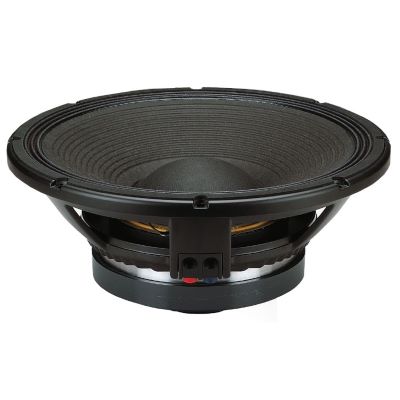

RCF LF15X400 8 Ohm
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of RCF
RCF LF15X400 8 Ohm Product Details
Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch transducer within its application range.
The LF15X400 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52 mm. The T-pole also features RCF Precision’s spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits. Forced air venting system.
Applications
The LF15X400 is ideal for use in applications whereincredible power handling, long excursion and perfect control is required. Ideal for high quality professional bass reflex and bass-horn systems, incredible when used in double 15” subwoofer configuration.
The transducer's low frequency extension, coupled with its extremely low generation of harmonic distortion, also makes it ideal for use within critical listening applications such as studio monitoring subwoofer systems.
Features:
- Nominal Diameter: 380/15 mm/inch
- Rated Impedance: 8 Ohm
- Program Power: 1600 Watts
- Power handling capacity: 800 Watts
- Sensitivity 1W, 1m: 97 dB
- Frequency Range: 30-1500 Hz
- Effective Piston Diameter: 340/13.4 mm/inch
- Maximum Excursion Before Damage: 52/2.1 mm/inch
- Minimum Impedance: 6.3 Ohm
- Voice Coil Diameter: 100/4 mm/inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 23/0.9 mm/inch
- Number of layers: 2
- Kind of layer: Inside/Outside
- Thickness Top Plate Depth: 14/0.55 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Straight
- Surround Material: Polycotton
- Surround Design: Triple roll
- Resonance frequency: Fs 37 Hz
- DC resistance: Re 5.0 Ohm
- Mechanical factor: Qms 4.9
- Electrical factor: Qes 0.26
- Total factor: Qts 0.25
- BL factor: BL 24 T - m
- Effective Moving Mass: Mms 130 gr
- Equivalent Cas air load: Vas 164 liters
- Effective piston area: Sd 0.091 m2
- Max. linear excursion: Xmax 8.0 mm
- Voice - coil inductance @ 1KHz: Le1k 2.1 mH
- Half-space efficiency: Eff 3.08 %
- Overall Diameter: 393/15.5 mm/inch
- Bolt Circle Diameter: 371-376 mm
- Bolt Hole Diameter: 6.5/0.3 mm/inch
- Front Mount Baffle Cut-out: 352/13.9 mm/inch
- Rear Mount Baffle Cut-out: 360/14.2 mm/inch
- Depth: 158/6.2 mm/inch
- Volume occupied by the driver: 4.3 liters/ft3
- Net Weight: 12.6/27.7 Kg/lbs
- Shipping Weight: 13.6/29.9 Kg/lbs
