RCF MB8G200 8 Ohm
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of RCF
RCF MB8G200 8 Ohm Product Details

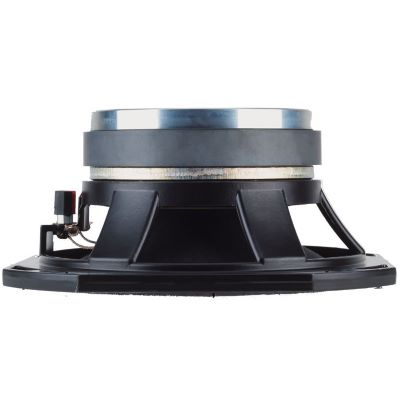

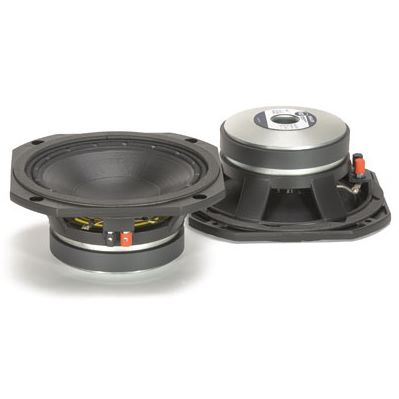

RCF MB8G200
The MBG200 is a professional mid-bass woofer featuring very high output and dynamics.
The equipment, used a 2” coil, fibreglass former and copper inside/outside winding, has enabled a very good transient peak response and has allowed good extension on mid-high frequencies. A specially designed M-roll surround guarantee a very low midrange distortion and perfect damping of the spurious resonances. Inverted dust cap for minimum cone break-up.
Applications
The MBG200 is the ideal low frequency transducer for very compact, high efficiency, bass reflex systems where the maximum dynamic is required. Specially designed for 2 way satellite systems.
- 1.5-inch, fiber glass former, copper voice coil
- 400 Watt continuous program power handling
- 94 dB Sensitivity
- 60 Hz - 4 kHz Frequency range
- Exponential, high strength
- M-roll damped surround
The MBG200 is a professional mid-bass woofer featuring very high output and dynamics.
The equipment, used a 2” coil, fibreglass former and copper inside/outside winding, has enabled a very good transient peak response and has allowed good extension on mid-high frequencies. A specially designed M-roll surround guarantee a very low midrange distortion and perfect damping of the spurious resonances. Inverted dust cap for minimum cone break-up.
Applications
The MBG200 is the ideal low frequency transducer for very compact, high efficiency, bass reflex systems where the maximum dynamic is required. Specially designed for 2 way satellite systems.
- 1.5-inch, fiber glass former, copper voice coil
- 400 Watt continuous program power handling
- 94 dB Sensitivity
- 60 Hz - 4 kHz Frequency range
- Exponential, high strength
- M-roll damped surround
Features:
- Nominal Diameter: 200/8 mm/inch
- Rated Impedance: 8 Ohm
- Program Power: 400 Watts
- Power handling capacity: 200 Watts
- Sensitivity 1W, 1m: 94 dB
- Frequency Range 60-4000 Hz
- Effective Piston Diameter: 165/6.5 mm/inch
- Maximum Excursion Before Damage: 30/1.2 mm/inch
- Minimum Impedance: 6.2 Ohm
- Voice Coil Diameter: 51/2 mm/inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 16/0.6 mm/inch
- Number of layers: 2
- Kind of layer: Outside
- Thickness Top Plate Depth: 8/0.3 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M - roll
- Resonance frequency: Fs 76 Hz
- DC resistance: Re 4.8 Ohm
- Mechanical factor: Qms 3.7
- Electrical factor: Qes: 0.37
- Total factor: Qts 0.33
- BL factor: BL 12.5 T - m
- Effective Moving Mass: Mms 25 gr
- Equivalent Cas air load: Vas 11 liters
- Effective piston area: Sd 0.021 m2
- Max. linear excursion: Xmax 6.0 mm
- Voice - coil inductance @ 1KHz: Le1k 1.4 mH
- Half-space efficiency: Eff 1.26 %
- Overall Diameter: 239/9.4 mm/inch
- Bolt Circle Diameter: 221 mm
- Bolt Hole Diameter: 6.4/0.3 mm/inch
- Front Mount Baffle Cut-out: 184/7.24 mm/inch
- Rear Mount Baffle Cut-out: 184/7.24 mm/inch
- Depth: 95/3.7 mm/inch
- Volume occupied by the driver: 0.08 liters/ft3
- Net Weight: 3.1/6.8 Kg/lbs
- Shipping Weight: 3.3/7.3 Kg/lbs
