RCF ND 850-1.4

RCF N850

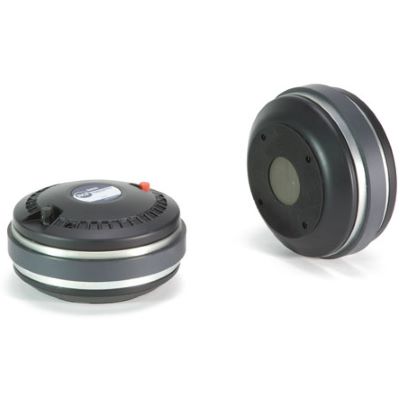

The N850 is a high quality 3.0-inch diaphragm compression driver with a 2 inch exit.

The diaphragm is precision formed from .05 mm thick pure titanium. The suspension is based on a Mylar vented design. The front aluminum adaptor guarantee a very smooth transition from the phase plug to the 2” output interface.

Applications
The N850 is a compression driver for professional applications, from high power 2-way systems to multiple-way long throw systems and large format arrays. Very good linearity and efficiency in combination with RCF H6040 horn (60 X 40 degrees dispersion).

- 3-inch Diaphragm, 2.0-inch Exit Throat Titanium Compression Driver

- 180 watt Continuous program power handling

- Frequency range: 500Hz - 20kHz

- 3-slot, optimized geometry phase plug

- Aluminum rear cover and front adaptor

- Copper inductance ring for extended response

- Vented suspension system

Features:

• Exit Throat Diameter: 50.8/2 mm/inch
• Rated Impedance: 8 Ohm
• Power handling capacity: Continuous Program above 1 kHz:(above 1.2 kHz) 180 Watts
• Power handling capacity: AES above 1 kHz: (above 1 kHz) 90 Watts
• Sensitivity 1W, 1M on-axis on horn: 109 dB
• Frequency Range: 500-20000 Hz
• Diaphragm Material: Pure Titanium
• Suspension Material: Mylar
• Suspension Design: Radial
• Minimum Impedance: 8.8 Ohms at 3500 Hz
• Voice Coil Diameter: 74.4/3.0 mm/inch
• Voice Coil Material: Edgewound Aluminium
• Voice Coil Former Design and construction material: Straight - Kapton
• Number of layers: 1 - Outside
• BL Factor: 12 T- m
• Flux Density: 1.85 T
• Phase Plug Design: 3 slot
• Phase Plug Material: Composite
• Magnetics: Ceramic
• Voice Coil Demodulation: Copper ring
• Overall Diameter: 180/1 mm/inch
• Overall Height: 95/3.7 mm/inch
• Mounting 4 each 6mm threaded holes 90 deg. apart on: (4 x 6 mm threaded holes at 90 deg.) 76.2/3.0 mm/inch
• Net Weight: 4.7/10.3 Kg/Lbs
• Shipping Weight: 5/11.0 Kg/Lbs
