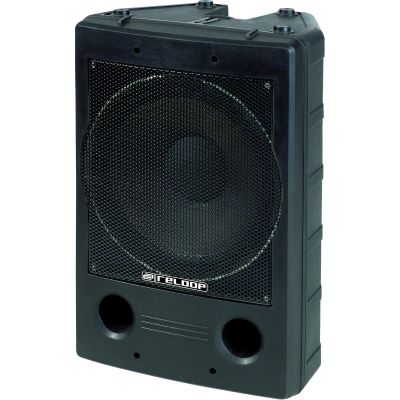

Reloop RABS-15 SUB A

Active subwoofed high performance: The RABS-15 A Sub’s 15" speaker provides big bass,

made mobile. The phase can be changed over from 0 degree to 180 degree and a ground-lift switch

combats interference. Its integrated amplifier components create system harmonisation to perfection.

This is especially due to the combined diplexer/limiter. The active RABS models can be linked by a loop.

With the obligatory ABS plastic casing and "long-throw" low-frequency speakers creating

a clear fundamental sound.

Features

Integrated 2-fold pre-equalizer and combined diplexer/limiter

High quality microphone pre-amplifier for direct hook-up of dynamic mics

Comprehensive phase and time correction for perfect system co-ordination

Innovative reflex system for automatic convection cooling

Extremely stable low resonance ABS plastic casing

Special design for suspended operation

Highly efficient 3.2 cm compression drive with titanium dome for excellent tweeter replay

"Long-Throw" low-frequency speaker with high performance magnet

Symmetrical XLR and 6.3 mm jack inputs

Signal loop to connect additional loudspeakers

Transparent arrangement of power and overload LEDs to the front and rear

Integrated points of suspension and flange

Maximum frequency control (50 - 500 Hz)

Integrated limiter

Ground-lift switch to combat interference

Phase change-over switch (0 degree / 180 degree)

Technical Details

400 Watt RMS active subwoofer

System: 1-way

Frequency response: 35 Hz - 500 Hz

Max. output: 800 Watt

Sensitivity: 127 dB

Speaker: 38 cm (15") "Long-Throw" bass

Dimensions: 445 x 670 x 365 mm

Weight: 29.1 kg

Specs:

• Power: 800 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: yes
• Type: Subwoofer
• Theme: PA and Sonication
