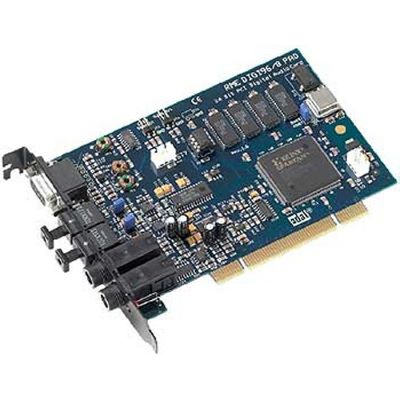

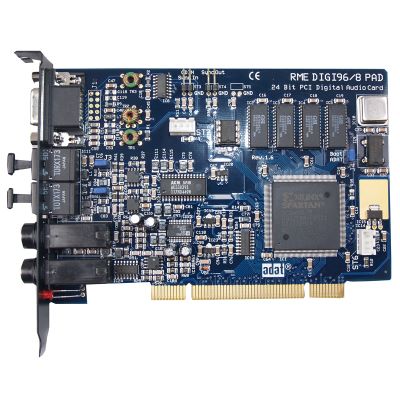

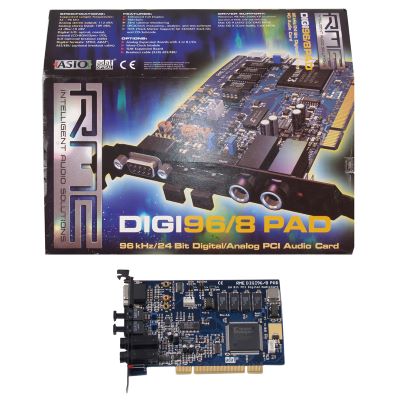

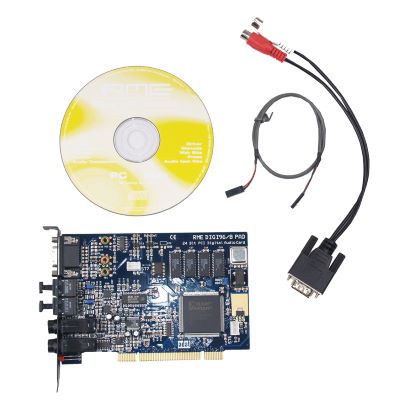

RME Digi96/8 PAD

DIGI96/8 is the perfect digital audio interface for your Mac or PC. It offers both a 2-channel (SPDIF and AES/EBU) and 8-channel interface (ADAT® optical.) Enhanced Full Duplex and Master mode allow a combined operation in SPDIF and ADAT® format.

RME's unique Bitclock PLL has become reference. Whatever you do with your ADAT®: DIGI96/8 stays locked and will not loose a sample! Professionals will enjoy to change the Emphasis bit, and play back encoded AC-3 streams that are compatible to every AC-3 decoder by setting the Non-Audio bit.

The optional Expansion Boards (EXB) turn the DIGI96/8 into a fully analog version, with 4 or 8 analog inputs and outputs in exceptional quality. The optional Word Clock Module (WCM) adds word clock input and output, a unique test and 'house clock' mode. And our latest TDIF Expansion (TEB) lets you use the card as TDIF interface as well.

Last but not least: The DIGI96 series includes DIGICheck, the ultimate measurement, analysis and test tool!

The DIGI96 series offers drivers for Windows 95/98 (MME, multi-DirectSound, ASIO 2.0, GSIF, DS/MME/ASIO/GSIF multi-client operation), Windows NT (MME with multi-client operation, ASIO 2.0), Windows 2000/XP (MME, ASIO 2.0, GSIF, MME/ASIO/GSIF multi-client operation), MacOS (Sound Manager and ASIO 2.0) and Linux (OSS and ALSA.)

Just click on the DIGI symbol in the systray of the taskbar and the settings dialog of the DIGI96/8 comes up. The clear structured, easy to understand window plus the unique informative status displays for input and output make your work with the DIGI96/8 to a real pleasure. With a simple mouse click (or a freely configurable key shortcut) you gain access to the full power of your card.

RME's Settings dialog shows installed and active DIGI96® series' cards, according to their numbering in the system. Therefore even in multicard usage you'll always know which wave device belongs to which card.

Supported sample frequencies: 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz

All settings changeable in realtime, all output options even in playback mode

Separate record- and playback circuits; complete master mode

Enhanced Full Duplex: Different sample rates at input and output possible

Mixed Mode: ADAT® in - SPDIF out and vice versa at full synchronization

AutoSync: Automatic and intelligent master/slave clock control

Outstanding PLL allows synchronization even at double/half sample rates

Unsurpassed Bitclock PLL (audio synchronization) in ADAT® mode

Optional Word Clock Module (WCM) provides word clock input and output

TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode

Comes with DIGICheck: the ultimate measurement, analysis and test tool

Unique status windows for record and playback, showing mode and sample rate

Zero Latency Monitoring: Hardware bypass per track, controlled by Punch-in/out

AutoSelect searches automatically for an input with valid signal

Combined Channel Interleave/multi-device driver, for full software compatibility

Complete interrupt-sharing

Windows driver with Pentium® optimization (quad times memory transfer)

High bus transfer rate (up to 130 MByte/s)

Digital inputs and outputs ground-free transformer coupled

Super low jitter design: < 1 ns in PLL mode (44,1 kHz, optical in)

32 bit memory transfer and 128 kB fast SRAM guarantee very low system load

Digital I/O: optical (TOSLINK), coaxial (phono), internal (CD-ROM/Sync-I/O)

Formats: SPDIF (Consumer, Professional), ADAT®
