Roland TD-50 DP (digital Upgrade Pack)

The TD-50DP Digital Upgrade Pack for Roland V-Drums: With the current TD-50 sound module and the PD-140DS Digital Snare and CY-18DR Digital Ride cymbals you can expand your existing V-Drums kit and give it maximum playability and incomparable expressiveness. Thanks to its advanced processor and newly developed Prismatic Sound Modelling technology, the TD-50 delivers the most impressive and versatile sound ever. In addition to traditional trigger inputs, the module also features completely new digital trigger inputs for high-speed communication with the multi-element sensors of the PD-140DS snare and CY-18DR Ride Pads. The deep editing features and flexible connectivity further expand your creative possibilities. The unique sound quality, response and expressiveness of the TD-50 Digital Upgrade Pack allow you to enjoy the latest Pro standard in electronic drums with your existing V-Drums kit.

Features:

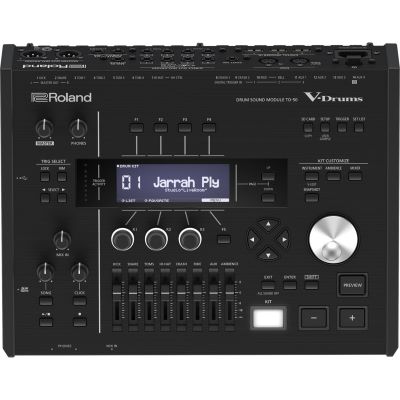

• TD-50 sound module with Prismatic Sound Modelling completely new sounds
• Newly developed 14" PD-140DS Digital Snare with high-resolution multi-sensor system for unparalleled dynamics and extremely differentiated position detection
• Cross sticks and other well-known playing techniques are possible without having to adjust the settings in the module beforehand.
• Thanks to the innovative multi-sensor system, the new 18" CY-18DR Digital Ride cymbal offers accurate position recognition and improved dynamics.
• No matter if hard or soft playing, whether at the edge, the surface or the bell, the sensors perceive every subtle nuance of your playing - and even the damping of the sound with the fingers is possible.
• Most advanced V-Edit system for personalizing drum and cymbal sounds
• Play with your own WAV samples via SD card
• USB 10-channel audio output for convenient multi-track recording with a single USB cable
• Balanced XLR stereo jacks as master outputs and 8 TRS direct outputs for professional applications
• Metronome with "Quiet Count" function, plus audio recording / playback for practice purposes
• Audio recorder for recording and exporting your performances
• Drum Kits: 100
• Instruments: More than 400
• Effect types: Pad Compressor: any Pad
• Pad Equalizer: any Pad
• Room type: 25 types
• Reverb type: 5 types
• stereo amplifier
• Multi-effects: 3 systems, 30 types, master compressor, master equalizer
• Import of user samples: Number of user samples: Maximum 500 (including factory pre-installed user samples)
• Sound length (total): 24 minutes in mono, 12 minutes in stereo
• File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
• Song Player (SD card): Audio file: WAV (44,1 kHz, 16/24 Bit), MP3
• Recorder: Recording method: Real time
• Maximum note memory: approx. 40,000 notes
• Export file format: WAV (44.1 kHz, 16 bit), SMF
• Display: Graphic LCD 256 x 80 dots / TRIGGER ACTIVITY INDICATOR (LED)
• Fader: 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
• External memory: SD card (SDHC supported)
• Connections: TRIGGER IN socket x 14: 1/4-inch TRS phone type (excluding use with digital pad)
• DIGITAL TRIGGER IN Port x 3: USB A type
• MASTER OUT (UNBALANCED) jacks (L/MONO, R): 1/4 inch phone type
• MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
• DIRECT OUT (BALANCED) socket x 8: 1/4-inch TRS telephone type, balanced
• PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
• MIX IN socket x 2: Stereo 1/4-inch phone type, Stereo Miniature phone type
• MIDI (IN, OUT/THRU) Connectors
• USB computer port: USB B type (USB Hi-Speed AUDIO/MIDI)
• FOOT SW socket: 1/4-inch TRS phone type
• AC IN socket
• Number of USB audio recording/reproducing channels: Sampling rate (original): 44.1 kHz
• Sampling rate (with sampling rate converter): 96 kHz, 48 kHz
• Recording: 10 channels
• Playback: 4 channels
• Power supply: AC 117 V, AC 220 V, AC 230 V, AC 230 V, AC 240 V
• Power consumption: 30 W
• Accessories: Quick Start, power cord
• W/D/H (mm): 330 mm x 255 mm x 118 mm
• height: 118 mm
• weight: 3,3 kg

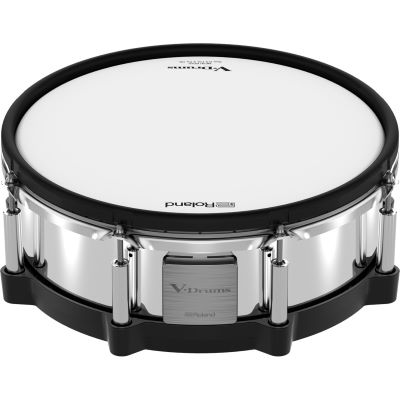

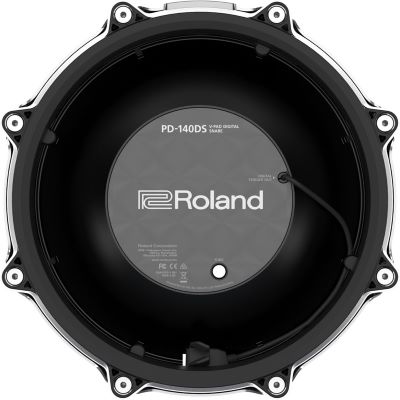

• PD-140DS Specifications
• Pad size: 14 inch
• Housing depth: 4.3 inch
• Tension rods: 8
• Head: 3-layer mesh head (floating middle layer structure)
• Available game methods (triggers)
• Head shot (high-resolution position detection, wide dynamic range)
• Rim shot (depth detection, wide dynamic range)
• Cross stick (automatic switching)
• Brush sweep
• Multi-part sensor system
• head sensor
• Position sensors x 3
• rim sensor
• Cross pin sensors x 3
• Built-in sampling processor
• Supported pavement size: 98 (width) x 1,060 (length) mm
• Thickness: 1 mm or less
• Connector: DIGITAL TRIGGER OUT Connector
• (compatible with Roland drum sound module with DIGITAL TRIGGER IN connector)
• Power supply: Supplied via the DIGITAL TRIGGER IN connector (DC 5 V)
• Current consumption: 90 mA
• Accessories: Operating instructions, connection cable, drum wrench
• W x D x H (mm): 380 x 380 x 160
• weight: 4,9 kg

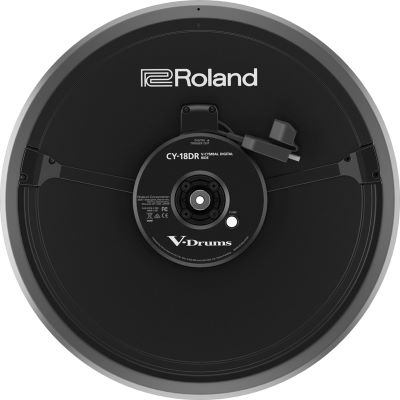

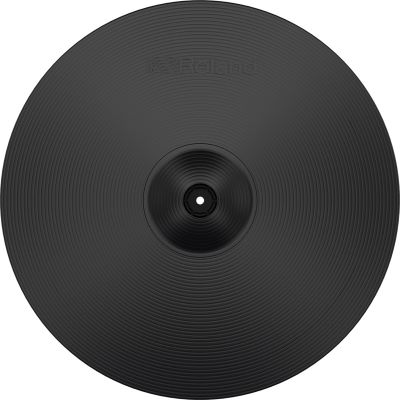

• CY-18DR Specifications
• Size: 18 inch
• Available game methods (triggers)
• Bow shot (high-resolution position detection, wide dynamic range)
• Bell shot (wide dynamic range)
• Edge shot (wide dynamic range)
• Choke (choke edge, bow touch)
• Multi-part sensor system
• Sheet sensor x 3, Bell sensor, Edge sensor, Touch sensor, Built-in scanning processor
• Connection: DIGITAL TRIGGER OUT connector (compatible with Roland drum sound module with DIGITAL TRIGGER IN connector)
• Power supply: supplied via the DIGITAL TRIGGER IN connector (DC 5 V)
• Current consumption: 90 mA
• Accessories: Operating instructions, wing nut, felt washer, plug, connecting cable, cable tie
• W x D x H (mm): 470 x 470 x 55
• weight: 2,1 kg

Specs:

• Color: Black
• USB Port: yes
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Line Outputs: 6
• Type: Drum Modul
• Theme: Drums and Percussion
