Roland TD-50X Drum Modul

The TD-50X from Roland is a professional V-Drums module for studio and also live use, thanks to the numerous connection options. The developed Prismatic Sound Modeling technology enables a unique acoustic playing experience with exceptional depth and top class details for authentic sounds. Using this technology, Roland ensures multi-layered sample recordings from the world's best studios with precise behavior modeling. From subtle ghost notes and precise articulations to the articulations to brute, intense playing, it sounds as natural as an acoustic drum kit.

Thanks to the multi-sensor detection of the PD140-DS snare, CY-18DR ride and VH-14D hi-hat pads, the module's signal processing is realized extremely quickly. This allows natural ride attacks via hand damping or arbitrary switching between head, rimshot and cross-stick on the snare. The experience is completed by the individual Insertable VH-14D, which offers high touch sensitivity, tonal variation and open/close resolution.

The flexible TD-50X lets you edit countless parameters down to the last detail. Tunings and attenuations can be changed in no time or allow you to create your own drum kit. own drum kit. You can choose between different shell sizes, skin types, cymbal characteristics and many other options. Thus the own kit can be can be freely placed in a room using PureAcoustic Ambience, including full control over the room type, reverberation, stereo width and many other parameters.

Also available are various effects such as equalizer, compressor, different multi-effects, reverb, room and overhead simulations. Furthermore, the drum computer is packed with numerous practice functions and units that will make even beginners shine. Whether you want to improve timing with the metronome, Completing exercises in coach mode or just feel like jamming to any music from your smartphone or laptop.

Features:

• Professional drum computer
• Supported formats: WAV & MP3
• Bit resolution: 16 & 24 bit
• Sample rate: 44 kHz (with converter 48 & 96 kHz possible)
• Effect processor (for pads and master channels)
• Drum kits: 100 (presets: approx. 50)
• Instruments: over 900
• Integrated 32-channel USB audio/MIDI interface
• Integrated practice functions

Technical data:

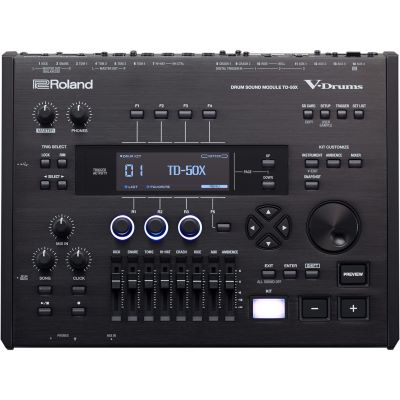

• Faders: KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE.
• Display: Graphic LCD (256 x 80 dots)

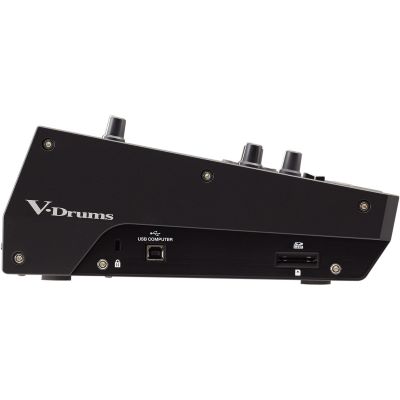

• USB computer: Type B (Hi-Speed AUDIO/MIDI)
• SD Card Slot: SDHC (External Memory)
• Footswitch Connector: 1x 6.3 mm Jack

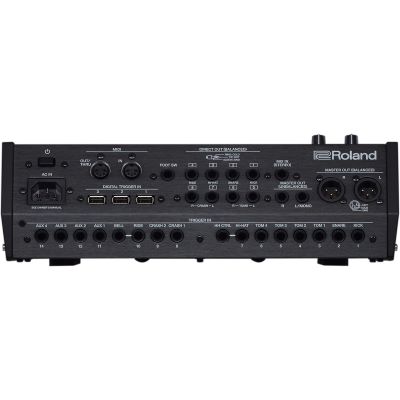

• TRIGGER Input: 14x 6.3 mm jack
• DIGITAL TRIGGER Input: 3x USB type A
• MIX Input: 1x 3.5 mm jack & 6.3 mm jack (stereo)
• Headphone Output: 1x 3.5 mm jack & 6.3 mm jack
• MASTER Output: 2x XLR (balanced)
• MASTER Output: 2x 6.3 mm jack (unbalanced)
• DIRECT Output: 8x 6.3 mm jack (balanced)
• MIDI input: 1x 5 pin DIN connector
• MIDI-Output/Thru: 1x 5 pin DIN connector
• power supply: AC 117 V, AC 220 V, AC 230 V, AC 240 V
• dimensions (L x W x H): 33,0 x 25,5 x 11,8 cm
• weight: 3,3 kg
• Color: black

Specs:

• Color: Black
• USB Port: yes
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Line Outputs: 8
• Type: Drum Computer
• Theme: Drums and Percussion

Instruction manual / Safety instructions:

• Manual (4.24 MB)
