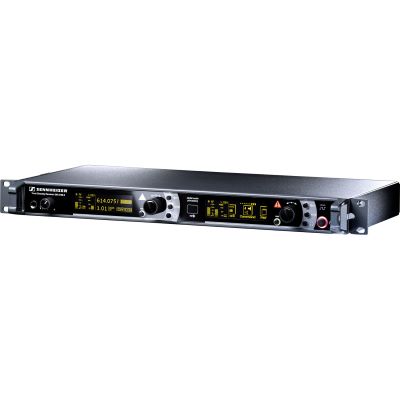

Sennheiser EM 3731 II P
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of Sennheiser
Sennheiser EM 3731 II P Product Details
High transmission reliability, excellent audio quality and ease of use, these are the hallmarks of the EM 3731 II P. The guarantee to the previous models, more than double the switching bandwidth of up to 184 MHz and a variety of connectivity options for maximum flexibility in everyday use. Thus, the receiver can, thanks to the built-in Ethernet port integrated into any network. The digital audio output for AES3/EBU allows a direct connection to digital mixing consoles. With the Sennheiser "Wireless Systems Manager" (WSM) software can be remotely monitored all operating states of the receiver and controlled. With WSM, it is now possible, the channel assignment at any time to redefine and to store the Scene. A new useful WSM feature for the Multi-channel operation. the intended recipient can be identified immediately allocated channel push of a button High-contrast display and intuitive user interface that features the top recipients will be complete.
included:
- EM 3731 P II
- 3 power cord (with plugs for EU, UK, U.S.)
- 2 BNC antenna loop-through cable (50 Ω)
- a BNC word clock thru cable (75 Ω)
- 4 feet
- 1 Ethernet cable RJ 45
- 2 antennas
- 1 user manual
- 1 CD-ROM Sennheiser Wireless Systems Manager (WSM)
- Table 1 Frequency
Features:
- Up to 184 MHz bandwidth
- AES3 digital audio output with external word clock synchronization
- Integrated antenna splitter for cascading up to 8 devices
- Intuitive user interface with OLED display
- network integration via Ethernet for WSM software on both Mac and PC
- DSP-based noise reduction system and HDX ™ expander
- transformer balanced audio outputs
- scan function
- tunability in 5 kHz steps
- Squelch setting always visible on the display
Specifications:
- RF frequency range: L: 470-638 MHz, N: 614 - 798 MHz, P: 776 - 960 MHz
- Switching bandwidth: up to 184 MHz
- receiving frequencies: 6 channel banks with up to 59 preset channels, 1 channel bank with up to 60 free in 5 kHz steps selectable frequencies
- Adjacent Channel Selectivity: 75 dB typ / + -400 kHz, typically 80 dB / -800 kHz +
- squelch (Squelch): 13 levels (0 ... 30 uV)
- intermodulation ratio:> = 80 dB
- antenna connector: 2 BNC connectors (50 Ω)
- Cascadable: 2 BNC connectors (50 Ω)
- Gain: 0 dB ± 0.5 dB (reference antenna inputs)
- Compander: Sennheiser HiDynplus DSP emulating latency <= 1.9 ms
- Audio Frequency response: 40 .. 20000 Hz
- rated deviation: + -40 kHz
- Peak deviation: + -56 kHz
- signal to noise ratio: ≥ 118 dB (A) (analogue AF OUT), 140dB (AES3 audio out)
- THD at 1kHz: ≤ 0.3%
- Output voltage: +18 dBu to -10 dBu in 1 dB steps (transformer balanced)
- audio connection: analogue: XLR-3 digital AES3: XLR-3 Sample Rates: 44.1, 48, 88.2, 96 kHz, 24 bit
- Booster: 12 V DC, 2 x 200 mA, short circuit protection
- Power supply: 100 - 240 VAC, 50/60 Hz
- Power consumption: max. 50VA, 20W (AC)
- Temperature range (storage): -10 ° C ... +55 ° C
- Temperature range (storage): -25 ° C ... 70 ° C
- Dimensions: 436 x 44 x 250 mm
- Weight: 4080 g
