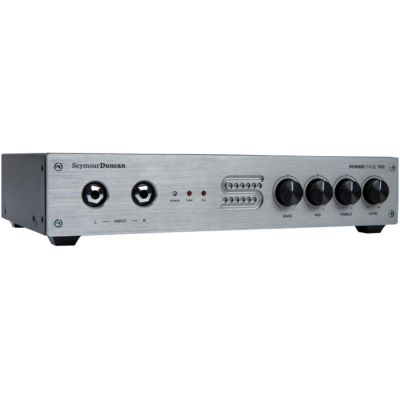

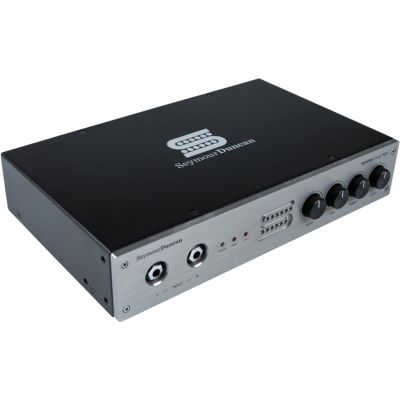

Seymour Duncan PowerStage 700

The PowerStage 700 is a revolutionary pedalboard amplifier designed for guitarists who rely on effect pedals, modellers and effect processors to create their sound. The PowerStage 700 is the answer, whether for live gigs or recording in the studio.

Features:

• Guitars Power Amplifier
• suitable for connection directly after effect units
• 700 Watt at 4 Ohm / 350 Watt at 8 Ohm
• suitable for use with guitar speakers with 4-16 ohms
• 3-band EQ
• 13 dB Boost/Cut in each frequency band
• Loudspeaker Simulation
• Controls for volume, bass, mid and treble
• rear power switch
• 2 front 6.3 mm mono jacks (L/R) Inputs

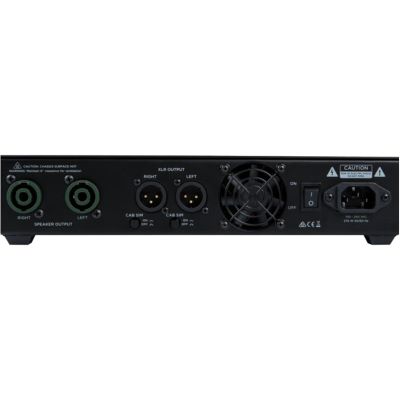

• 2 rear (L/R) SpeakOn/6.3 mm combo outputs
• 2 rear (L/R) XLR outputs
• 2 rear Cab Sim switches (one for each XLR output)
• rear cold-device socket
• status LED
• Temperature LED
• O.C. LED
• Output impedance 4-8 Ohm
• Input voltage 100-230V AC
• Dimensions (L x W x H) 292 mm x 176 mm x 56 mm
• Weight 2.860 g

Specs:

• Impedance: 4 Ω
• Impedance: 8 Ω
• Channels: 1
• Effect Processor: no
• Amplification: Solid State
• Headphone Out: no
• digital modelling: no
• Type: Amps
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (1.42 MB)
