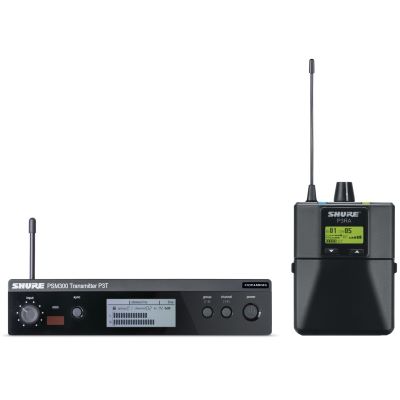

Shure PSM 300 Premium Stereo In-Ear Monitoring System T11

The P3TRA Wireless Personal Monitor System Set consists of a P3RA Pocket Receiver and a P3T Transmitter. With a weight of only 196g it is easy to carry and easy to hide.

Features:

• Set Type: Premium Receiver/Transmitter Set
• Number of bodypacks: 1
• Number of earphones: 0
• Weight: 196 g
• height x width x depth: 99.0 × 66.0 × 23.0 mm
• Lith ion battery life: 7 h
• Battery life Alkaline: 5 h
• Mirror frequency suppression: 90 dB
• RF sensitivity: 2.2 μV at 20dB SINAD dBm, for 12dV SINAD, typical
• Adjacent channel suppression: 60 dB
• Intermodulation attenuation: 50 dB
• Blocking: 60 dB
• LF output power: 80 mW
• Minimum load impedance: 16 Ω
• Pocket Receiver Diversity: No
• Removable antennas: No
• Transmission: Analog
• Scan Features: Channel Scan, Group Scan
• Batteries: AA, Shure Lithium Ion Battery
• Battery status: HH:MM (hours and minutes)
• Receiver housing: Metal
• Charging options: charging station
• Weight: 783 g
• height x width x depth: 43.0 × 198.0 × 172.0 mm
• Number of simultaneously usable systems per frequency band: 15
• Range (maximum): 100 m
• Interference suppression: 80 dB, typical
• Wave impedance: 50 Ω
• HF Mute: No
• Removable antennas: Yes
• Input impedance: 40000 Ω
• Transmission: Analog
• Sync Features: IR Sync
• Rack Mounting Accessories: Incl. Rack Mounting Accessories
• Included antenna: External 1/4-wave
• Type of power supply: External
• Function: Transmitter
• Transmitter displays: Backlit LC display
• Inputs (connections): 6.3 mm
• Outputs (connections): 6.3 mm
• Transmitter Housing: Metal

Specs:

• Type: InEar System
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1001.63 KB)

Downloads:

• Booklet (641.19 KB)
