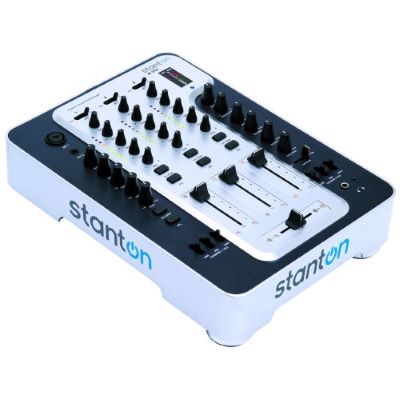

Stanton M 304

3-channel mixer with Penny & Giles crossfader and FX loop

Engineered with SST™ for ultra-low noise and zero bleed

3 Phono inputs, 6 Line inputs, plus Mic input with EQ

Gain knob with LED indicators on all three channels

3-band EQ on all channels, plus kill switches on channels 1 and 3

Cue section with PFL and Cue Pan

Balanced Master and Booth outputs

Description  Measurement

Frequency Response  20 Hz to 20 kHz +/- 1.3 dB

THD+N (Line) < 0.015% at 1 kHz

Signal to Noise Ratio (Ref to Max. Level) Dynamic Range 110 dB (main signal path)

Noise Floor

Line in to any output

< -92 dBV

Crosstalk*

Line to Phono Line to Line

Phono to Line

Fader Kill (Channel and Crossfader)

< -90 dB at 1 kHz

< -90 dB at 1 kHz

< -90 dB at 1 kHz

Max Output Level:

(Unity Gain- Line Input)  +18 dBV Unbalanced

+24 dBu Balanced Outputs

EQ:

Mic

Channel

3 band +10 dB (Baxandall Type)

Hi +9, -45 dB, Kill: -45 dB

Mid +9, -35 dB, Kill: -35 dB

Low +9, -55 dB, Kill: -55 dB

How to read the SST™ Specs

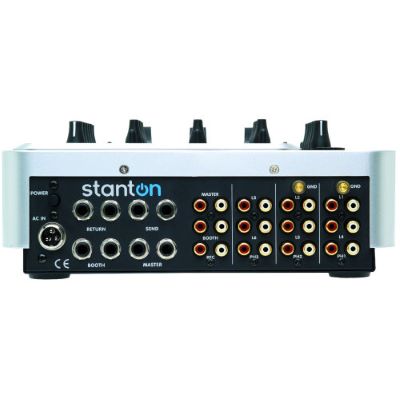

Inputs/Outputs

Line Inputs  x12 (RCA) x6 Line inputs, -10 dBV /10 k Ohm

Phono Inputs x6 (RCA), x3 Phono Inputs -50 dBV / -10 dBV

47 k Ohm / >10 kOhm

Mic Input 1(1/4")/ 1 XLR -50 dBV /4.7 k Ohm (combo jack)

Master Outputs x2 (1/4") Balanced/ 1 x 2 (RCA) unbalanced,

+4 dBu balanced / -10 dBV unbalanced

Booth Outputs x2 (1/4") balanced /1 x 2 (RCA) unbalanced

-2 dBu balanced/ -10 dBV unbalanced

Record Output 1 x 2 (RCA) unbalanced / -10 dBV

Headphone Output x1 (1/4 inch), x1 (1/8 inch) greater than 32 Ohm load

Send Output X2 _ inch unbalanced / -10 dBV

Return Input X2 _ inch unbalanced / -10 dBV / 10 k Ohm

Dimensions (LxWxD) 13.8 in. x 10.4 in. x 5.9 in. (35 cm. x 26.5 cm. x 15 cm.) 5U rack spaces

Weight 12.1 lbs (5.5 kg)
