Steinberg UR242 USB Audio Interface B-Ware Product Details
Why B-Ware? has slight signs of wear and tear and original packaging is incomplete

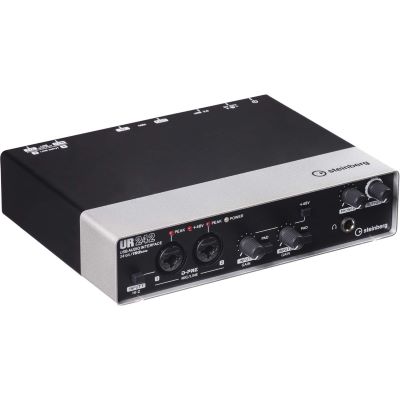

The UR242 is a mobile production solution that can be used with any traditional DAW solution. It is equipped with DSP effects, excellent sounding converters and professional quality preamps. Resolution and sampling rate are 24-bit and 192 kHz. The full metal housing is specially designed for mobile use. The Cubase AI recording and production software is included (download).
Features:
- 4 x 2 USB 2.0 audio interface with 2 x D-PREs, 192 kHz support and MIDI I/O
- High-quality converters with a maximum sampling rate of 192 kHz and 24-bit resolution
- Two Class-A D-PRE Mic Preamps from Yamaha
- dspMixFX Software for Latency Free Monitoring with Effects
- Auto-Setup, user-defined view and more extra features with Cubase
- Basic FX Suite with additional VST 3 plug-in versions of Yamaha's premium onboard DSP effects (Sweet Spot Morphing Channel Strip, REV-X and Guitar Amp Classics)
- Robust all-metal housing from Yamaha
- Compatible with all recording/music production software solutions supporting ASIO, Core Audio or WDM standards
- Can also be used in conjunction with Cubasis or other iOS Audio Apps with iPad
- MIDI input and output
- With the Loopback function, all incoming audio signals are mixed with the playback signal from Cubase or another DAW and can be streamed to the Internet.
- Includes: external power supply, Cubase AI with features for composition, recording, editing and mixing
- Dimensions: 198 x 47 x 159 mm
- Weight: 1,3 kg (without power supply)

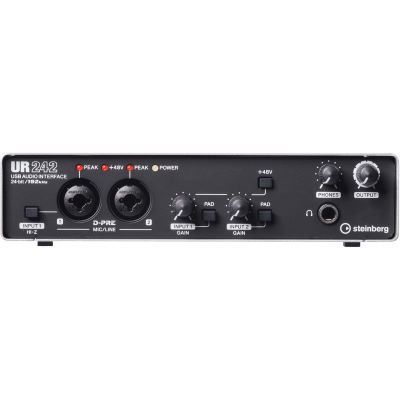

Front view of connections/control elements (from left to right):
- Hi-Z switch for input 1
- 2 XLR/jack combo jacks for Mic/Hi-Z
- Peak LED for input 1/2
- +48 V phantom power Display for input 1/2
- USB Power LED
- Gain control for input 1
- Pad switch for input 1 and 2
- Gain control for input 2
- Switch for +48V phantom power for input 1/2
- Volume control for headphone output
- Volume control for main out
- Jack headphone output

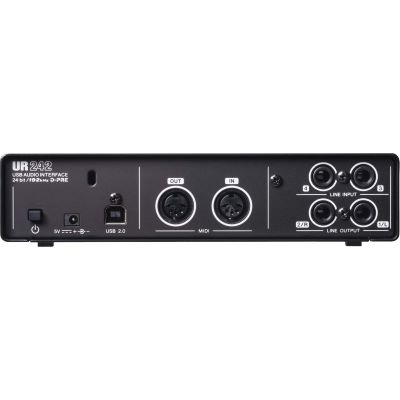

Rear view of connections/control elements (from left to right):
- Standby/On switch
- Connection for power supply unit
- USB 2.0 port
- MIDI output
- MIDI input
- 2 analog line inputs (jack)
- Main-Out, 2 analog jacks Outputs
System requirements (minimal):
- MAC OS X: 10.7/10.8/10.9/10.10, Intel dual core CPU
- Windows: 7 SP1/8/8.1, Intel or AMD dual core CPU
- RAM: 2 GB
- Free hard disk space: 2 GB
- Drive: CD-ROM
- USB: 2.0/3.0 port for connecting the UR hardware
- CC Mode: requires Apple iPad Camera Connection Kit/Lightning to USB Camera Adapter
- iOS: at least iOS 6 and an iPad 2 or higher
- Internet connection: required for installation, activation, account setup and registration
- Cubase AI: Download 500 MB
Specs:
- Type: Audio Interface
- Color: Black
- Rack Mountable: no
- Line Inputs: 4
- Line Outputs: 2
- Mic Inputs: 2
- Phono Inputs: 0
- Instrument Inputs: 1
- digital Output: none
- digital Input: none
- Headphone Out: yes
- MIDI Inputs: 1 Port
- MIDI Outputs: 1 Port
- Host Port: USB
- Number of headphone outputs: 1
- Theme: Recording and Studio
