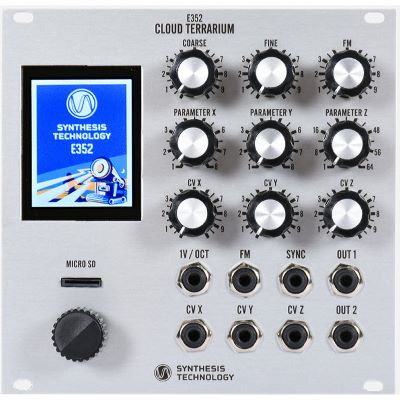

Synthesis Technology E352 Cloud Terrarium

The digital oscillator E352 Cloud Terrarium combines the synthesis algorithms of E340 Cloud Generator and E350 Morphing Terrarium in one module. Compared to the classics, the new circuit features a multitude of improvements, for instance a more modern processor, waveforms with higher resolution, wavetable import options and a color TFT display. The Morphing Terrarium algorithms are specialized in wavetable synthesis. All in all, 192 basic waveforms are available. Via a microSD card slot, users can import their own wavetables. While working with its cloud algorithms, the E352 combines eight waveforms / wavetables to create sound. A LFO mode allows users to employ the module as a complex CV source. The Cloud Terrarium's results range from soft to harsh, sometimes metallic sounds. Supersaw rave pads and gigantic walls of sound can be produced easily as well.

Features:

• Load custom wavetables via microSD card.
• Color 240 x 320 TFT LCD display
• Optical Grayhill Mil-Spec encoder for quick and easy data entry
• 16-bit wavetables (vs. 8-bit on the E350) for 5x lower noise and THD
• Includes all 192 original wavetables from the E350
• LFO mode, variable glitch energy and other additional features
• Module width: 26HP
• Depth behind front panel (with power cord connected): 1.65 inches (41.9mm)
• Power supply: +12V @65ma, -12V @24ma
• CV In range: -5V to +5V, 12KHz
• SYNC threshold: +0.65V nominal, positive slope triggers
• Wavetable format: 256 samples, 16-bit unsigned integer, .WAV
• Audio output level: 10V pk-pk
• Audio sample rate: 96KHz, 32-bit DSP engine, 16-bit output

Specs:

• Type: Module
• Theme: Recording and Studio
