Tascam HD-R1
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of Tascam
Tascam HD-R1 Product Details

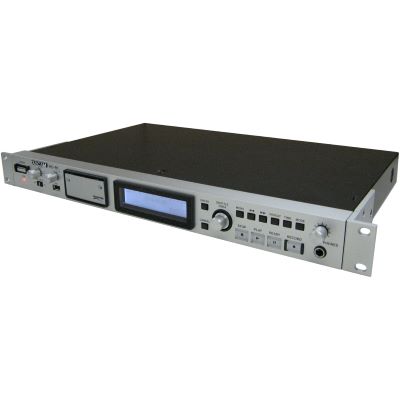

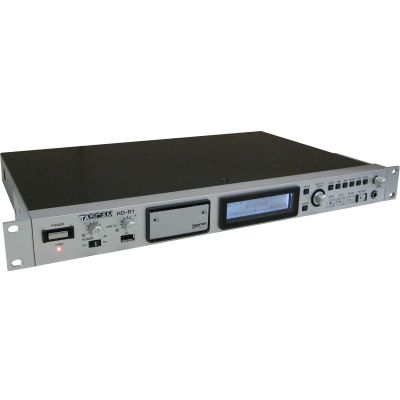

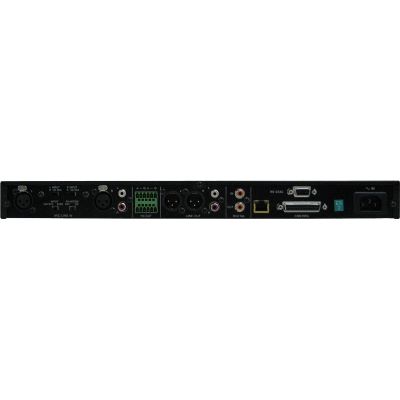

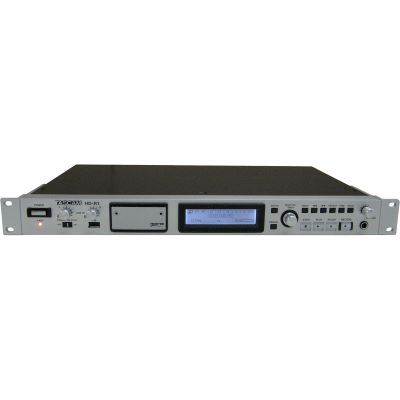

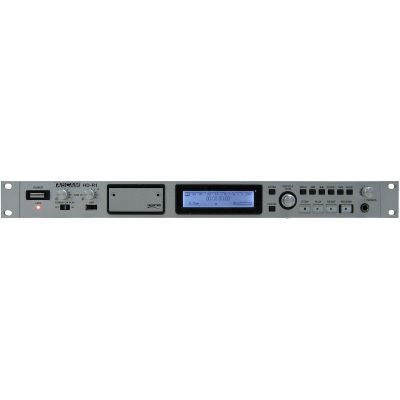

The HD-R1 is a two-channel, single rack-mount recording and playback device created with the sound contractor in mind. Utilizing the highly reliable CompactFlash card, the HD-R1 records PCM files at up to 96 kHz or MP3 files at 44.1/48 kHz both with 16/24-bit resolution. File transfer can be accomplished via Ethernet, USB, or a card reader. The ability to control the unit remotely is provided via RS-232, Parallel, and RJ45 100-Mbit Ethernet.
Features:
- 1-U rack-mount solid-state audio recorder
- Uses popular, secure CompactFlash card as recording media
- USB host interface for USB flash cards
- Audio data formats: PCM (16-/24-bit), MP3
- Samplig rates supported (PCM: 44.1/48/88.2/96 kHz / MP3: 44,1/48 kHz)
- XLR balanced mic/line I/O with switchable 20-dB PAD
- Phantom power (switchable on rear panel, front LED indicator)
- Euroblock terminal I/O
- Unbalanced RCA I/O
- Rotary analogue input level controls on front panel
- SPDIF Digital I/O (coaxial and optical)
- RJ-45 Ethernet interface (100-Mbit/s) for file transfer and control
- RS-232 interface for control
- D-sub 25-pin parallel remote control interface
- Direct Play via parallel interface
- Power-on play (start playback when power comes up)
- Headphones jack with level control on front panel
- Input Through and Auto Fade functions
- Input monitoring/mixing of live stereo input along with playback
- Play modes: Program, Folder, Shuffle, Interval, and more
- Pre-record buffer (up to 20 seconds at 44.1 kHz)
- Available as an option: RC-SS20 Direct Play Controller for instant access to 16 tracks, announcements or effects
Specs:
- Type: Mobile Audio Recorder
- Theme: Recording and Studio
