Tascam LA-40 MKII
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of Tascam
Tascam LA-40 MKII Product Details
Tascam LA-40MKII

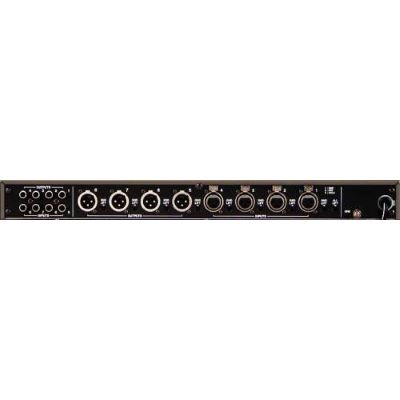

The Tascam LA-40 MKII has been primarily designed to provide matching capabilities between professional equipment and semi-professional or consumer equipment. It consists of four RCA inputs and outputs (-10 dBV, unbalanced) as well as four XLR inputs and outputs (+4 dBm/-20 dBm, balanced) which enable the user to connect for instance four tracks of a multitrack recorders (ins and outs) to a balanced mixer ensuring optimum level and impedance matching.

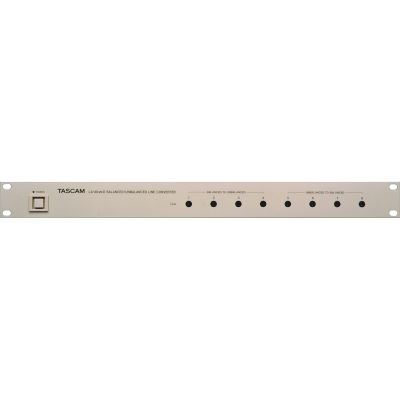

Switches on the bottom panel allow to select a nominal level of +4 dBm or -20 dBm for each channel and ±6 dB trim pots on the front panel make perfect level matching easy. The LA-40 MKII has also ground lift switches for each channel and a combined master switch to avoid ground loops.
4 unbalanced RCA inputs and outputs
4 balanced XLR inputs and outputs
XLR nominal level selectable between +4 dBm and -20 dBm
Trim pots for each channel on front panel (±6 dB)
*
Ground lift switches for each channel and master switch
Channels 5-8 can act as distribution amplifier
internal power supply, no adapter needed
1 U rack-mountable
The Tascam LA-40 MKII has been primarily designed to provide matching capabilities between professional equipment and semi-professional or consumer equipment. It consists of four RCA inputs and outputs (-10 dBV, unbalanced) as well as four XLR inputs and outputs (+4 dBm/-20 dBm, balanced) which enable the user to connect for instance four tracks of a multitrack recorders (ins and outs) to a balanced mixer ensuring optimum level and impedance matching.
Switches on the bottom panel allow to select a nominal level of +4 dBm or -20 dBm for each channel and ±6 dB trim pots on the front panel make perfect level matching easy. The LA-40 MKII has also ground lift switches for each channel and a combined master switch to avoid ground loops.
4 unbalanced RCA inputs and outputs
4 balanced XLR inputs and outputs
XLR nominal level selectable between +4 dBm and -20 dBm
Trim pots for each channel on front panel (±6 dB)
*
Ground lift switches for each channel and master switch
Channels 5-8 can act as distribution amplifier
internal power supply, no adapter needed
1 U rack-mountable
