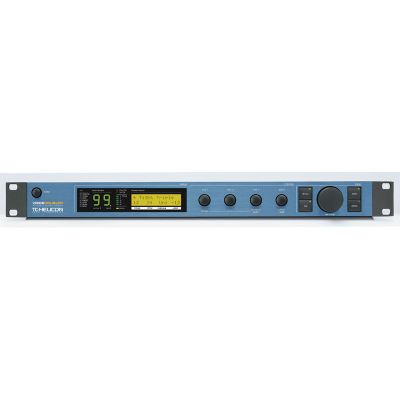

TC-Helicon Voice Doubler

We are no longer offering this product.

You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.

Item details

Brand:
Model:
159384
Shipping Weight:
2.70 kg
Shipped via:
Package
Unit:
piece

Secure Shopping:


  • Trusted Shops certified
  • Fast delivery times
  • 1 month right of withdrawal
  • Buyer protection
  • Secure SSL data encryption

Share with friends:

Description

TC-Helicon Voice Doubler Product Details

Digital Inputs and Outputs:

  • Connectors: RCA Phono (S/PDIF)
  • Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
  • Sample Rates: 44.1 kHz, 48 kHz
  • Frequency Response DIO: DC to 23.9 kHz ± 0.01 dB @ 48 kHz

Analog Inputs:

  • Connectors: XLR, balanced
  • Impedance, Bal / Unbal: 21 kOhm / 13 kOhm
  • Max. Input Level: +24 dBu
  • Min. Input Level for 0 dBFS: 0 dBu
  • Sensitivity: @ 12 dB headroom: -12 dBu to +12 dBu
  • A to D Conversion: 24 bit, 128 x oversampling bitstream
  • A to D Delay: 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz
  • Dynamic Range: 100 dB typ, 20 Hz - 20 kHz
  • THD: typ < 92 dB (0,0025 %) @ 1 kHz
  • Frequency Response: +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
  • Crosstalk: <-95 dB, 20 Hz to 20 kHz

Analog Outputs:

  • Connectors: XLR, balanced
  • Impedance Balanced / Unbalanced: 40 Ohm
  • Max. Output Level: +20 dBu (balanced)
  • Output Ranges: Balanced: 20/14/8/2 dBu
  • Unbalanced: 14/8/2 dBu
  • D to A Conversion: 24 bit, 128 x oversampling bitstream
  • D to A Delay: 0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz
  • Dynamic Range: 104 dB typ, 20 Hz to 20 kHz
  • THD: typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
  • Frequency Response: +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz
  • Crosstalk: <-100 dB, 20 Hz to 20 kHz
  • EMC: EN 55103-1 and EN 55103-2
  • Complies with: FCC part 15, Class B, CISPR 22, Class B
  • Safety: IEC 65, EN 60065, UL6500 and CSA E60065
  • Certified to: CSA FILE #LR108093

Environment:

  • Operating Temperature: 32° F to 122° F (0° C to 50° C)
  • Storage Temperature: -22° F to 167° F (-30° C to 70° C)
  • Humidity: Max. 90% non-condensing

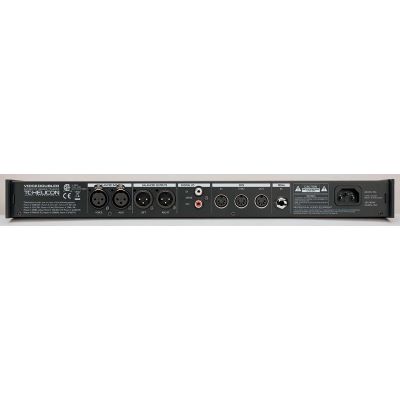

Control Interface:

  • MIDI: In/Out/Thru: 5 Pin DIN
  • Pedal: 1/4" phone jack

General:

  • Finish: Anodized aluminum front Plated and painted steel chassis
  • Dimensions: 19" x 1.75" x 8.2" (483 x 44 x 195 mm) Weight: 4.1 lb. (1.85 kg)
  • Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
  • Power Consumption: <15 W
