TerraTec Phase X 24 FW Firewire

The new PHASE x24 FW

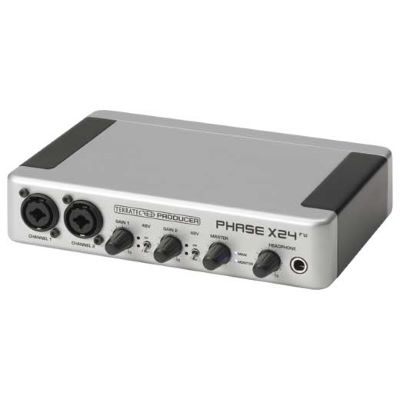

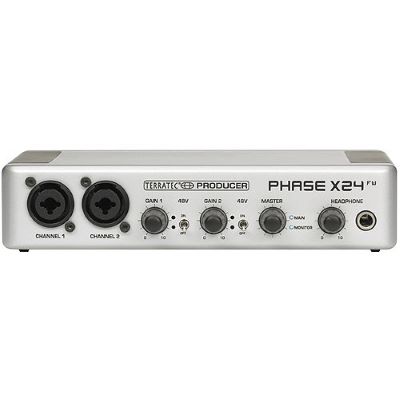

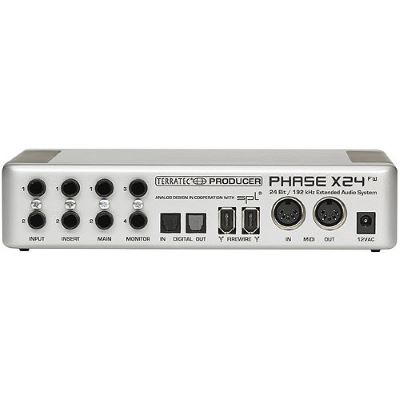

TerraTec Producer is now shipping the PHASE X24 FW, the professional version of PHASE 24 FW. Featuring a range of connection options and sophisticated FireWire™ technology housed in a stand-alone aluminum chassis, this device sports two analog inputs (line, hi-Z or mic in with 48V phantom power), four outputs, digital I/O, MIDI I/O, insert jacks and gain knobs. The package includes Steinberg´s Cubase LE workstation software with 48 audio tracks, WaveLab lite 2.5 and Native Instruments Traktor DJ software. The combination of hard- and software is the perfect entry into the world of computer based recording.

TerraTec Producer´s PHASE X24 FW comes ready-to-go with Steinberg´s Cubase LE for Mac and PC, the PC version of WaveLab lite and NI´s Traktor DJ for PC.

Cubase LE is based on Steinbergs Cubase SX technology featuring 48 audio tracks, VST plugIns and full VST support. Cubase LE can easily be upgraded to an even more powerful version like Cubase SX3. In addition, Cubase LE is VST system link and ReWire 2 compatible.

Key features:

FireWire™ audio system

2 microphone/instrument inputs (XLR combo jacks)

Analog design developed jointly with SPL®

Individually assignable 48V phantom power

2 gain knobs

2 analog inputs (balanced 6.3 mm (1/4") jacks)

2 inserts (stereo 6.3 mm (1/4") jacks)

4 analog outputs (balanced 6.3 mm (1/4") jacks)

1 optical digital I/O

1 MIDI I/O

Digital hardware mixer

24-bit / 192-kHz analog signal processing

24-bit / 96-kHz digital signal processing

109 dB signal-to-noise ratio, analog inputs (A-weighted)

111 dB signal-to-noise ratio, analog outputs (A-weighted)
