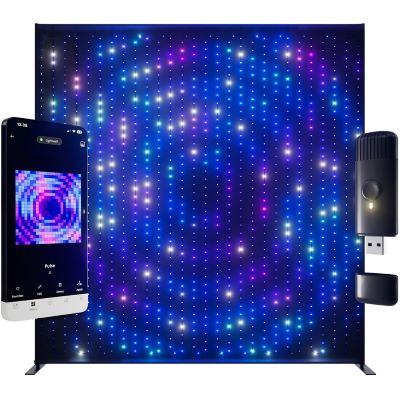

TWINKLY Lightwall Mobiler LED-Vorhang with App-Steuerung und Alu-Gestell

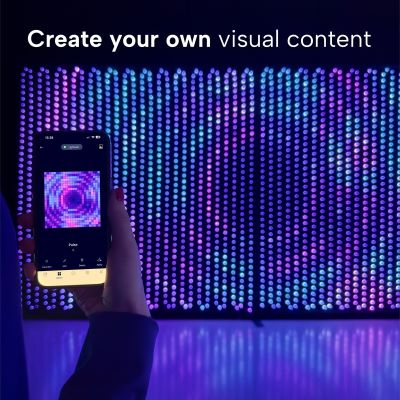

Individual visual design - The Twinkly Lightwall is an innovative lighting solution that has been specially developed for the dynamic and audio-visual design of stages and rooms. Thanks to the ability to adjust the lighting in real time to music and ambient sounds, you can create individual, animated visuals with the Lightwall. You can choose from a variety of pre-installed effects or create and customize your own visual content via an intuitive mobile app.

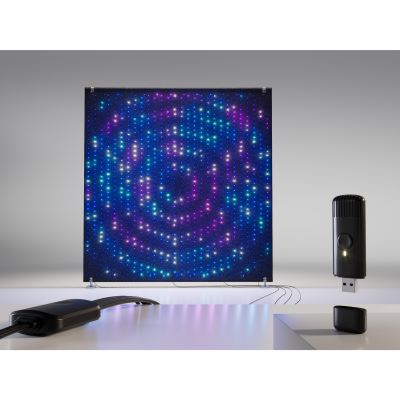

Synchronization with music - A core feature of the Twinkly Lightwall is its ability to synchronize to music. Using a USB-powered sound sensor, the Lightwall can recognize and interpret music or sounds in its environment and adjust its lighting accordingly. This is done with precise BPM detection and an intelligent microphone, which also makes the Lightwall interesting for live performances and dynamic shows.

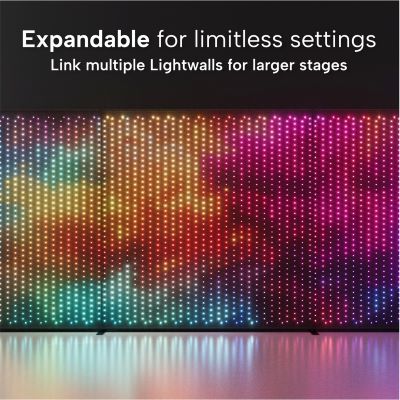

Modularity and scalability - The Lightwall is characterized by its modularity and scalability: Multiple units can easily be connected together to create a large digital screen, making it ideal for use in larger rooms and on stages. These extended configurations can also be combined with traditional stage lighting to create multi-layered and impressive installations.

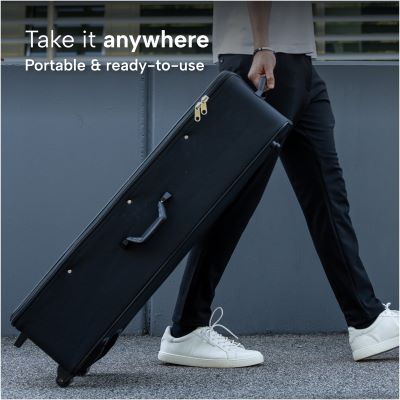

Practical and mobile - Twinkly Lightwall has been specially designed for mobile applications: It is therefore ideal for events and performances where quick set-up and dismantling is required. The supplied black aluminum frame guarantees a light and stable set-up, while additional water weights ensure a secure stand. The entire setup can be completed in around ten minutes, making the Lightwall a practical companion for on the go. All the necessary components - including controller and Twinkly Music dongle - are included and supplied in a ready-to-go trolley.

Robustness and weather resistance - In addition, the Lightwall is splash-proof and robustly constructed. These features make the Twinkly Lightwall a versatile and powerful solution for creative lighting concepts that emphasize both aesthetics and functionality.

Features:

• 1120 powerful LEDs 3in1 TCL RGB
• LEDs can be controlled individually
• Color animations
• Controllable via Twinkly app
• Multiple curtains can be easily combined and operated synchronously
• The item is supplied with a practical transport bag
• Flicker-free freq:
• Easy to set up
• The item is delivered disassembled
• Space-saving storage
• With bracket for setting up on the floor
• 2 sturdy carrying handles
• Trolley function
• 2 plastic feet
• B1 flame retardant
• The device is cooled via passive convection cooling
• Bluetooth: range of up to 10m
• Compatible with Android, IOS,

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• 24 V DC
• Total connected load: 35 W
• Protection class: IP44
• Protection class: SK II
• Power connection: Fixed power connection cable with contour plug (M) CEE 7/17
• Cable construction: 2 x 1.0 mm² H05RN-F
• WLAN: Standard: IEEE 802.11 b/g/n
• Lamp type: LED lamp
• LED: 1120 x 3in1 TCL RGB
• Network connection: Protocol: Ethernet TCP/IP via 1x RJ-45 (W) built-in version
• Cooling: Passive convection cooling
• Control: Twinkly App
• Bluetooth: Version: 4.2 + BR/EDR
• Projection: Flicker-free
• Range: Bluetooth: up to 10m
• Carrier frequency: 2.4 GHz
• Setup: Easy to set up; space-saving storage
• Installation/mounting: Stand
• Image: Max. 28x40 px
• Pixel pitch 6.5 mm; max. 28x40 px
• Pixel pitch 9 mm
• Service life: 30000 h
• Housing color: Black
• Mounting system: 2x bracket for positioning on the floor
• Status LED: Power, standby
• Carrying handle: 2 pieces
• Transport aid: Trolley function
• 2 x plastic feet
• Material: Polyester; metal, lacquered
• Base plate: 8 cm x 45 cm x 9 mm
• Transport dimensions: 36 cm x 23 cm x 93 cm
• Display: 2.6 m x 1.5 cm x 2.7 m
• Width: 2.6 m
• Depth: 45 cm
• Height: 2.7 m
• Weight: 15.6 kg
• Operating system: Android, IOS,
• bag
• Weight: 5.0 kg
• Curtain
• Cable length: Approx. 3 m
• Weight: 10.6 kg
• External power supply unit
• Cable length: Approx. 1.5 m
• Controller
• Cable length: Approx. 0.96 m
• Legal specifications
• Special product: Not intended for room lighting in households
• Intended use: Lighting for show effects

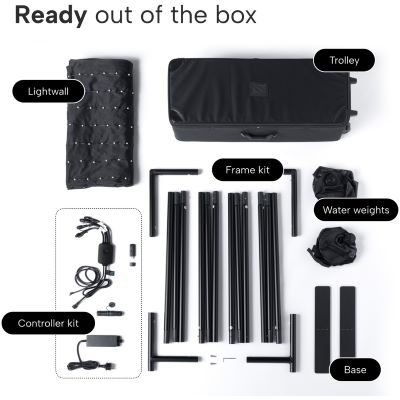

Scope of delivery:

• 1 x bag
• 1 x Curtain
• 1 x External power supply unit
• 1 x Controller
• 1 x Dongle
• 1 x stand
• 2 x base
• 2 x balance weights
• 2 x screws
• 1 x instruction manual

Specs:

• Steuerung DMX: no
• Light effect type: LED curtain
• Light source: LED RGB
• Montageart: has to be hanged / mounted
• Type: Lighting Effect
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (11.08 MB)
