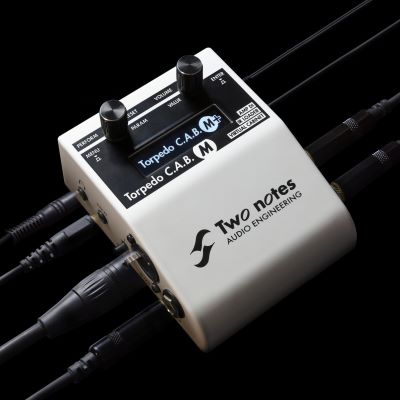

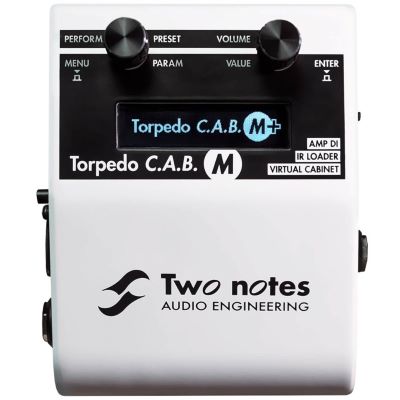

Two Notes Torpedo C.A.B. M+

Torpedo C.A.B. M+ is a powerful pedal platform that provides the ideal foundation for creating incredible sounds without amps or cabinets. The Torpedo C.A.B. M+ offers a studio-grade, ampless rig with 32 premium DynIR Virtual Cabinets, each equipped with a choice of 12 room emulations and 8 microphones. Building on the success of the highly acclaimed Torpedo C.A.B. M, the C.A.B. M+ includes a stunning clean preamp, sophisticated power amps, enhancers, tuners, advanced reverbs and noise gate.

Features:

• Two Notes C.A.B. M+ Speaker Simulation Pedal.
• The perfect way to bypass your guitar or bass amp cabinets without losing the sound's spatial dimension
• Impulse response based
• Pedal includes 32 guitar cabinets, 8 power amps, 8 microphones and 12 rooms
• Studio effects including enhancer, reverb, noise gate and 5-band semi-parametric EQ
• 6-band EQ and custom mode with adjustable high-pass filter and 5-band semi-parametric EQ

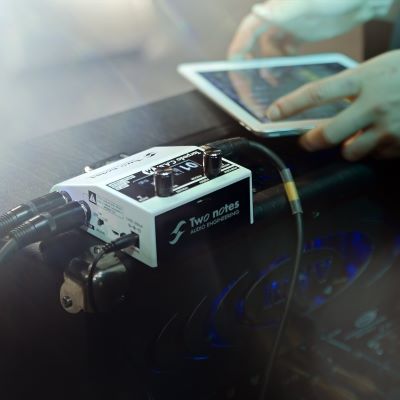

• Access to more than 250 virtual cabinets via Torpedo Remote software
• Torpedo Capture software allows you to create your own cabinet and microphone models
• Audio is processed in 24-bit/96kHz digital resolution

Technical specifications:

• AD/DA converter: 24 bits / 96 kHz
• Bandwidth (-1dB): 30 - 19 kHz
• Signal to noise ratio: 91 dB
• Internal processing: 32-bit floating point
• Latency: 2.2ms (line input to line output)

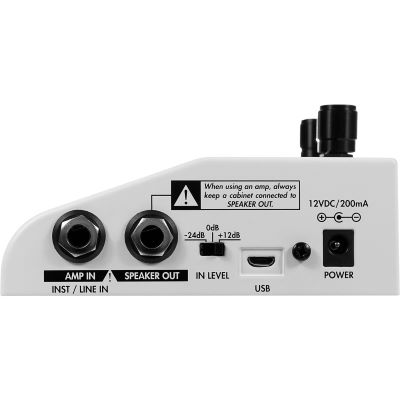

• Inputs: 1/4″ jack balanced (TRS); 1/8″ (3.5mm) TRS jack; USB 2.0 Micro-B

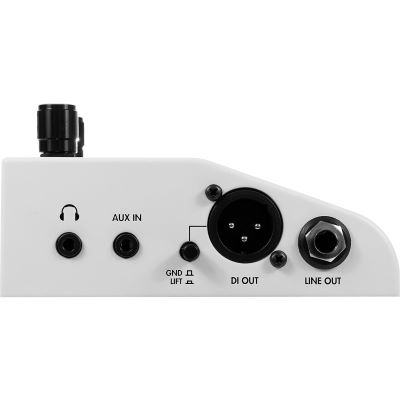

• Outputs: speaker output 1/4″ jack balanced (TS); DI output XLR balanced (max level 10dBu; impedance 300 ohms); line output 1/4″ jack balanced (TRS) (max level 10dBu; impedance 300 ohms); headphone output 1/8″ mini jack (TRS)
• Input voltage: 12V DC
• Power consumption: approx. 2W
• Dimensions (WxLxH): 12.1cm x 10cm x 6cm
• Weight: 450 g

Specs:

• Color: Multi-Colored
• Accessoires Type: Premp
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (1.76 MB)
