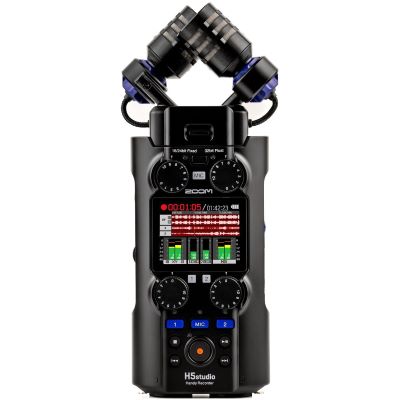

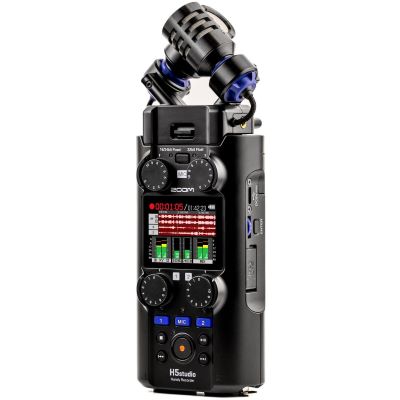

Zoom H5 Studio

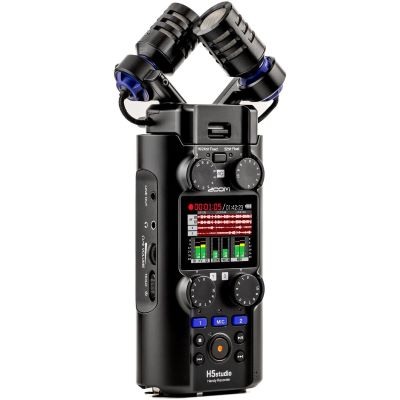

Zoom H5 Studio - The mobile recorder for professional audio recordings in 32-bit float

The Zoom H5 Studio is a powerful, portable audio recorder designed specifically for modern production needs. With its high-quality XY microphone, professional preamps from the Zoom F series, 32-bit float recording and six simultaneous tracks, it offers features usually reserved for much more expensive devices. Perfect for podcasts, music productions, interviews, video dubbing, field recording and content creation at the highest level.

The H5 Studio enables audio recordings in breathtaking quality with a maximum sound pressure level of 140 dB. Thanks to its adaptive capsule system, color LCD and intelligent features such as wireless control, high-pass filter, mono mode or A-B playback, this recorder becomes an all-round tool for any creative task.

Zoom - innovation for creatives

Zoom is known for its reliable and versatile audio solutions. The H5 Studio follows in this tradition and adds crucial features such as 32-bit float technology, look-ahead limiter, timecode synchronization and a barrier-free operating concept. This combination makes the recorder the first choice for both professionals and ambitious beginners.

The combination of robust mobility and professional signal processing is particularly outstanding. Thanks to its interchangeable capsules, versatile connection options and USB audio interface function, the H5 Studio can be integrated into almost any production environment - from home studios to outdoor documentaries.

Conclusion: Zoom H5 Studio - The compact all-rounder for studio-quality audio

The Zoom H5 Studio combines state-of-the-art technology in a handy format. Its 32-bit float recording offers maximum dynamics without the risk of clipping. At the same time, the intuitive operation - supported by the large color display, dedicated controls and barrier-free voice guidance - enables workflow-oriented use in any situation.

With six simultaneous tracks, USB interface function, interchangeable capsule system and comprehensive connection options, the H5 Studio meets the highest requirements for mobile audio production - ideal for professional content creators, musicians, podcasters and video producers.

Features:

• 32-bit float and 16/24-bit WAV recording for maximum dynamics without clipping
• Integrated Zoom F-Series preamps with -127 dBu input noise
• Up to six simultaneous recording tracks (four individual tracks + stereo mix)
• Look-ahead limiter to avoid clipping in real time

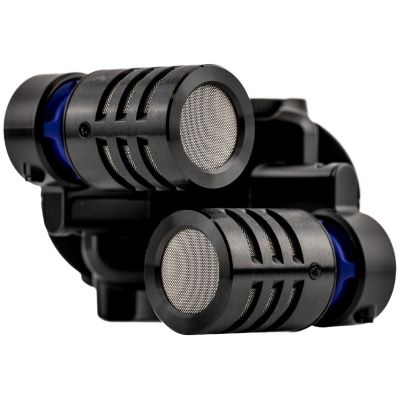

• High-end XY microphone (XYH-5s) with 140 dB SPL, unidirectional
• Capsule system 3.0 - compatible with SSH-6e and EXH-6e

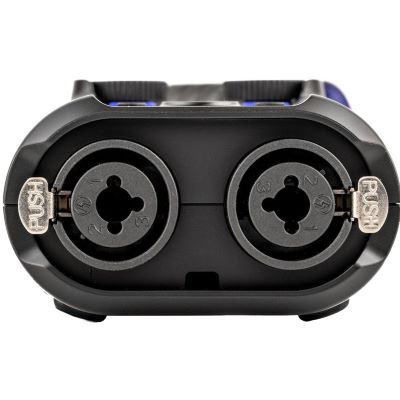

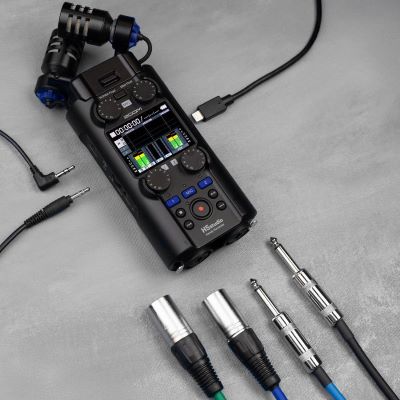

• 2 XLR/TRS combo jacks with +48V phantom power and line level
• 3.5 mm stereo line-in with plug-in power

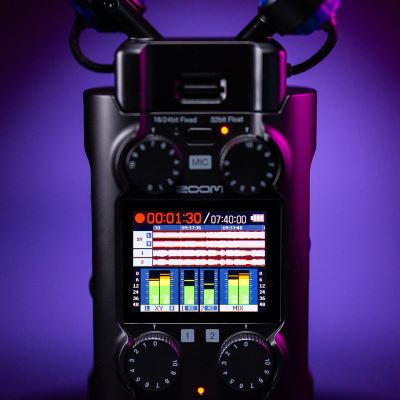

• Color LCD (2", 320x240) with real-time waveform display
• Variable playback mode: 0.5 to 1.5 times speed, A-B playback
• High-pass filter to suppress low-frequency noise
• Mono mode for interviews, vocals or voice recordings
• Normalize and export directly in the device (16/24 bit WAV)
• Internal loudspeaker with 250 mW for direct control
• Headphone output with its own level control

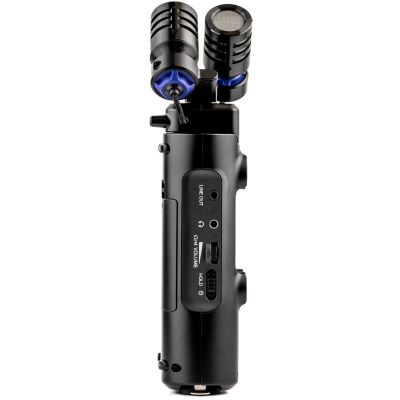

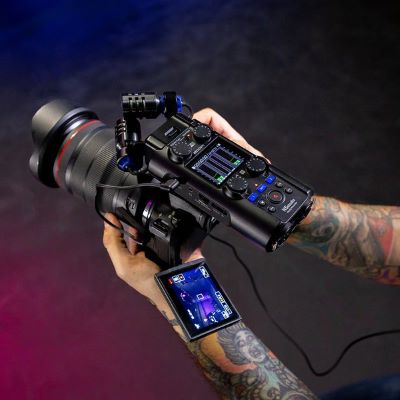

• LINE OUT (3.5 mm) for connection to DSLR or other recorder

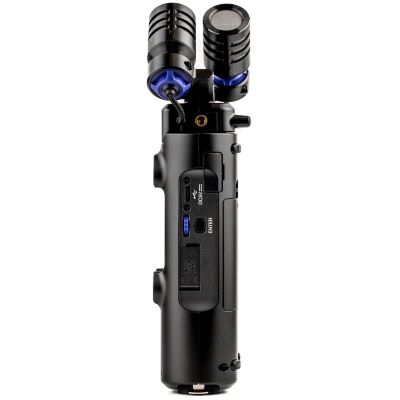

• 32-bit float USB audio interface (4 in / 2 out) for Mac/PC/iOS/Android
• Timecode compatibility via optional TCA-1 or wirelessly via UltraSync BLUE*
• Wireless control via Zoom Handy Control & Sync app via BTA-1 adapter*
• Accessible voice guidance for blind/visually impaired users
• microSDHC/SDXC card support up to 2 TB (not included)

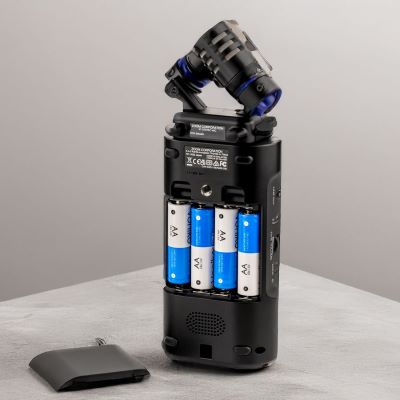

• Up to 15 hours battery life with 4 AA batteries
• USB bus power and mains adapter operation possible (AD-17 optional)
• Recording modes: WAV (BWF/iXML), mono/stereo, 44.1/48/96/192 kHz
• Recorder housing made of robust plastic with ergonomic design
• Compatible languages: EN, DE, FR, ES, IT, JP, ZH
• Dimensions: 86 × 206 × 54.6 mm
• Weight (with batteries): 410 g

Specs:

• Color: Black
• Line Inputs: 2
• Line Outputs: 1
• Mic Inputs: 2
• digital Input: none
• digital Output: none
• Fader: 0
• Effect Processor: yes
• Set Offer: no
• Headphone Out: yes
• Rack Mountable: no
• Type: Audio Converter
• Theme: Recording and Studio
