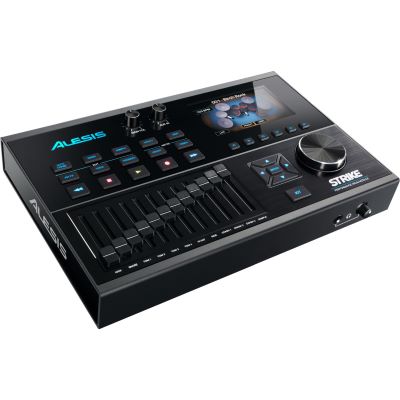

Alesis Strike Drum Module

The Alesis Strike Drum Module is by far the most versatile and feature-rich module Alesis has ever produced. The excellent playability and outstanding sound characteristics of this module are due in no small part to the comprehensive sound library with over 136 kits, which contains more than 1800 instruments and 45,000 samples.

The module offers an integrated sampling function, 16GB of external card storage space and a USB/MIDI connection that can be used for your favorite music production software and for the powerful Strike software editor. With this editor, drummers can use their own samples as velocity layer and round-robin instruments, create the perfect drum kit, and then transfer everything to the module via USB. Every function and control option is clearly presented on the 4.3-inch colour LED screen - all settings and options are visible at a glance. The Strike Drum Module offers unparalleled flexibility and programmability, allowing total control over the kit status.

Features:

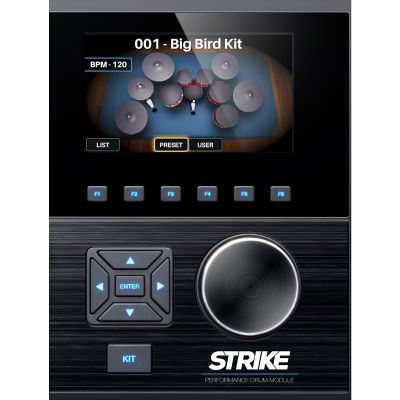

• 4.3" color display provides visual feedback on sound settings and editing parameters
• more than 136 preset kits, 1,800 instruments and 45,000 samples

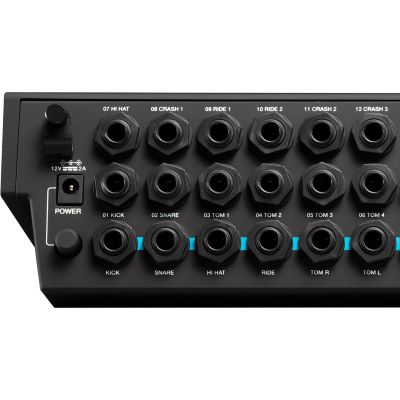

• (12) Trigger inputs for Alesis and other electronic drum triggers
• variable Hi-Hat pedal input
• Mixing surface with 12 individual faders for tactile control over your drum sound
• 6.3mm TRS main audio outputs
• individual 6.3mm TRS outputs for ultimate control over your mix in the studio or on stage
• 6.3mm headphone output with separate metronome sound
• External SD card slot for saving and loading user kits, instruments and samples (16GB SD card included)
• Integrated sampler for editing and assigning your own sounds to a kit
• 3.5mm jack audio input for connecting and recording external music players
• USB/MIDI output for use with virtual instruments and recording software
• Strike Software Editor for creating your own kits and instruments
• Cable whip with 12 6.3mm connectors included

Technical data:

• 136 kits
• 1,800 Instruments
• unlimited number of self-made kits, depending on the capacity of the SD card (max. 32GB)
• Display: full color, 4.2 inch, LED backlit

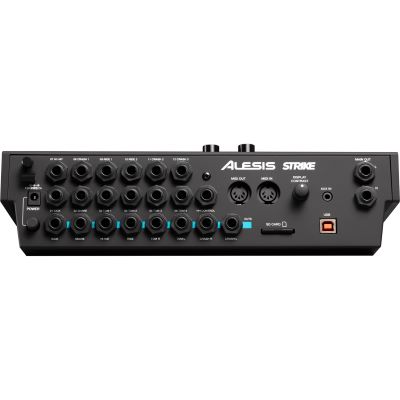

• Inputs: 13x 6.35mm jack, 1x 3.5mm jack, 1x 5-pin MIDI
• Outputs: 2x 6.35 mm (main outputs), 8x 6.35 mm, 1x 5-PIN MIDI, 1x 6.35 mm headphones

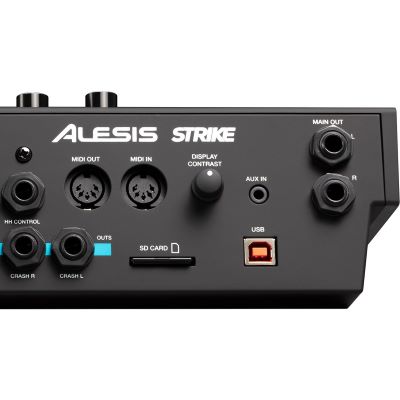

• Other connections: 1x USB type-B port, 1x SD card slot, 1x IEC power cable inlet
• Power supply: via mains adapter (12V, 2A)
• Dimensions: 30.5 x 20.3 x 7.6 cm
• Weight: 1,56 kg

Specs:

• Color: Black
• USB Port: yes
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Line Outputs: 2
• Type: Drum Modul
• Theme: Drums and Percussion
