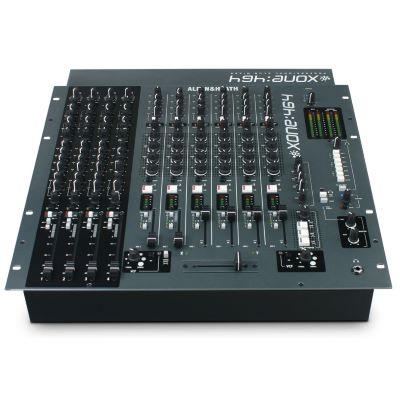

Allen & Heath Xone 464

When we decided to build a club mixer, we wanted

to satisfy club techs and DJs alike. XONE:464

naturally shares its construction methods with our

pro touring desks, so venues may depend on it

for outstanding audio and reliability. Its unique

analogue filters and 4 band asymmetric EQ also

make it an incredibly creative tool that DJs really

enjoy using. We also included a set of 4 fullyfeatured

mic/line inputs, which is great for venues

running small live sets as well as DJs, or for

those pioneering artists who are mixing live and

recorded sources.

This was the first XONE, and it paved the way for

further DJ product developments - its build and

sound quality mean that it’s still the first choice

for venues where DJ’s and engineers are serious

about their music.

Specifications:

- 4 mono channels: Fully-featured mono/mic performance channels with 100mm faders

- 6 dual stereo channels: 2 sources per channel, RCA and TRS.

- Stereo mix outputs: 2 independent ouputs on XLR or TRS, with full metering

- 6 Auxiliary sends: From every channel for monitors or effects sends

- Outputs: 4 stereo, 2 mono zone outputs with rotary control

- Voltage Controlled Filters: 2 independent stereo filters with frequency and resonance control

- 4 band EQ: Stereo channels have +6dB boost to preserve headroom and -26dB cut for creative mixing

- Monitoring: Includes 2 headphone outputs, split cue, mono sum button, booth output

- VCA crossfader: P&G professional crossfader

- Monitor section: Comprehensive booth monitor system allows you to listen to any mix, aux output, or cue source

- Sys-Link: Connect to other A&H desks via Sys-Link option

- Mounting: Desk or 19” rack mount - rotating connector pod

- Power Supply: High performance Internal switch-mode supply

Instruction manual / Safety instructions:

• Manual (3.81 MB)
