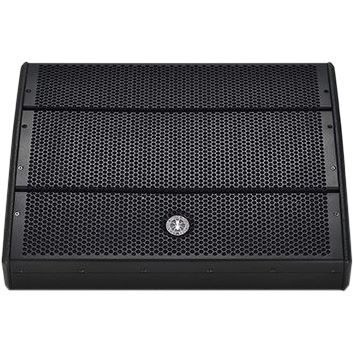

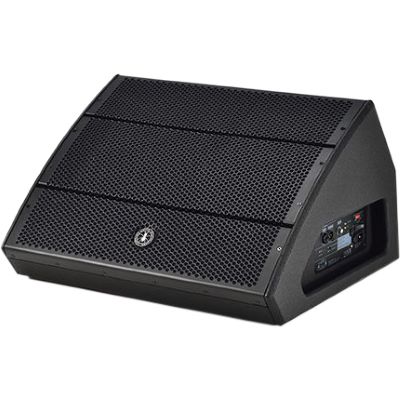

ANT ASM 15

ACTIVE COAXIAL STAGE MONITOR

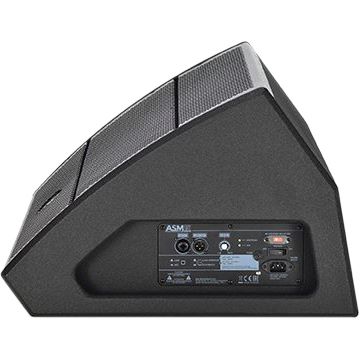

The ASM Series is a family of active 2-way coaxial stage monitors available in 3 models with 10", 12" or 15" woofers and 1" compression driver. With careful acoustic design and intuitive on-board controls, the ASM Series monitors deliver professional performance every time. The side panel is equipped with a COMBO MIC/LINE IN (with a mode selector switch), LINK OUT, an output level control, and EQ presets (live or playback), allowing the user to set the best signal management for any situation.

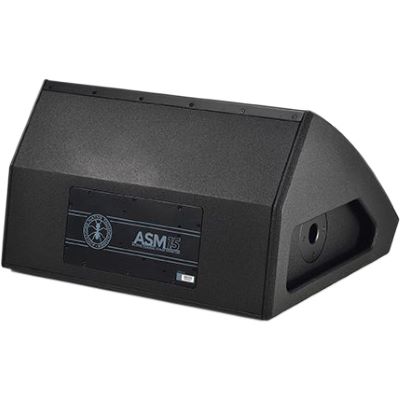

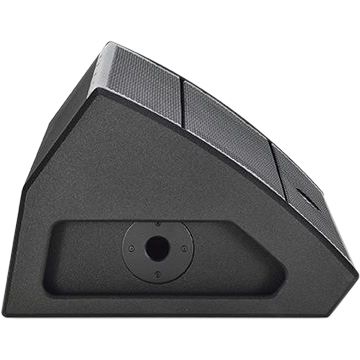

The ASM stage monitor features a contemporary design. The enclosure features recessed side handles, as well as a 35mm flange for vertical applications on a tripod. High durability is provided by the paint finish with anti-scratch coating.

Features:

• Active 2-way stage monitor
• Coaxial acoustic design
• Up to 126 dB SPL
• Input Mic/Line
• Output Link
• EQ Presets
• 35 mm pole mount
• Recessed side handle
• Anti-scratch coating

Specifications:

• System: 2-way vented box
• LF: Custom 15" woofer, 3" VC
• HF: 1" compression driver, 1.35" VC
• Amplification: Class-D + Class-A/B
• Peak power (LF+HF): 600W
• Frequency response (+/-10dB): 55Hz-20kHz
• MAX SPL: 126dB
• DSP: 56Bit
• AD/DA conversion: 24Bit / 48kHz
• EQ: 2 presets
• Input and output connectors: MIC/LINE COMBO (XLR-F + 2 x jack 6.35mm. 1/4") LINK output: XLR-M
• Controls: LEVEL, LINE/MIC switch ON-PEAK/SIGN LEDs PRESET button
• Operating mains Fuse: 220-240V~ 50-60Hz T2A L 250V~ 110-120V~ 50-60Hz T4A L 250V~
• Max power consumption: 300 W
• Cabinet: 2 recessed handles Pole mount Ø 35mm. hole
• Cabinet material: 15mm plywood
• Cabinets finishin: gAnti-scratch paint with high mechanical resistance
• Dimensions (W x H x D): 495 x 405 x 610 mm
• Net weight: 20.5 Kg.

Specs:

• Power: 600 W
• Housing Material: Multiplex
• Woofer: 1 x 15
• Tweeter: 1 x 1
• Set Offer: no
• Type: Stage Monitor
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.69 MB)
