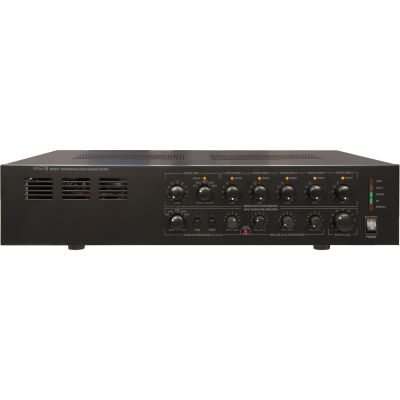

Apart Audio MA247

Something of a legend already, this 240 Watts, 6-zone 100V amplifier has been improved with 24V dedicated priority output per zone for more listening and operating comfort. The combination with the trusted functionalities of its predecessor makes the MA247 your selective 100V paging amplifier of choice. It can be used stand-alone, or as the core of an expandable sound system.

Because the MA247 offers independent source selection for zones 1 and 2-6, it can be used as a multi-source zoning system. Zone 1 is a fully independent pre-amplified zone and allows the installer to use an external power amplifier to amplify it. It is especially useful for large areas that require many speakers, like factory production areas. This has the particular advantage that the installer can use the external amplifier to suit his power needs for that particular zone.

Features:

• Output power rating: RMS 240 Watts
• Frequency response: 100 Volts out 40 - 25 kHz +1/-3dB
• Total harmonic distortion: <0,3% @ -6dB, 1kHz
• Frequency response line output zone 1: 20 - 30 kHz +1/-3dB
• Bass tone control zone 2-6: +8/- 8dB @ 100Hz
• Treble tone control zone 2-6: +8/-8dB @ 10kHz
• Tone control mic/line 1-4: from 100Hz/+3dB, 10kHz/-6dB to 100Hz/-9dB, 10kHz/+4dB
• S/N ratio: (20Hz-20kHz)
• Amplifier in: >95dB
• Line in: >80dB
• Dimensions: 430(w) x 88 (h) x 360 (d) - 2 HE, 19” brackets included
• Weight net: MA247: 13,6 kg

Specs:

• Type: Amps
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.38 MB)
