Apogee Duet 3

Legendary AD/DA converters and outstanding mic preamps.

With two inputs and four outputs, each with Apogee's legendary AD/DA conversion, and two world-class preamps, Duet is the perfect partner for your home and mobile studio. Connect microphones, guitars, keyboards or line gear to pick up every detail. With two fully balanced analog outputs for connecting speakers, you can monitor and mix your material with maximum plasticity and depth. And for your headphones, a zero-ohm headphone output is available for custom headphone mixing.

Pristine preamps

One of the most important components of high-quality recording is your preamp - and the preamps in the Apogee Duet are world-class. With up to 60 dB of gain and 48 V phantom power, you can pick up any audio source with absolute cleanliness and precision, even with the most sensitive microphones. Careful engineering at Apogee minimizes noise and distortion even at maximum gain.

Plug-in for the integrated DSP

To record your performance at its best, you need quick and easy access to inspiring sound. And few things are more disruptive to recording than latency. That's why Duet features an internal DSP for Apogee FX processing, allowing you to shape the sound at the input and record perfect-sounding tracks while eliminating recording-related delays.

Symphony ECS Channel Strip - tuned by Bob Clearmountain

Tuned by mixing legend Bob Clearmountain, the Symphony ECS Channel Strip* features EQ, compression, and saturation controls that let you optimize channel processing for recording vocals or acoustic instruments. Choose from numerous Clearmountain-created presets and record with zero latency via Duet's internal DSP. *Native version of Symphony ECS Channel Strip plug-in sold separately.

Apogee Control 2 Software

The all-new Apogee Control software gives you complete control over all of Duet's features and functions, including the effects of the Symphony ECS Channel Strip running on Duet's hardware DSP. Apogee Control 2 is shared across all Apogee products and allows Apogee support and development to quickly respond to future macOS as well as Windows operating system updates, ensuring compatibility with your workstation.

Beauty inside and out

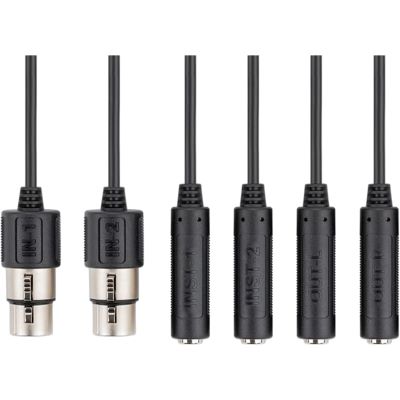

Sound quality comes first, of course - but right behind that is stunning design. Your audio interface is the heart of your studio and should be an added motivator in your creative process. Duet's endless knob offers a feel that's as luxurious as it is reliable when tuning monitor levels, leveling preamps, and navigating through all the functions. The knob's subtle purple backlighting perfectly accents the Duet experience. The top of the ultra-slim, desktop-optimized enclosure is made of scratch-resistant Gorilla Glass for a modern look and extra protection. The brand new Duet breakout cable has been redesigned to offer a larger working radius in addition to optimized connectors. You can plug everything in and then tidy everything away from your desk for a clean and organized workspace.

Features:

• Apogee converters and mic preamps unmatched in its class.
• 2x 4 USB Type-C audio interface
• Resolution: 24bit, 192kHz
• Extremely slim design with aluminum body and Gorilla Glass top surface and knobs
• Input and output connections via breakout cables:
• 2x 6.35mm instrument inputs
• 2x Mic/Line inputs
• 2x balanced 6.35 mm outputs
• 3.5 mm headphone output
• Bus power / external power supply optional via USB Type-C port
• Internal hardware DSP effects in the form of the Bob Clearmountain-tuned Symphony ECS Channel Strip
• Compatible with macOS and Windows 10
• USB Type-C and Type-A cables included

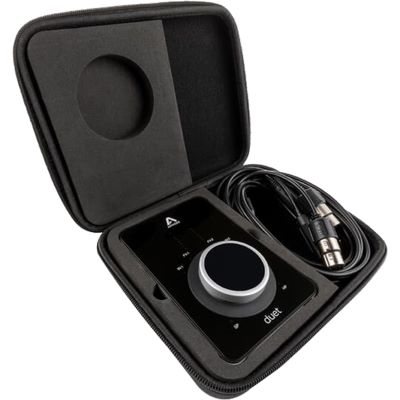

• Protective carrying case included
• Compatibility:
• macOS: 10.14 Mojave or later (Apple Silicon or Intel processor)
• PC: Windows 10 Anniversary Update or later

Specs:

• Color: Black
• Rack Mountable: no
• Line Inputs: 2
• Line Outputs: 2
• Mic Inputs: 2
• Phono Inputs: 2
• Instrument Inputs: 2
• digital Output: none
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio
