Cameo HYDRABEAM 400 RGBW

The Cameo HydraBeam 400 RGBW is a lighting set with 4 ultra-fast moving heads that can be controlled independently. They are equipped with high-intensity, 10 W Quad LEDs made by the leading manufacturer Cree, providing a narrow 4.5° beam angle.

Features:

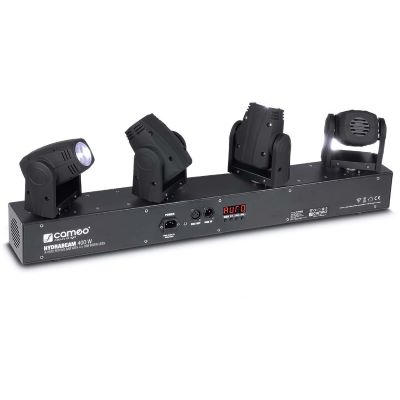

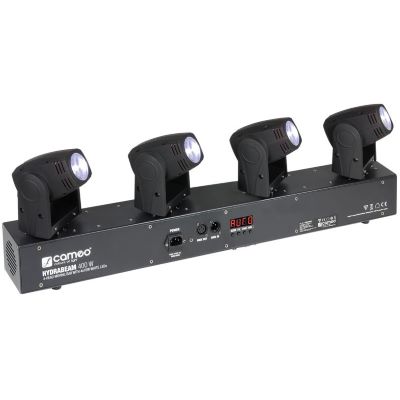

• Bar with 4 ultra-fast moving heads
• Independently controllable
• Each moving head can be controlled individually
• Universal mounting options
• Controllable with 6, 10, 19 or 32 DMX channels, external sound source, as master, slave or stand alone

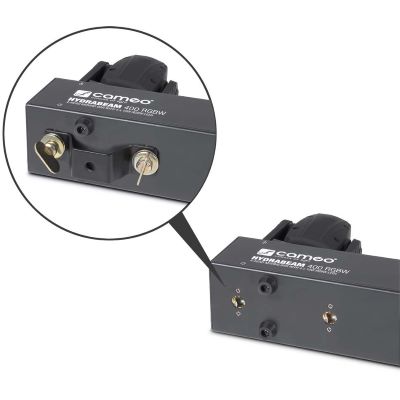

• 2 Omega brackets and a removable tripod flange included
• Strobe function with up to 30 flashes per second
• 16 effective automated operating modes
• Robust construction made of ABS and steel
• Simple operation using the four buttons and LED display
• Easy operation via backlit display and buttons
• Can be operated with mains voltage from 100 to 240 volts
• Including two omega clamps and removable tripod flange

Technical Specificatons:

• Type: LED Moving Head
• Color spectrum: RGBW (red, yellow, blue, white)
• LED Number: 4
• LED type: 10 W
• Angle: 11 °

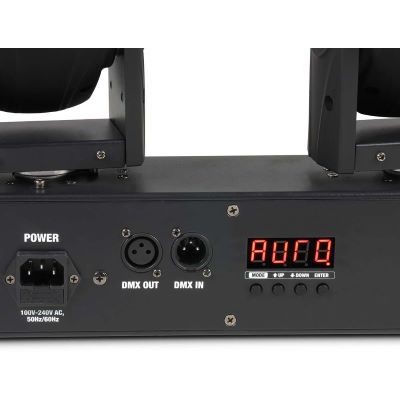

• DMX input: XLR 3-pin male
• DMX output: XLR 3-pin female
• DMX modes: 6-, 10-, 19-, 32-channel
• DMX functions: dimmer, TILT, PAN, Strobe, Color Change
• PAN movement: 540 °
• TILT movement: 270 °
• RF Strobe ::> 30H z
• Standalone Modes: Auto Run, Sound Control
• Controls: Enter, Mode, Value Down, Value Up
• Indicators: LED display
• Power supply: 100 V AC - 240 V AC, 50 / 60Hz
• Power consumption: 100 W
• Power connector: IEC female male
• Housing material: metal, ABS
• Housing Colour: Black
• Cooling: low noise fan
• Illuminance: red 10670 Lx1m, green 19000 Lx1m, blue 3710 Lx1m, white 27600 Lx1m
• Dimensions without bracket: 810 x 250 x 130 mm (WxHxD)

Specs:

• Beam: Spot
• Light source: LED RGBW
• Colour mixing: LED
• Gobo: none
• Focus: no
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (765.35 KB)
