EUROLITE LED TMH-W120 Hypno Moving-Head Wash

EUROLITE LED TMH-W120 Hypno Moving-Head Wash - Compact wash effect with hypno backlighting

The EUROLITE LED TMH-W120 Hypno Moving-Head Wash is an innovative and powerful LED moving head that adds a whole new dimension to creative lighting effects. Equipped with a 120-watt RGB/WW COB LED and 26 RGB Hypno LEDs for backlighting, this compact wash moving head creates impressive lighting scenes - flicker-free and extremely versatile.

Thanks to its 11° beam angle, precise PAN/TILT control with 16-bit resolution and extensive control options - from DMX and music control to wireless options such as QuickDMX, CRMX or W-DMX (via USB) - the TMH-W120 is the ideal solution for professional lighting designers, DJs, event organizers or mobile entertainers.

Design meets technology - hypnotizing lighting concept

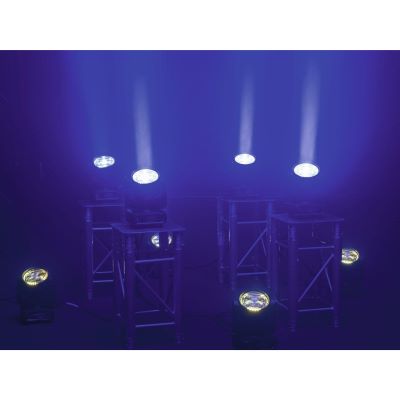

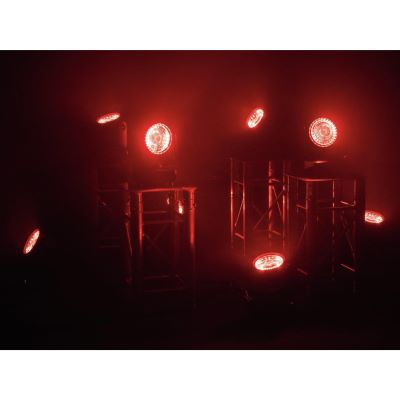

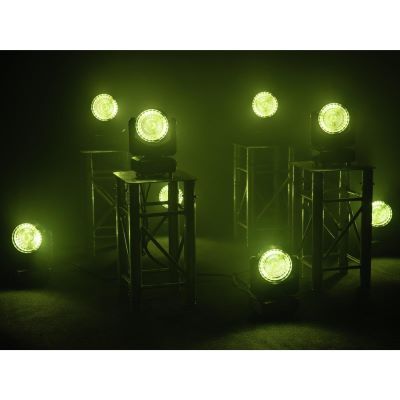

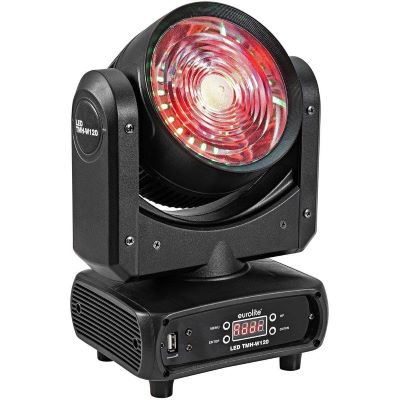

The TMH-W120 not only impresses with its compact design and robust workmanship, but also with its innovative Hypno backlighting. The 26 additional SMD 5050 RGB LEDs provide colorful, circular effects in the background and expand the creative potential of this moving head enormously - ideal for stages, events, clubs or visual installations.

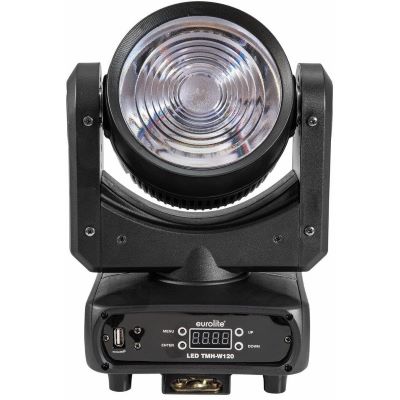

The elegant black housing, the omega bracket for truss mounting and a four-digit LED display for simple menu navigation also make the device a favorite for professional use in terms of handling.

Technical details of the EUROLITE LED TMH-W120 Hypno Moving-Head Wash

At the heart of the device is a 120-watt COB LED in RGB/WW (4-in-1 QCL), which ensures homogeneous color mixing and rich wash effects. This main light source is supplemented by 26 SMD-5050 RGB LEDs with 0.2 W output - especially for the unique Hypno backlighting.

The beam angles are 11° at half intensity (1/2 peak) and up to 20° at 1/10 peak - ideal for pinpoint lighting with a soft light gradient. With a PWM frequency of 20,000 Hz, the moving head is absolutely flicker-free and therefore also ideal for camera applications.

The device offers 540° PAN and 200° TILT movement with 16-bit resolution for particularly precise positioning. The TMH-W120 is controlled via 23 DMX channels or optionally in stand-alone, music control or master/slave mode. For wireless control, it is compatible with QuickDMX, CRMX by LumenRadio and W-DMX by Wireless Solution via the optional USB port.

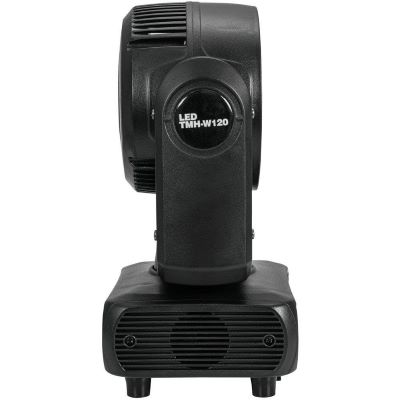

Another advantage is the sophisticated cooling: a temperature-controlled fan in the head and a low-noise fan in the base ensure reliable operation with a low noise level - ideal for sensitive environments such as theaters or gala events.

Performance data & light intensity

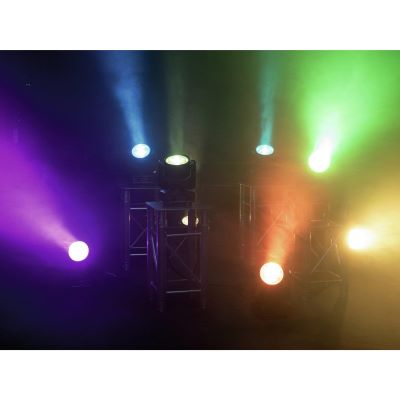

The light output of the TMH-W120 is impressive across the board. Here are the illuminance levels in lux per color (measured at a distance of 1 m, 3 m and 6 m):

• Red: 11680 lx / 1064 lx / 257 lx
• Green: 21059 lx / 1883 lx / 429 lx
• Blue: 4476 lx / 434 lx / 102 lx
• Warm white: 19730 lx / 1711 lx / 408 lx
• All LEDs combined: 52623 lx / 4746 lx / 1108 lx

Why the EUROLITE TMH-W120 is the perfect choice for modern lighting concepts

With its combination of powerful COB LED, RGB backlighting, flicker-free operation and precise control, the TMH-W120 offers an unbeatable overall package for creative lighting design. The wide range of control options - including wireless DMX integration - makes it particularly flexible in use.

Its robust design, low weight of just 3.6 kg and compact dimensions (20 x 14 x 29 cm) also make it suitable for use on smaller stages or in mobile setups. Thanks to its flicker-free projection, the moving head is just as suitable for TV productions as it is for live events.

A compact, powerful and visually impressive device that inspires creative minds - and at a convincing price-performance ratio.

Features:

• Compact LED moving head wash with hypno backlighting
• 1 x 120 W COB 4-in-1 QCL RGB/WW LED for homogeneous color mixing
• 26 x 0.2 W SMD 5050 RGB LEDs for hypno effect
• Movement range: 540° PAN / 200° TILT (16-bit)
• Beam angle: 11° (1/2 peak), up to 20° (1/10 peak)
• Flicker-free operation (PWM frequency: 20,000 Hz)
• 23 DMX channels, DMX failure mode: hold or zero value
• Control via DMX, music mode, stand-alone, master/slave
• USB connection for QuickDMX, CRMX, W-DMX (optional)
• Noise-optimized fan control in the head and base

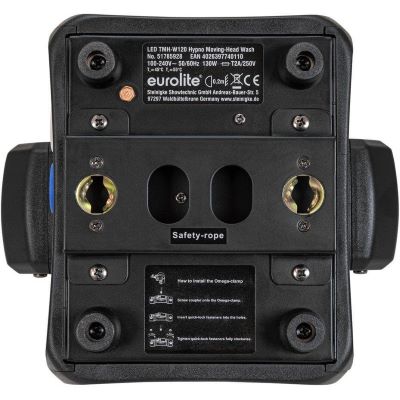

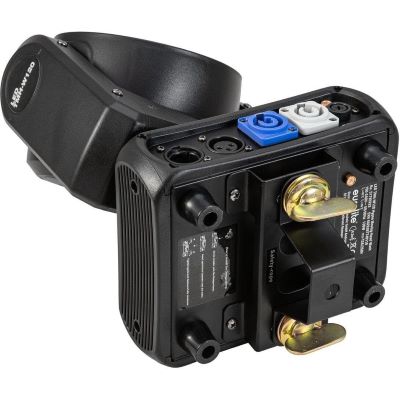

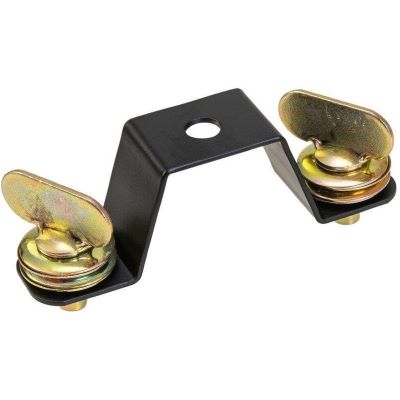

• Omega bracket for truss mounting included

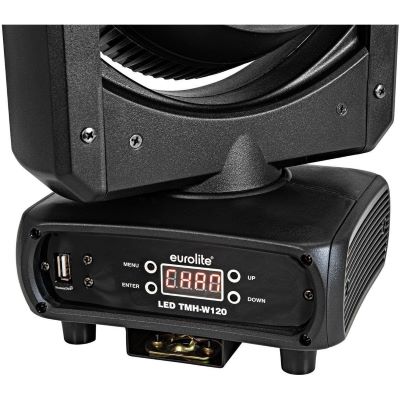

• LED display (4-digit 7-segment)
• Rubber feet for a secure stand

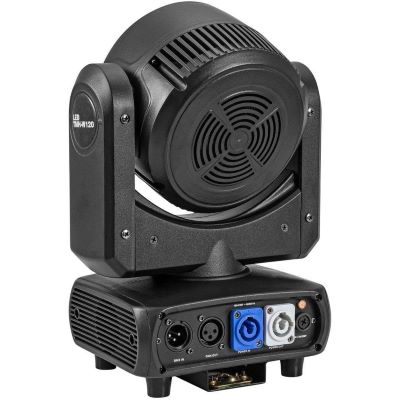

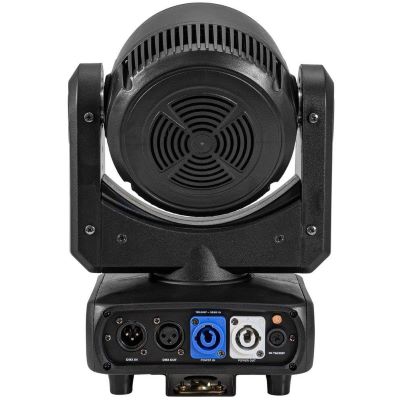

• Power supply via P-Con (blue), power output P-Con (gray)
• Power supply: 100-240 V AC, 50/60 Hz, 130 W
• Protection class: IP20
• Housing color: Black
• Dimensions: 20 x 14 x 29 cm
• Weight: 3.60 kg
• Scope of delivery: 1x moving head, 1x mains cable, 1x omega bracket, 1x operating instructions

Specs:

• Beam: Wash
• Light source: LED COB
• Colour mixing: LED
• Gobo: none
• Focus: yes, manually
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show
