Chauvet DJ GigBar Bridge ILS

Chauvet DJ GigBar Bridge ILS - The 2-in-1 complete system for creative lighting productions

With the Chauvet DJ GigBar Bridge ILS, Chauvet DJ is launching an intelligent and versatile lighting system specially developed for DJs, mobile entertainers, event organizers and stage technicians. This 2-in-1 lighting system combines powerful moving heads and impressive wash effects on a single, easy-to-transport bar. The combination of wireless DMX control, quick assembly, creative features and compatibility with the ILS ecosystem makes the GigBar Bridge ILS a real game changer for modern lighting setups.

The GigBar Bridge ILS not only impresses with its practical design, but also with its powerful performance: two 70-watt LED moving heads with gobos and color discs ensure precise, dynamic movement and spectacular effects, while four wash LEDs with RGBAW+UV colors provide powerful, uniform area lighting. Whether at weddings, in clubs, at company parties or on tour - this system offers maximum flexibility with minimum effort.

Chauvet DJ - Innovation for the stage

As one of the world's leading manufacturers of event and show lighting solutions, Chauvet DJ stands for reliable technology, sophisticated operability and creative lighting design. With the ILS system ("Integrated Lighting System"), Chauvet is pursuing the goal of making lighting control more intuitive, wireless and synchronized. The GigBar Bridge ILS is a central component of this ecosystem and enables various compatible devices to be connected wirelessly and controlled together - without the need for complex cabling or programming.

The innovative D-Fi transceiver system enables interference-free communication between multiple devices via radio with a range of up to 183 meters. This means: more freedom, less cable clutter and quick set-up - perfect conditions for stress-free events and a professional appearance.

Technical details of the Chauvet DJ GigBar Bridge ILS

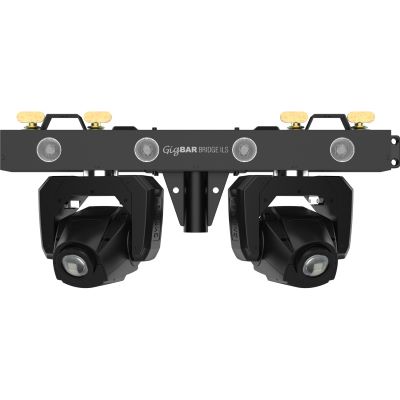

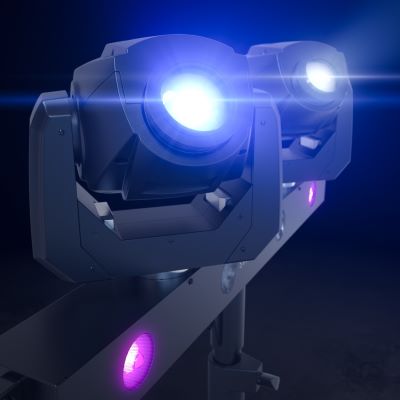

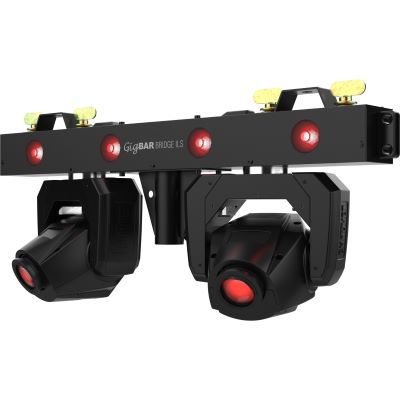

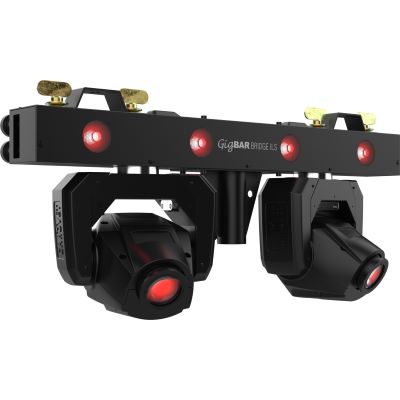

The Chauvet DJ GigBar Bridge ILS combines two powerful moving heads with separate color and gobo discs and four wash LEDs for comprehensive light output. Each moving head is equipped with a 70-watt cool white LED and delivers sharp beams, powerful gobos and spectacular color changes. Nine colors (plus open), color mixing, color separation and continuous scrolling enable varied and precise light shows. The gobo disks also offer nine patterns plus an open position and can also be scrolled at variable speed.

The four 10-watt hex LEDs (RGBAW+UV) deliver intense wash effects with a beam angle of 22° and a field angle of 38°. This combination allows both targeted accents and soft color transitions in the room. The LEDs offer a service life of up to 50,000 hours - ideal for long-term professional use.

The totem mode ensures that the moving heads remain aimed at the dance floor or focus area - regardless of movement - which ensures targeted lighting effects and a controlled stage set. The system can be operated via the integrated color LCD display, a wireless RF remote control (optional), the wireless footswitch (optional), via DMX (3, 16 or 46 channels) or the ILS network.

The system supports power linking and thus saves time when wiring: up to 8 devices at 120 V or 13 devices at 230 V can be connected together. Thanks to the ILS compatibility system, other ILS-compatible Chauvet DJ devices can also be integrated and synchronized.

Flexibility, mobility and convenience in live use

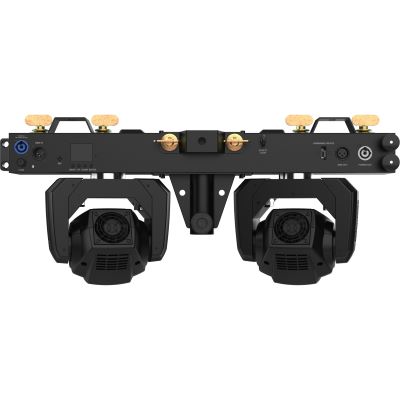

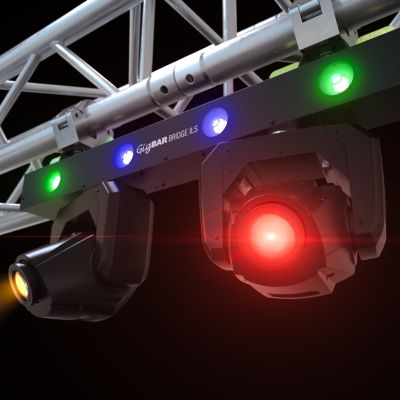

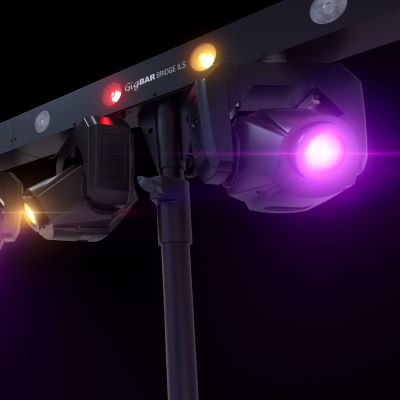

The housing of the GigBar Bridge ILS is designed so that it can be securely mounted on conventional 1.5-inch stands as well as on truss systems. The removable bracket facilitates transportation and quick installation. The compact design (660 x 71 x 305 mm) with a weight of only 8.4 kg makes the system ideal for mobile applications.

With a power consumption of 191 W at 120 V and 175 W at 230 V, the system is also energy-efficient and suitable for all common power systems worldwide (100-240 V, 50/60 Hz, automatic switching). The stroboscope rate of 0 to 20 Hz enables fast flash effects for dramatic show moments.

Why the Chauvet DJ GigBar Bridge ILS is the perfect solution

The Chauvet DJ GigBar Bridge ILS offers a sophisticated, powerful lighting system for those who want more than standard LED bars. It combines modern technology, creative control and particularly simple operation in a single device. DJs, bands, event technicians and solo entertainers in particular benefit from the quick set-up, wireless connection options and flexible control.

Thanks to its ILS compatibility, the GigBar Bridge ILS can be easily integrated into larger setups - for example with wash lights, moving heads or strobes from the ILS system. This saves time, reduces sources of error and ensures seamless synchronization - even fully automated if desired.

Whether for weddings, corporate events, concerts or clubs - the GigBar Bridge ILS is a flexible, compact and reliable lighting system that delivers impressive results with minimal effort.

Features:

• 2-in-1 lighting system with moving heads and wash effects
• DMX channels: 3, 16 or 46
• DMX connections: 3-pin XLR
• Integrated D-Fi transceiver for wireless DMX/ILS communication
• Totem mode for focused movement on dance floor/stage
• Color wheel: 9 colors + open, continuous scrolling with variable speed
• Gobo disk: 9 gobos + open, with scroll function
• Moving head LED: 1x 70 W cold white, service life: 50,000 hours
• Wash LEDs: 4x 10 W RGBAW+UV, service life: 50,000 hours
• Beam angle (wash): 22°, field angle: 38°
• Strobe rate: 0 to 20 Hz
• Power linking: up to 8 units (120 V) / 13 units (230 V)
• Input voltage: 100-240 V, 50/60 Hz (automatic switching)
• Power consumption: 191 W at 120 V / 175 W at 230 V
• Max. D-Fi range: 600 ft (183 m)
• Dimensions: 660 x 71 x 305 mm
• Weight: 8.4 kg
• Suitable tripod size: 1.5 inch (37.4 mm)
• Control via LCD display, RF, foot switch (optional) or ILS Command
• Scope of delivery: GigBar Bridge ILS, power cable, 2 suspension brackets, carrying bag, quick reference guide

Specs:

• Beam: Spot / Wash
• Light source: LED RGBWA + UV
• Colour mixing: LED
• Gobo: more than 6, rotating
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Lighting Effect
• Theme: Light and Show
