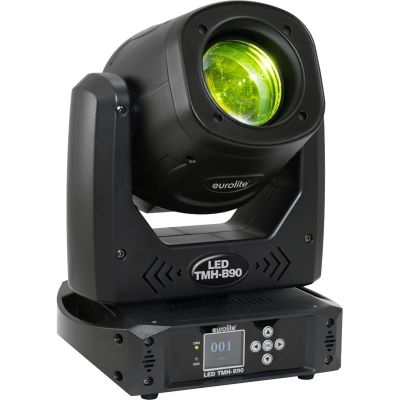

EUROLITE LED TMH-B90 Moving-Head Beam

EUROLITE LED TMH-B90 Moving-Head Beam: Precision and versatility for impressive light shows

The EUROLITE LED TMH-B90 Moving-Head Beam offers a powerful and versatile lighting solution for professional stage and event applications. With its high-quality 90 W COB LED, color wheel, static gobo wheel, prism and motorized focus, this moving head is perfect for impressive lighting effects and precise beam control. Thanks to its compact design and advanced functions, it is ideal for clubs, stages and mobile DJs alike.

Powerful LED and precise control

Equipped with a 90 W COB LED (cool white), the TMH-B90 delivers high light output and ensures flicker-free projections. Its 16-bit positioning resolution enables precise movements with a PAN range of 540° and a TILT range of 200°. The integrated auto-position correction ensures that the spotlight always remains precisely aligned.

Wide range of effects and customization options

The TMH-B90 has a rotating 8-facet prism that creates impressive lighting effects at variable speeds. The color wheel offers seven dichroic colors as well as an open mode and supports a rainbow effect with variable speed in both directions. The static gobo wheel with 13 gobos and an open slot enables creative patterns and an additional shake effect for dynamic light shows.

In addition, a motorized focus, a frost filter and a strobe effect (2-20 flashes per second) are integrated to offer even more variability in lighting design. It can be operated via standalone mode, music control, master/slave function or DMX control with up to 14 channels. The spotlight is also compatible with QuickDMX, the wireless DMX system from Eurolite.

Robust construction and simple operation

The TMH-B90 is equipped with a robust housing and additional rubber feet to protect it during installation. Its LCD display with membrane keypad allows for easy setup and control, including setting DMX start addresses, PAN/TILT reverse and program selection.

Thanks to its switching power supply technology, the moving head is compatible with mains voltages from 100 to 240 V, offering installation flexibility. The device is easy to transport and, weighing just 6.20 kg, is compact enough for mobile applications.

Conclusion: EUROLITE LED TMH-B90 - Versatile lighting at professional level

The EUROLITE LED TMH-B90 moving head beam impresses with its powerful LED, precise control and diverse effects. Its robust construction and simple operation make it the ideal choice for demanding light shows in clubs, on stages or at events. Whether for static lighting or dynamic effects - the TMH-B90 always delivers impressive results.

Features:

• Equipped with a cool white 90 W COB LED
• Positioning within 540° PAN and 200° TILT
• Precise positioning thanks to 16-bit resolution of the PAN/TILT movement
• Auto, music, master/slave and DMX mode
• Music control via built-in microphone
• Rotating 8-facet prism with variable speed
• Strobe effect with 2-20 flashes per second
• Internal programs
• Dimmer
• Motorized focus
• Frost filter
• Compatible with QuickDMX - the wireless DMX system from Eurolite
• Phantom-powered USB socket for QuickDMX receiver (optional)
• Control board with LCD and membrane keypad
• Switch-mode power supply technology for mains voltage between 100 and 240 volts
• Additional rubber feet for protection when setting up
• Color wheel: 7 dichroic colors and open
• Rainbow effect with variable speed in both directions
• Gobo wheel with 13 static gobos and open
• Shake effect
• DMX channels: 14
• Flicker-free projection
• Effect: Single beam
• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 125 W
• Protection class: IP20
• Power connection: P-Con (blue), incl. safety plug
• Fuse: T 2 A (5 x 20 mm, replaceable)
• Flash rate: 2 - 20 Hz
• Beam angle: 3°
• Illuminance: 3 m: 33,839 lx; 6 m: 10,454 lx
• DMX inputs/outputs: 3-pin XLR
• Dimensions: 25.5 x 20.5 x 33.0 cm
• Weight: 6.20 kg

Specs:

• Beam: Spot
• Light source: LED COB
• Colour mixing: Up to 9 Color Wheels
• Gobo: up to 6, static
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Moving Head Beam
• Theme: Light and Show
