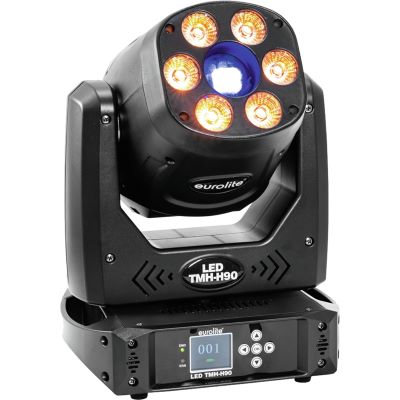

EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB

EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB: Versatility for impressive light shows

The EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB is a professional moving head that impresses with its versatility and high performance. With its combination of spotlight and wash light and flexible control options, it is ideal for stages, clubs and events. State-of-the-art technology and a wide range of effects make the TMH-H90 an indispensable tool for creative lighting productions.

Powerful technology and impressive effects

The TMH-H90 combines a powerful spotlight and a fully-fledged washlight in one device. With its 90 W COB LED and six 10 W HCL LEDs (RGBWA/UV), it delivers brilliant colors and homogeneous illumination. Its variable beam angles and wide range of effects make it extremely flexible and versatile. Thanks to the rotating gobo wheel, 3-facet prism and strobe effects, impressive light shows can be created.

Simple control and configuration

The TMH-H90 offers flexible control options for every application. With DMX (25 channels), standalone, music and master/slave modes, it adapts to different requirements. It can be controlled via a multi-color LCD display with membrane keypad or optionally via QuickDMX via USB. This flexibility enables easy integration into existing lighting systems.

Compact design and robust workmanship

With its compact design (25 x 22 x 36 cm) and a weight of 6.5 kg, the TMH-H90 is easy to transport and install. The robust construction and efficient fan ensure reliable performance, even in demanding applications. The elegant black housing suits every event and environment.

Recommended purchase

The EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB is the ideal choice for lighting designers, event technicians and event organizers looking for a versatile and powerful moving head. With its advanced features, high-quality finish and impressive light quality, the TMH-H90 sets new standards in professional lighting.

Features:

• Powerful spotlight and fully-fledged washlight in one device
• 90 W COB LED and six high-power 10 W HCL LEDs (RGBWA/UV)
• Beam angle: 13° (spot), 20° (wash effect, 1/2 peak), 38° (wash effect, 1/10 peak)
• Rotating gobo wheel with 7 static and 6 rotating gobos (interchangeable)
• Rotating 3-facet prism with variable speeds
• 7 dichroic colors with rainbow effects in both directions
• Strobe effect: 2-30 flashes per second
• DMX mode with 25 channels
• Standalone, music, master/slave mode
• Control via multicolored LCD display with membrane keypad
• QuickDMX via USB (optional)
• Positioning: 540° PAN, 200° TILT
• Power: 135 W
• Cooling: Fan
• Power supply: 100-240 V AC (50/60 Hz)
• Protection class: IP20
• Dimensions (L x W x H): 25 x 22 x 36 cm
• Weight: 6.5 kg
• Color: Black

Specs:

• Beam: Spot / Wash
• Light source: LED COB
• Colour mixing: Up to 9 Color Wheels
• Gobo: up to 6, rotating
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (2.76 MB)
