Cameo TWINSCAN 20 Product Details

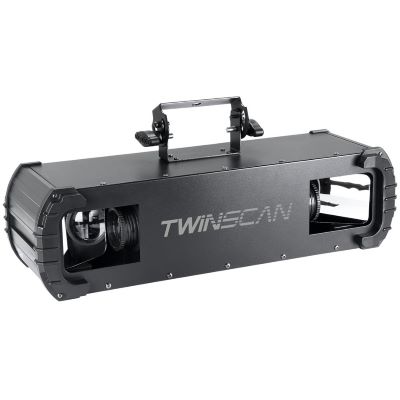

The Cameo Twinscan 20 combines two scanners in one housing, whose convection cooling ensures low-noise operation. They are each equipped with a durable, 10 watt white Cree LED and manual focus adjustment, the 12° light cones can be moved horizontally up to 55°. The Twinscan 20 generates with 9 individual graphic and colour combinations plus white interesting light patterns, even dimmer curves and fast stroboscope effects.
The highly energy-efficient Twinscan 20 is ideal for mobile DJs, discos, clubs, bars and parties. It can be controlled via DMX in 1-, 3-, 4- and 8-channel mode and operated as master, slave or standalone; it also has automated programs and an integrated microphone for sound activation.

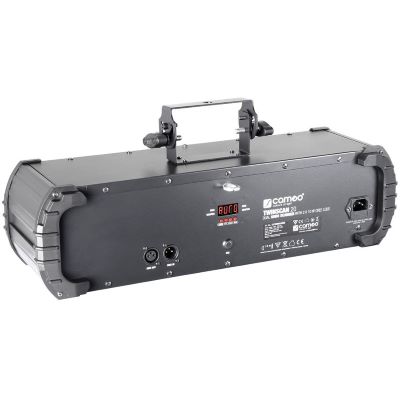

The rugged black metal housing has 3-pin XLR connectors for DMX input and output, an IEC mains socket with fuse and a four-button LED display for easy manual operation. The Twinscan 20 is supplied with a practical, adjustable bracket and safety eye for safe installation.
Features:
- Product type: LED Moving Light
- Type: Double Scanner
- Colour spectrum: 9 colours + white
- LED Number: 2
- LED type: 10 W
- Beam angle: 12°.
- DMX input: XLR 3-pin male
- DMX output: XLR 3-pin female
- DMX mode: 1-channel, 3-channel, 4-channel, 8-channel
- DMX functions: Gobo/Colour wheel, PAN, Auto 1-9, Strobe, Dimmer, Sound Control
- PAN movement: 55°.
- High frequency stroboscope: > 20 Hz
- Standalone modes: Sound Control, Auto 1-9
- Control elements: Value Up, Value Down, Mode, Enter
- Display elements: LED Display
- Power supply: 100 V AC - 240 V AC / 50 - 60 Hz
- Power consumption: 35W
- Power supply connection: IEC female connector male
- Housing material: Metal
- Housing colour: black
- Illuminance: 2400 lx1m
- Dimensions without retaining bracket
- width: 545 mm
- height: 151 mm
- Length: 180 mm
- weight: 5,0 kg
Specs:
- Power: 10 W
- Beam: Spot
- Light source: LED White
- Colour mixing: Up to 9 Color Wheels
- Gobo: more than 6, static
- Focus: no
- Steuerung DMX: yes
- Effect Frost: no
- Effect Strobo: yes
- Effect Colour correction: no
- Effect UV: no
- Effect Gobo Shake: no
- Type: Scanner
- Theme: Light and Show
