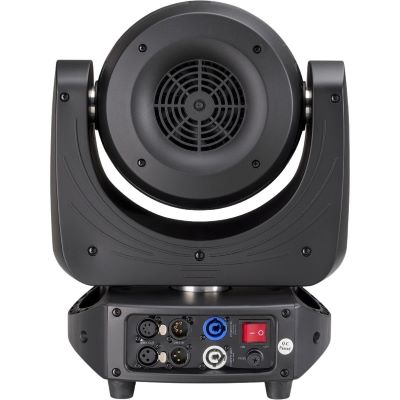

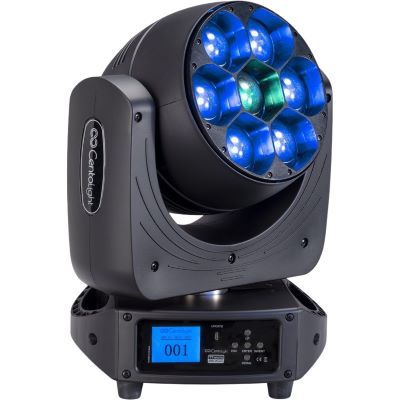

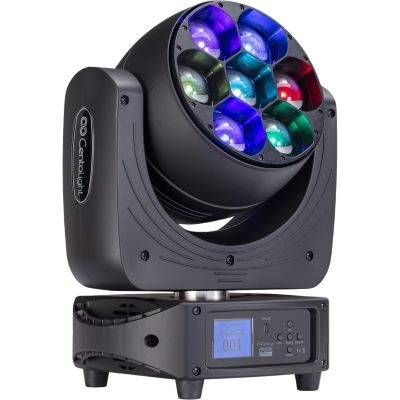

CentoLight THESIS 280 ZOOM 7 x 40W LED Moving Head

CentoLight THESIS 280 ZOOM: High-performance LED moving head with precise zoom

The CentoLight THESIS 280 ZOOM is a versatile LED moving head that has been specially developed for demanding lighting designs. With 7 x 40W RGBW OSRAM LEDs, a precise motorized zoom and flexible control options, this moving head offers an ideal solution for stages, events and professional lighting installations. The THESIS 280 ZOOM combines high output, precise color mixing and flicker-free operation to maximize the creativity of lighting designers.

Powerful LEDs and flexible zoom

The 7 x 40W RGBW OSRAM LEDs of the THESIS 280 ZOOM guarantee brilliant colors and a service life of up to 50,000 hours. The motorized zoom offers a variable beam angle of 4.5° to 45°, which is controlled by three quiet motors. This enables precise adjustment from narrow light beams to wide wash effects, ideal for a wide range of applications.

Creative pixel effects and color mixing

The THESIS 280 ZOOM features a variety of pixel effects, including rainbow, circle and single pixel control. The smooth RGBW color mixing and adjustable color temperature from 2800K to 8500K make it possible to create breathtaking lighting moods. The dimmer operates electronically with 16-bit control for precise and linear adjustment of brightness from 0-100%.

Reliable mechanics and quiet operation

With 16-bit control for PAN (540°) and TILT (270°), the THESIS 280 ZOOM guarantees precise movements without vibrations. The electronic dimmer and zoom function minimize skating effects, while the intelligent cooling system with variable fan speed protects the LEDs from overheating. The moving head operates flicker-free, making it ideal for video and broadcast applications.

Versatile control and network protocols

The THESIS 280 ZOOM supports DMX512, master-slave, auto and sound-activated operation. With four selectable DMX channel modes (11CH, 14CH, 18CH, 38CH) and optional network protocols such as RDM, Art-Net®, Kling-Net and sACN, it offers maximum flexibility. A 2-inch color LCD screen with a user-friendly interface facilitates configuration and operation.

Conclusion: High-performance moving head for professional applications

The CentoLight THESIS 280 ZOOM is a powerful and reliable solution for lighting designers and event organizers who require precise color mixing, flexible control options and creative effects. With its OSRAM LEDs, motorized zoom and advanced control functions, this moving head is ideal for demanding lighting designs on stages, at events and in installations.

Features:

• 7 x 40W RGBW OSRAM LEDs with a service life of approx. 50,000 hours
• Zoom function with variable beam angles from 4.5° to 45°
• Precise RGBW color mixing and adjustable color temperature (2800K-8500K)
• Creative pixel effects: Rainbow, circle, single pixel control
• Electronic dimmer with 16-bit control for linear brightness adjustment
• Strobe function: 1-20 Hz with instant on/off mode
• PAN (540°) and TILT (270°) with 16-bit control and automatic error correction
• Flicker-free operation for video and broadcast applications
• Supports RDM, Art-Net®, Kling-Net and sACN network protocols (optional)
• Control modes: DMX512, master-slave, auto, sound
• Four DMX channel modes: 11CH, 14CH, 18CH, 38CH
• Intelligent cooling system with temperature-controlled fan speed

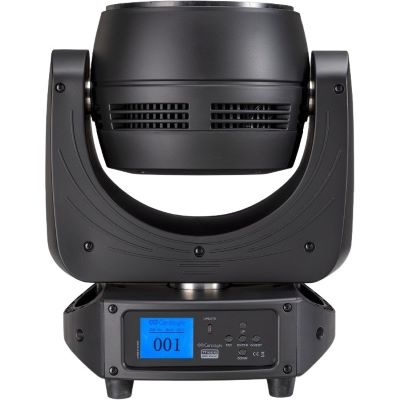

• 2-inch color LCD screen with user-friendly interface
• Voltage: 100V-240V, 50-60 Hz
• Power consumption: 400W
• Flame-retardant plastic housing
• Compact dimensions: 290 x 225 x 380 mm
• Weight: 8.9 kg

Specs:

• Beam: Spot / Wash
• Light source: LED RGBW
• Colour mixing: LED
• Gobo: none
• Focus: yes, manually
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show
