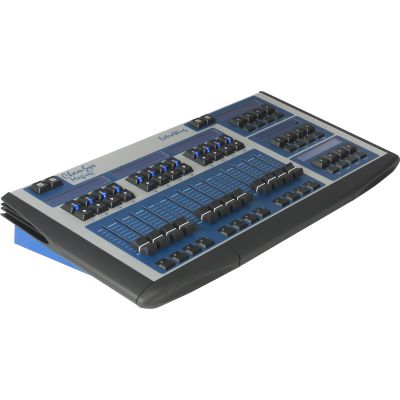

ChamSys MagicQ Extra Wing Compact

The Extra Wing Compact is designed to allow users of MagicQ to extend the number of physical playbacks available to them. It has a total of 24 playbacks. Made up of 12 fader and 12 executable playbacks.

Each section of playbacks can page through multiple playbacks via its own Next and Previous page buttons. The 12 playback faders feature Flash, Go and Select buttons, while the other 12 are more space-saving, employing one a Select and Execute button for each playback. All playbacks feature LCD displays for playback legending directly above each playback.

The Extra Wing Compact is a modular expansion device for the ChamSys MagicQ console series. It features an internal USB hub which enables multiple Extra Wings to be connected together. Other rear panel connections include a locking Neutrik Powercon connector, a USB socket for connection to the main MagicQ system, and a working light socket.

Features:

• 12 fader controls for scene playback
• 12 Executer buttons
• Fully electronic legend
• For use on MagicQ compact and full-size consoles
• For use on MagicQ PC or Mac
• Up to 8 Wings can be used simultaneously per MagicQ system
• Double playback section
• Split playback pages
• Separate up/down buttons for page recall
• USB connection
• Dimmable LED desk light included
• Integrated PSU power supply
• Designed and manufactured in the UK

Specifications:

• Fader controls for scene playback: 12
• Executer buttons: 12
• Total number of scene playback controls: 24 (12+12)
• Electronic playback legends: Yes
• Button controls: 64
• USB ports: 3 (2 output, 1 input)
• Kengsington security lock for theft protection: Yes
• Connector for console light: Yes
• Power connector: Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

• Maximum number of DMX universes: 64
• Maximum number of DMX channels: 32768
• Maximum number of fixtures supported: 32768
• Maximum number of cues: 5000
• Maximum number of cue stacks: 2000
• Maximum number of groups: 5000
• Maximum number of palettes: 4096
• Maximum number of media server layers supported: 50 (each with different content)

Included accessories:

• USB A-B cable: 1
• Dual colour desk light: 1
• Dust cover: 1
• Neutrik powerCON TRUE1 power cable: 1

Console Weight and Dimensions:

• Width: 20.2 in (515 mm).
• Depth: 257 mm (10.1 in.)
• Height (to rear): 88 mm (3.4 in.)
• Height (to fader): 84 mm (3.3 inches)
• Weight: 6kg (13.2 lb)

Instruction manual / Safety instructions:

• Manual (16.51 MB)
