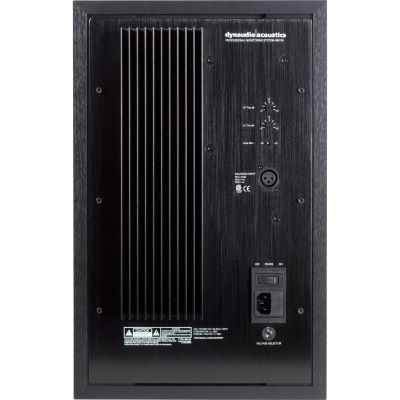

Dynaudio acoustics BM 15 A Right

The BM15 is the largest and most powerful speaker within the BM Passive range and is designed for any studio application where higher sound pressure levels and extended low frequence response are required. Its astonishing power handling and full range extended bass response makes it the perfect alternative to wall mounted main monitors, particularly for commercial studios, project studios and post production facilities.

- Unique linear phase and frequency response.

- Every monitor matched to any other monitor within ± 1.5dB.

- 28mm ESOTEC soft dome tweeter with aluminum voice coil.

- 240mm magnesium silicate impregnated polypropylene (MSP) bass driver with exceptionally large 100mm aluminum voice coil.

System..... 2-way Passive Nearfield Monitor

Frequency Response (+/- 3 dB)...... 43 Hz - 20 kHz

Peak SPL 1m, pair(IEC Long Term)....... 127 dB Peak

Peak SPL 2m, 5.1 (IEC Long Term)....... 128,5 dB Peak

Max SPL 1m SPL @ 1m (+4/-10)....... 109 dB RMS

Amplifier Minimum........ 50 W (> 94 dB SPL @ 2m)

Sensitivity......... 88 dB

Impedance Nominal........ 4 ohm

Impedance HF (200 kHz)........ 5,9 ohm

Resonance Frequency....... 43 Hz

Internal Cabinet Volume...... 25,8 liters

Bass Principle....... Bass reflex

Crossover Frequencies...... 2700 Hz

Crossover Slope....... Woofer 6 dB/oct; Tweeter 12 dB/oct

Tweeter......... Esotec 28 mm soft dome, Rear chamber, Magnetic fluid, 4 mm die-cast alu front, Pure alu wire voice coil, Protection grille

Woofer........ 24 cm, One-piece molded polypropylene cone, 100 mm pure alu wire voice coil

Weight.......... 12,3 kg

Dimensions (WxHxL)........ 272 x 436 x 321 mm

Specs:

• Color: Black
• Woofer: 1 x 10
• Frequency Range from: 30 Hz
• Frequency Range to: 21000 Hz
• Set Offer: no
• Number of paths: 2-way
• Type: Studio Monitor
• Theme: Recording and Studio
