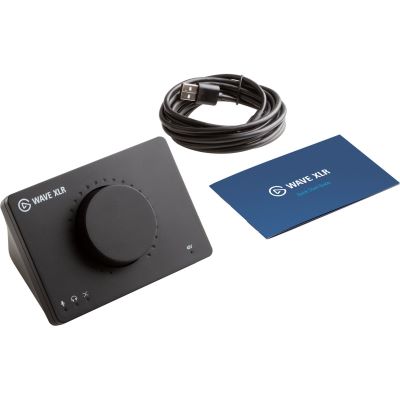

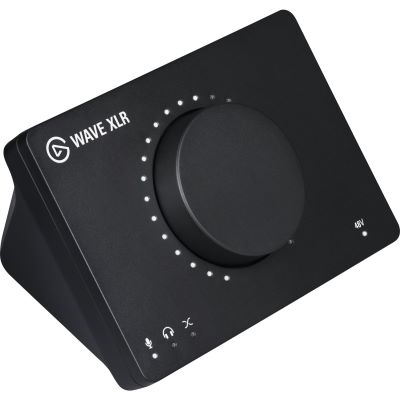

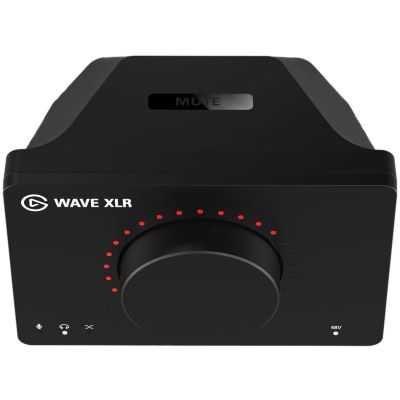

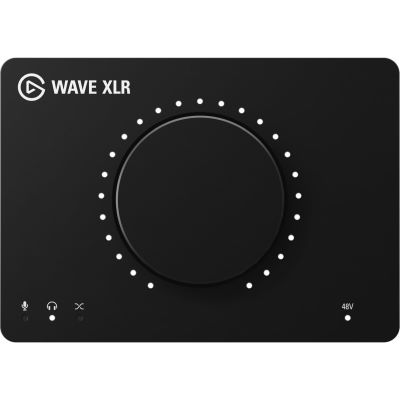

Elgato Wave XLR

Wave XLR combines multiple devices and offers features you won't find in standard audio interfaces: special anti-distortion Clipguard technology, capacitive mute button, and integration with custom Wave Link mixing software. With ultra-low-noise gain of up to 75 dB, you'll be heard loud and clear even with a notoriously insensitive microphone. 48 volts of phantom power breathes life into condenser mics, and two on/off low-cut filters remove low frequencies at near and far mic positions. You can even swap out the front panel and knobs. Wave XLR - a compact USB interface that gives your mic superpowers.

Features:

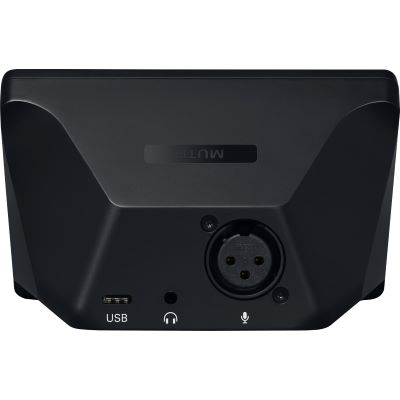

• Premium XLR-to-USB-C connectivity.

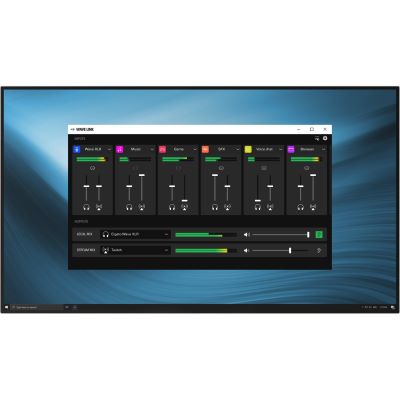

• Use the Wave Link app to mix your Wave XLR with multiple audio sources and create two independent mixes
• Special Clipguard technology prevents microphone distortion
• Ultra-low noise gain of up to 75 dB for low-sensitivity microphones
• 48 V phantom power for use with condenser microphones
• Switchable low-cut filters remove low-frequency noise
• High-performance 3.5 mm headphone output for clear, latency-free monitoring
• Capacitive button mutes microphone at the slightest touch
• Multi-function knob for mic gain, headphone volume and mic/PC mix
• Front panel and dial are interchangeable for different designs

Specifications:

• Frequency response: 20 Hz-20 kHz
• Dynamic range: 100 dB (120 dB with Clipguard)
• Equivalent input noise (ON): -130 dBV at 60 dB gain
• Gain range: 0-75 dB
• Phantom power: 48 VDC, 7 mA
• Maximum input level: 10 V at 0 dB gain (with Clipguard)
• Maximum output level: 77 mW
• Resolution: 24 bit
• Sample rate: 48/96 kHz
• Interface: USB-C
• System requirements: Windows 10 (64 bit), macOS 10.15 or later, USB 3.0 or later

Specs:

• Color: Black
• Rack Mountable: no
• Line Inputs: 0
• Line Outputs: 0
• Mic Inputs: 1
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: USB
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (1.61 MB)
