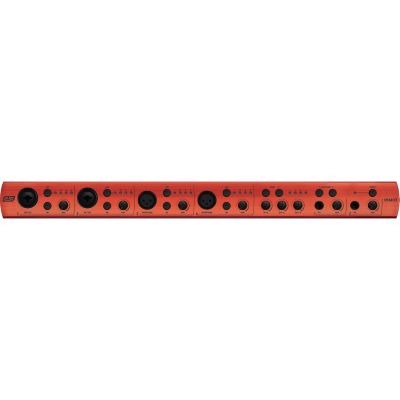

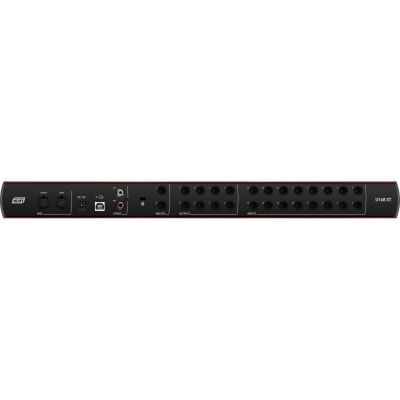

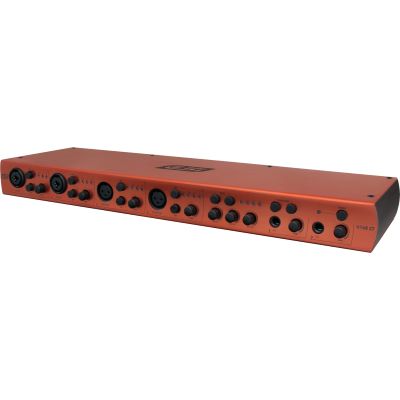

Esi U168 XT USB Audiointerface

The U168 XT from ESI is an audio interface with USB connection. Perfect for professional users due to 16 inputs, 8 outputs and 24-bit / 96kHz power. In addition, the USB 2.0 High-Speed Interface has four integrated microphone preamplifiers with Front panel XLR connector and +48V phantom power, 2 Hi-Z instrument inputs for electric guitars and coaxial digital S/PDIF inputs and outputs.

Features:

• 24-bit / 96kHz USB 2.0 Hi-Speed Audio Interface with 16 Inputs and 8 Outputs
• 4 professional microphone preamps with +48V phantom power
• 2 high-quality Hi-Z instrument inputs with 6.3mm jack socket
• digital S/PDIF input with cinch connector
• digital S/PDIF output with cinch connector
• supports up to 24-bit / 96kHz
• 16 line inputs with balanced 6.3mm jack sockets
• 8 line outputs with balanced 6.3mm jack sockets
• 2 independent headphone outputs with 6.3mm stereo jack socket
• separate stereo mix output with integrated monitor mixer, controlled via front panel
• A/D converter with 107dB(a) dynamic range
• D/A converter with 112dB(a) dynamic range
• 16-channel MIDI interface with one MIDI input and one MIDI output
• Power supply via supplied DC power supply unit

Technical data:

• Windows Vista, Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound
• Mac OS X (10.7 and higher) via CoreAudio USB audio driver
• Dimensions ca. 45.0cm x 14.5cm x 4.5cm

Specs:

• Color: Red
• Rack Mountable: no
• Line Inputs: 15
• Line Outputs: 9
• Mic Inputs: 4
• Phono Inputs: 0
• Instrument Inputs: 2
• digital Output: S/PDIF
• digital Input: S/PDIF
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Host Port: USB
• Number of headphone outputs: 2
• Type: Audio Interface
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (354.28 KB)
