Esi UGM192 USB-Audiointerface

Esi UGM192 USB-Audiointerface

EUR 112.00

incl. VAT | incl. Shipping Cost

instead of SRP : 119.00 EUR
You save : 7.00 EUR (5.88 %)
Availability online:
1 piece on stock
Delivery time: 1 ‐ 2 business days (Germany)
Today shipping with payment till 17:00

Check availability in store:


Add to Cart

Secure Shopping

  • Fast shipping
  • 1 month right of withdrawal
  • Buyer protection
  • Secure payment with SSL encryption

Rating:

No review available

Brand:

Esi

Model:

271997

Shipping Weight:

0.30 kg

Shipped via:

Package

Unit:

piece

4260265610512

Esi UGM192 USB-Audiointerface Product Details

Description

The ESI UGM192 is an ultra-compact USB audio interface offering 24-bit / 192kHz / 114dB audio quality.

Guitarists will be very interested in the UGM196, which is only 8.7 cm wide and weighs 100 g: a USB 3.1 audio interface that not only offers a jack socket specially designed for high-impedance instruments - i.e. electric guitars and acoustic guitars with pickups - but also a balanced microphone input with switchable phantom power. If you wish, you can convert at an audiophile 192 kHz for solo recordings, for example, but the sound of the UGM192 is crystal clear and crisp even at a sampling frequency of 48 or 96 kHz, and the converter dynamic range is a spectacular 114 dB in any case.

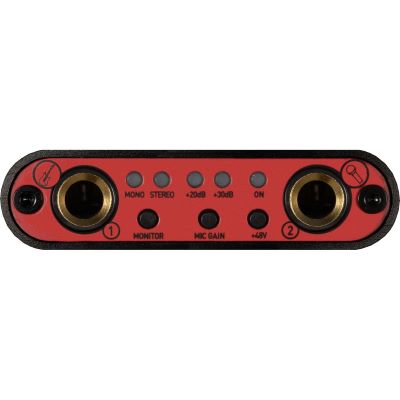

There are three buttons on the front panel: you can activate real-time monitoring of the recording signal (MONITOR), either in stereo or mono; you can boost the recording signal by a flat 20 or 30 dB (MIC GAIN), which is ideal for dynamic microphones; and you can activate phantom power for channel 2 (+48V). Corresponding status LEDs provide information about the selected settings at any time.

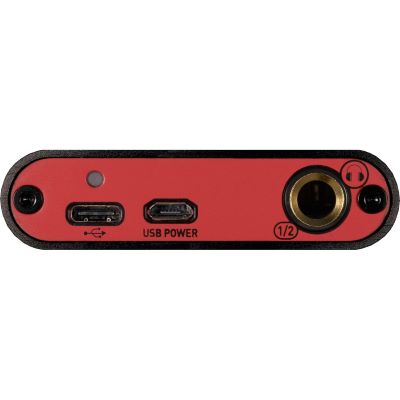

On the rear panel there is a 6.3 mm stereo jack, which serves as both line and headphone output. To the left of it, also a special feature, are two USB ports: via the USB-C jack you connect the UGM192 to your computer or mobile device, and via the Micro-USB jack the UGM192 can be powered from a powerbank or with a charging plug if needed, e.g. if the power supply from a smartphone is not sufficient.

Under Mac, the UGM192 is immediately recognized, under Windows ESI's proprietary and extremely low-latency EWDM driver with DirectWIRE comes into play, which also allows audio signals to be routed, combined, split and used simultaneously by multiple audio applications at the driver level. Included with the UGM192 are software licenses for Audified inTone 2, Audified GK Amplification 2 LE, Audified ampLion Free, and Deckadence LE V2.

Features:

  • ultra-compact and lightweight
  • 6.3 mm jack input for high-impedance instruments
  • Balanced 6.3 mm TRS microphone input
  • +48 volt phantom power, switchable
  • low-noise microphone preamp
  • headphone/line output (6.3 mm TRS jack, stereo)
  • 24 bit/192 kHz digital converter with 114 dB dynamic range
  • MONITOR button for direct monitoring of the recording signal
  • two-stage MIC GAIN switch (+20 dB/+30 dB) for dynamic microphones
  • USB 3.1 port, USB 2.0 compatible
  • Power supply via USB-C
  • Micro USB port for alternative power supply via power bank or charging plug
  • USB-C to USB-A cable included
  • incl. free license for Audified inTone 2, Audified GK Amplification 2 LE, Audified ampLion Free
  • incl. free license for Deckadence LE V2
  • Hi-Z instrument input: 6.3 mm TS jack
  • Microphone input: 6.3 mm TRS jack (balanced)
  • Phantom power: +48 Volt, switchable
  • Mic Gain (Boost): +20 dB, +30 dB
  • Line/headphone output': 6.3 mm TRS jack, stereo
  • Dynamic range digital converter: 114 dB
  • Word width: 16 bit, 24 bit
  • Sampling frequency: 44.1 kHz /48 kHz /96 kHz/192 kHz
  • Power supply via USB
  • Housing: Metal
  • System requirements: Windows 7/8/10; Mac OS X 10.9 (or later)
  • Dimensions (WxDxH): 87 x 67 x 20 mm
  • Weight: 100 g

Specs

Color: Multi-Colored
Rack Mountable: no
Line Inputs: 1
Line Outputs: 2
Mic Inputs: 1
Phono Inputs: 0
Instrument Inputs: 1
Digital Output: none
Digital Input: none
Headphone Out: yes
MIDI Inputs: 0 Ports
MIDI Outputs: 0 Ports
Host Port: USB
Headphone Outs: 1
Type: Audio Interface
Theme: Recording and Studio
