EUROLITE LED Pixel Tower incl. Case

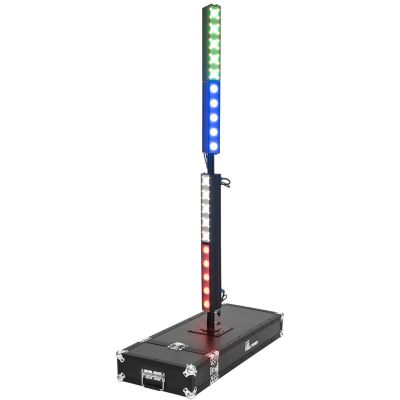

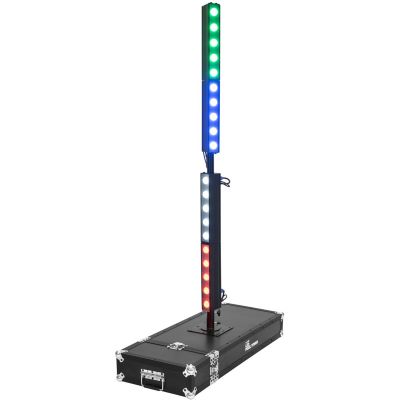

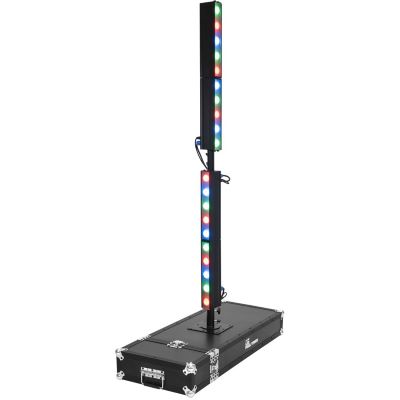

The EUROLITE LED Pixel Tower is a multifunctional vertical light effect that can be mounted on a supplied case. The Eurolite Pixel Tower is a versatile, portable lighting system. The system comprises 2 individual light columns, each of which consists of 2 rotating segments. The columns can be set up individually or in combination.

Features:

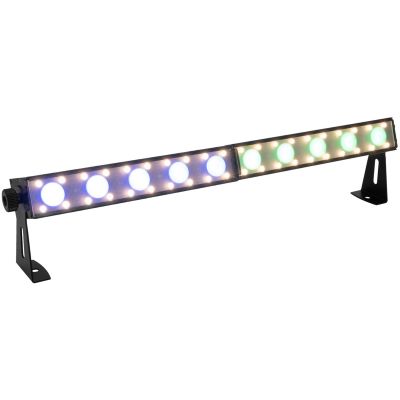

• Two LED strips with a total of 20 x 15 W RGBW LEDs (4in1) and 80 x SMD LEDs in warm white
• Comprehensive range of accessories for versatile applications included in the scope of delivery

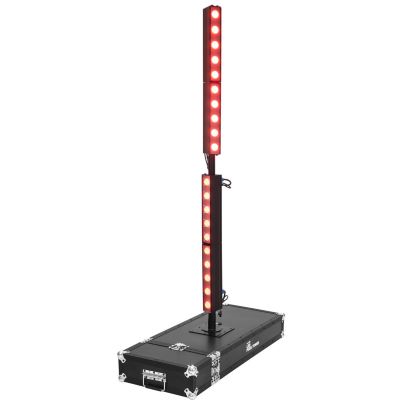

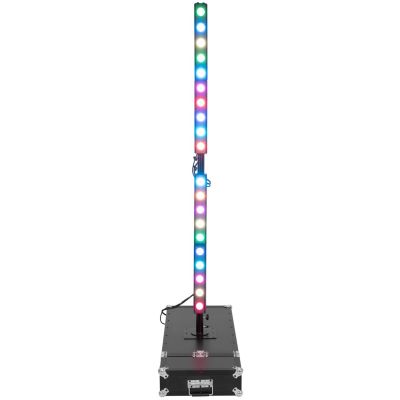

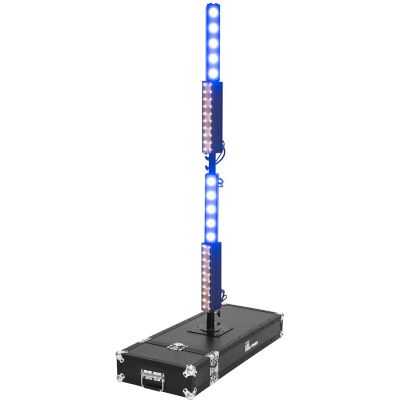

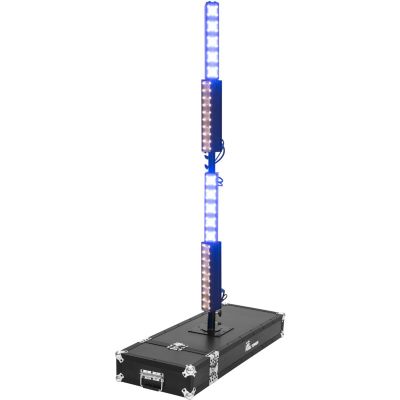

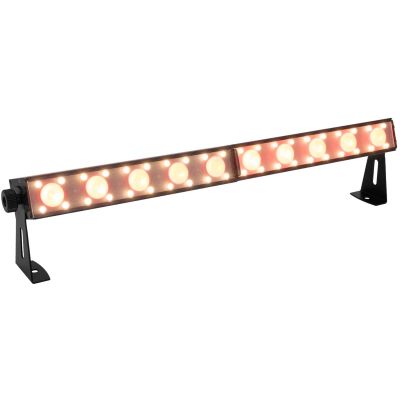

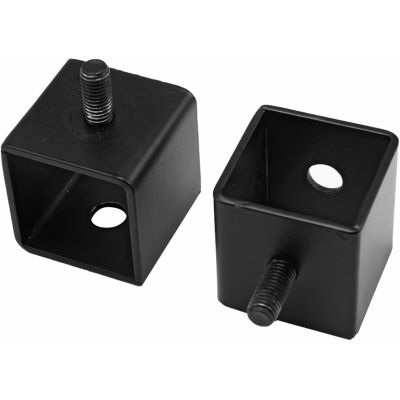

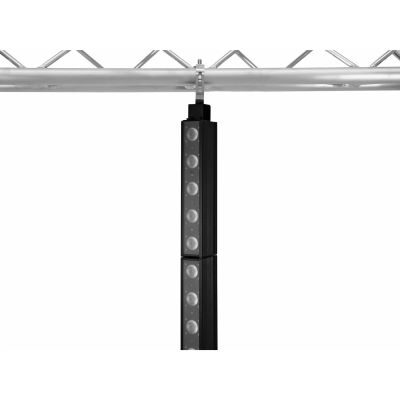

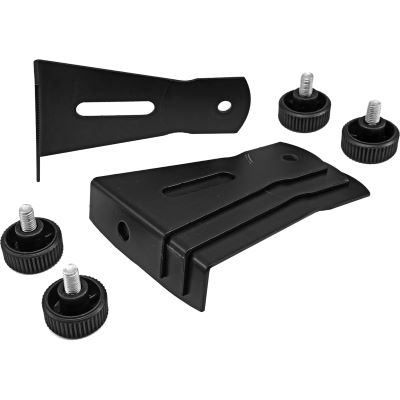

• Mounting options: single or combined standing on supplied case, hanging over mounting adapter, standing or hanging over mounting bracket or TV spigot

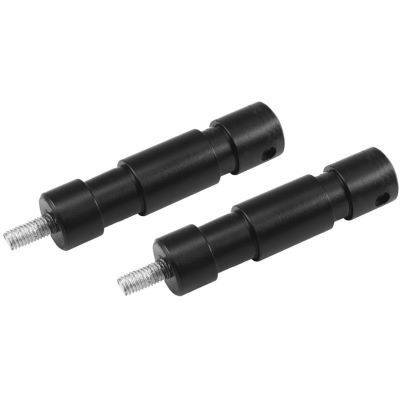

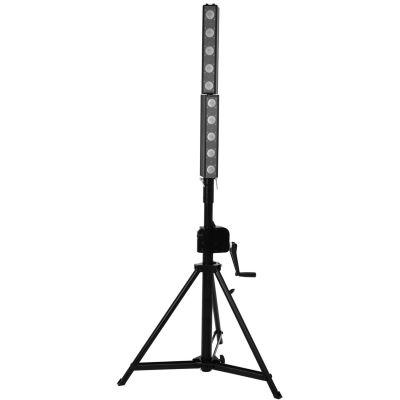

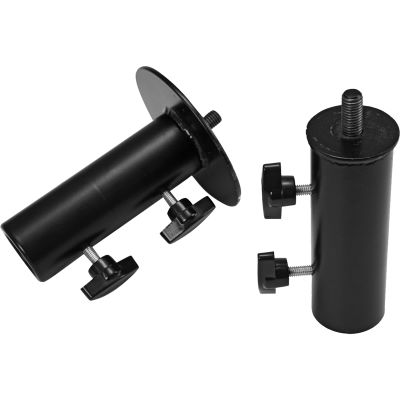

• TV spigot for installation on tripods with 28 mm inner diameter

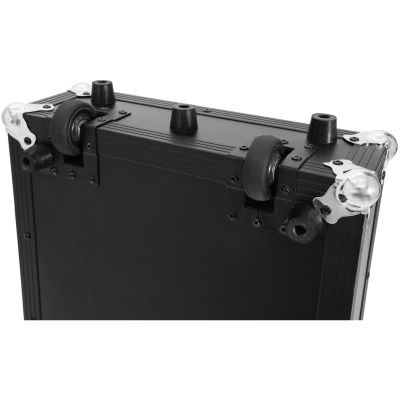

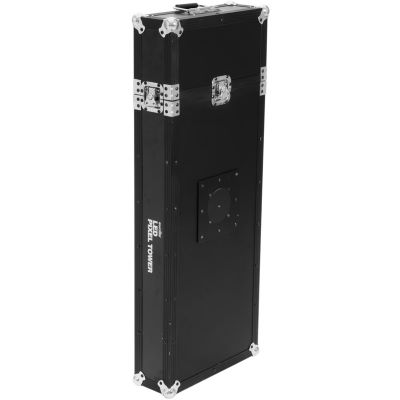

• Delivery in a professional flightcase with transport wheels, ideally suited for mobile use and safe storage.
• Each RGBW LED can be controlled individually and, like the warm white LEDs, in four groups
• Flicker-free projection

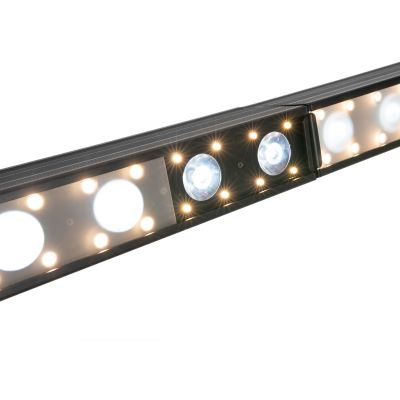

• Each LED strip can be rotated manually in the middle via a joint

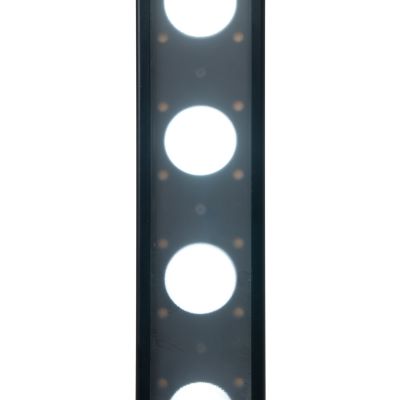

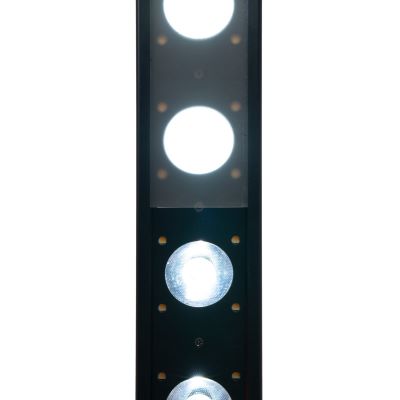

• Narrow beam angle, adjustable to a homogeneous and soft light by the removable milky diffusor discs (frost filter)
• Auto, music and DMX mode
• 5, 12, 20, 27 or 84 DMX channels selectable
• Music control via built-in microphone with adjustable microphone sensitivity
• Functions: stepless RGBW color mixing, color presettings, internal programs, dimmers and strobe effect
• 96 professionally developed integrated show programs in auto and music mode

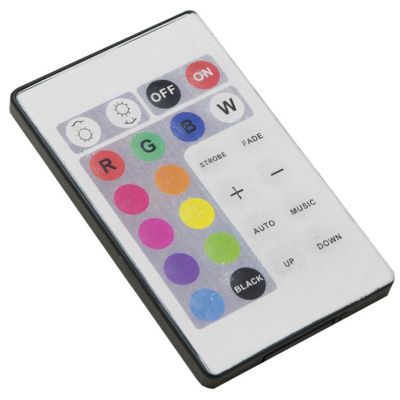

• Convenient remote control via supplied IR remote control EUROLITE IR-34

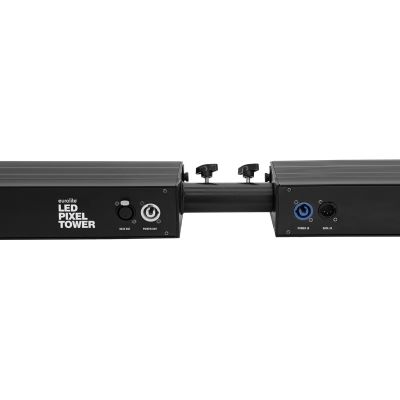

• Connection between the two LED strips via P-Con and 3-pin XLR cables can be extended spatially as required

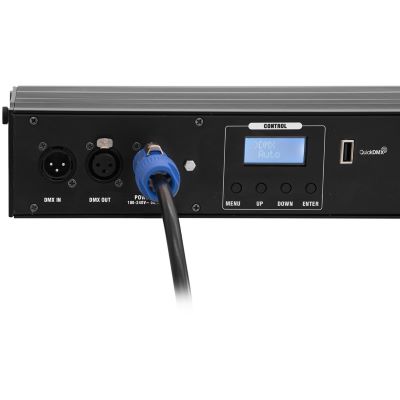

• Addressing and setting via control board with LCD
• Compatible with QuickDMX - the wireless DMX system from Eurolite
• Phantom-powered USB jack for QuickDMX receiver (accessory)
• DMX512 control possible via any commercially available DMX controller
• Mains connection via P-Con socket and enclosed mains cable with earthing contact plug
• LED: 80 x SMD 0.3 W WW (homogeneous colour mixing)
• LED: 20 x high-power 15 W 4in1 QCL RGBW (homogeneous colour mixing)
• Control: IR remote control; music control via microphone; QuickDMX via USB possible; DMX

Technical Specificatons:

• Power supply: 110-240 V AC, 50/60 Hz
• Total connected load: 250 W
• LED:80 x SMD 0,3 W WW (homogeneous color mixing); 20 x high-power 15 W 4in1 QCL RGBW (homogeneous color mixing)
• DMX channels: 12; 20; 27; 84; 5
• DMX input: 1 x 3-pin XLR (M) Built-in version
• DMX output: 1 x 3-pin XLR (W) Built-in version
• Protection class: IP20
• Fan: Without, convection cooled
• Control: IR remote control; music control via microphone; QuickDMX via USB possible; DMX
• Beam angle: 8°.
• Housing colour: Black
• Mounting bracket: TV spigot system 28mm
• weight: 12,00 kg
• Length device: 110 cm
• Width device: 44 cm
• Device height: 200 cm
• Length segment: 920 cm
• width segment: 10,1 cm
• Height segment: 7 cm
• Length Case: 110 cm
• Width Case: 44 cm
• Case height: 18 cm
• Remote control: Button cell 3.0 V CR2025 lithium-manganese (included)
