HK Audio Linear 5 LTS

What does it take to throw the entire frequency spectrum over 30 meters and beyond? Only large line arrays pack a punch powerful enough to deliver that kind of performance. Until now, that is. LINEAR 5 LTS A has arrived, and it’s the first speaker to deliver real long throw performance in an ultra-compact format. Now you can hit the road with fewer speaker components in tow, saving valuable space on your truck. What’s more, you can set up, stack and fly rigs that much faster and easier. The new LINEAR 5 LTS A is not only the easiest way of treating audiences of up to 3,000 to the best sound; it’s also the most economical option out there.

Features:

• Ultra compact long throw system
• Economical (cost-performance ratio, saves truck space)

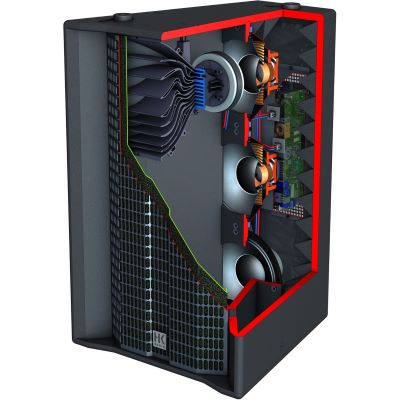

• Innovative Multicell Transformer Technologie (MCT)
• Vertical asymmetrical directivity (+5° / -25°)
• Acoustically correct headstacking
• 1.000 Watt (650 W + 350 W, biamped)
• 138 dB Halfspace
• Made in Germany

Technical Specificatons:

• Max SPL: 133 dB half space (@10% THD)
• Max SPL peak: 138 dB half space (@10% THD)
• Max SPL calculated: 141 dB half space
• Frequency response +/- 3 dB: 115 Hz – 14 kHz
• Frequency response -10 dB: 100 Hz – 20 kHz
• Power Rating: 1000 Watt
• Low/Midrange amplifier: 650 Watt @ 4 ohms
• HF Amplifier: 350 Watt @ 4 ohms
• Amplifier: Class D – Biamped
• Active protection circuits: Undervoltage Protection, Thermoprotection, Short Circuit Protection, Overcurrent Protection, Subsonic 24 dB/oct., Peak limiter, DSP-Input limiter
• Low/Mid Speaker: 3x 8" Neodymium
• HF Driver: 1" Neodymium
• Horn characteristics: 60° x +5°/-25° MCT horn
• Cut-off Frequency active: 1.7 kHz FIR X-Over with 48 dB/oct.

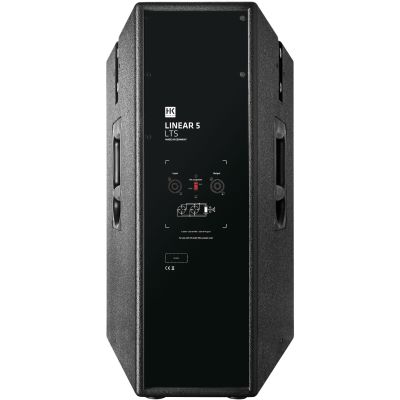

• Connections: 1x XLR–1/4"-Combo In, 1x XLR-Thru
• Input Sensitivity: +4 dBu @ Gain Centerclick / L5 System Level
• Pole mount: MonoTilt 0°
• Rigging points: 7x M8
• Handles: 2, Integrated
• Enclosure: Birch multiplex
• Grille: 2 mm metal grille backed with black acoustic foam
• Finish: Acrylic enamel, black
• Optional accessories: Protective cover, Tilt Bracket, Tilt Bracket Head Stack Extension Pack, Cluster Plate (Pick Point), AP-8 Rigging Point
• Dimensions (WxHxD): 44 x 68 x 46 cm
• Weight: 24.9 kg / 54.9 lbs.

Specs:

• Impedance: 8 Ω
• Power: 600 W
• Housing Material: Wood
• Pole Mount: yes
• Airworthy: yes
• Woofer: 3 x 8
• Tweeter: 1 x 2
• Set Offer: no
• Type: Full Range Speaker
• Theme: PA and Sonication
