iConnectivity iConnect AUDIO 4+ Product Details

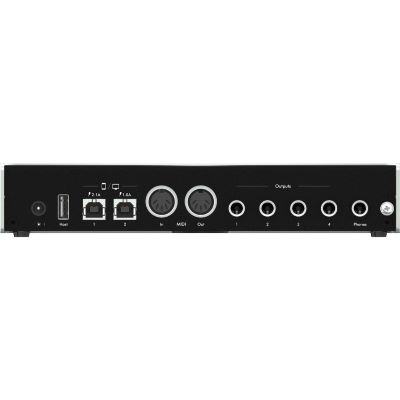

The iConnect AUDIO 4+ is a MIDI and audio interface in one. It integrates seamless high-definition audio signals, MIDI, USB, microphone, instruments, loudspeaker and more in DAWs with iOS devices or computers.
From iConnectivity comes the world’s first audio and MIDI interface to support multiple iOS/PC/Mac computers at the same time. Make your iPad a touch-controlled plug-in in your DAW. Send dozens of MIDI and digital audio channels back and forth between two computers. Or run and record your entire studio from your iOS/PC/Mac by itself. It all becomes one integrated music machine.
Features:
- Multi-host Device ports – use 2 computer devices (Mac/PC/iOS) at the same time
- Host port for connecting up to 8 MIDI peripherals (with Class-compliant devices connected to a powered hub)
- Audio and MIDI passThru routes audio digitally between two computing devices
- Standalone computer-less operation – mix/merge audio and host 5 pin DIN + USB class compliant MIDI
- 4 XLR – ¼” TRS combo analog inputs
- 4 Premium microphone preamplifiers with 48v phantom power
- 4 ¼” TRS balanced analog outputs
- ¼” Headphone output with independent mix
- 1 X 1 regular 5 pin DIN MIDI in/out
- 29 routable MIDI ports: Mac, PC, iOS, 5 pin MIDI DIN and class compliant USB MIDI devices
- Comprehensive audio mixing and routing between connected USB computing devices and analog outputs
- iConfig software (Mac, Windows, iOS) makes it simple to set up filtering/routing/merging scenes – which are also stored in flash memory on the device
- High-resolution audio - up to 24-bit/96kHz AD/DA conversion
- Capacitive touch user controls
- Charges an iOS device
Specs:
- Color: Silver
- Rack Mountable: no
- Line Inputs: 4
- Line Outputs: 4
- Mic Inputs: 4
- Phono Inputs: 0
- Instrument Inputs: 4
- digital Output: none
- digital Input: none
- Headphone Out: yes
- MIDI Inputs: 1 Port
- MIDI Outputs: 1 Port
- Host Port: USB
- Number of headphone outputs: 1
- Type: Audio Interface
- Theme: Recording and Studio
