Klotz LX3-3X1K2-02.0 DMX Kabel OT206Y schwarz 2m

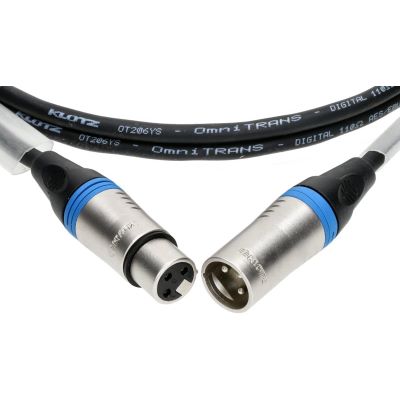

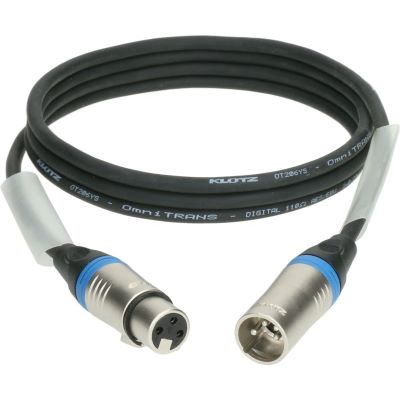

The Klotz LX3-3X1K2-02.0 DMX cable is equipped with XLR 3p. Connectors and transmits digital DMX lighting control signals extremely reliable. A low capacitance and attenuation, and at the same time a dense shielding with spiral shielding, guarantee especially in the digital field so important interference-free signal transmission, even over long distances. Tightly stranded wire pairs increase immunity to external electromagnetic interference. The OT206Y cable used has the characteristic impedance of 110 Ω that is mandatory for digital signals. A robust PVC outer jacket with a diameter of only 6.0 mm provides mechanical stability and at the same time gives the cable very good flexibility.

Features:

• Cable length: 2m
• Cable type: OT206YS, conductor cross section 0.22 mm², min. bending radius 30 mm
• High quality copper cores (purity of 99.95%)
• Shielding: AL/PET foil, tinned copper braid, tinned copper braid (85% coverage)
• Jacket: PVC, matt
• Connector 1: XLR 3p. female
• Connector 2: XLR 3p. male
• Contacts: silver plated

Specs:

• Port A: XLR female
• Port B: XLR male
• Usage: DMX cable
• Cable Length: 2 m
• Color: Black
• Type: Cable
• Theme: Cables and Pins
