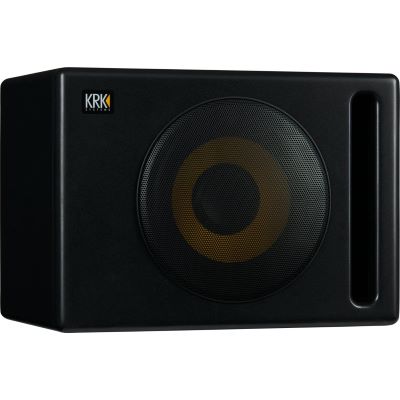

KRK S10 G4 Studio Subwoofer

The S10 G4 Studio from KRK is an active subwoofer that gives the bass a rich, harmonious precision. The sub's cabinet is made of 15 and 18 mm thick MDF panels and was finished with a finished with a black vinyl finish paint. The S10 G4 is equipped with a powerful Class D amplifier, which ensures that the signal is divided into the respective paths before the power amplifiers. respective paths. The 10-inch speaker cone made of a hybrid aramid / glass fabric, which is composed of a mat with glass threads, ensures a special impact resistance and powerful signal reproduction. In combination with the bass reflex port, a balanced and full sounding sub range is guaranteed.

On the back of the KRK Sub's one still finds a volume knob and a potentiometer for crossover frequencies, which give the user even more control. Equally useful are the four switches with input sensitivity for the sensitivity of the source, a phase rotation (0 ° and 180 °) that turns the signal of the S10 G4 upside down as well as the stand-by mode in "non-use". "and last but not least the GROUND-LIFT switch, which changes the shielding of the cable either to device ground or "free" and thus avoids hum disturbances caused by ground loops. avoids.

Features:

• High-quality G-series active subwoofer from KRK.
• Amplifier: Class-D
• Power: 160 W
• Speaker: 10" Glass Aramid composite woofer
• Frequency response: 30 - 110 Hz
• Sound pressure level (SPL): 117.2 dB
• Signal-to-noise ratio (SNR): 92 dB
• Input Impedance: 9.4 KΩ Balanced, 9.2 KΩ Unbalanced
• Input (unbalanced): 2x Cinch (RCA)
• Input (balanced): 2x 6.3 mm jack & 2x XLR
• Output (unbalanced): 2x Cinch (RCA)
• Output (balanced): 2x 6.3 mm jack & 2x XLR
• SUB & HPF (footswitch): 6,3 mm jack
• Power supply: 100 - 240 V AC (50/60 Hz)
• Dimension (L x W x H): 479 x 310 x 341 mm
• Material: robust wooden housing
• Weight: 15,9 kg
• Color: black

Specs:

• Color: Black
• Set Offer: no
• Frequency Range from: 30 Hz
• Frequency Range to: 110 Hz
• Power: 160 W
• Equipment: 1 x 10
• System Type: Active
• Type: Subwoofer
• Theme: Recording and Studio
