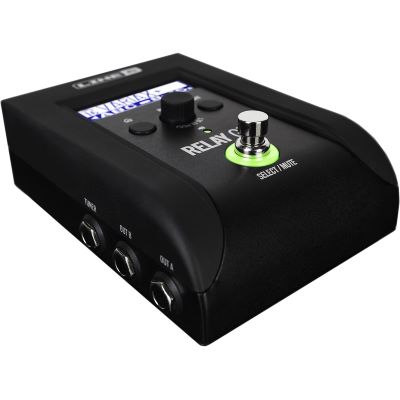

Line6 Relay G70 digitales Funksystem
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- Related Products
- more of Line6
- all articles from the category Wireless Systems for Instruments
Line6 Relay G70 digitales Funksystem Product Details
Features:
- Metal pedal housing
- Four internal antennas
- 5th generation digital signal transmission developed by Line 6
- Latency: <1.5ms
- Frequency response: 10Hz - 20kHz
- Dynamic range: >120dB
- Radio carrier frequency: 2.4GHz
- Operating modes: RF3
- Compatible channels: Up to 16
- Frequency scanning: Yes
- Scene memory: Scene memories that can be selected by foot. "Cable Tone" setting and output selection for each instrument.
- Supports up to 16 transmitters
- Support for multiple instruments: Via scene memories that can be selected by foot.
- Range: 70m within sight (depending on local conditions)
- FCC approval: "Part 15", does not require a user license
- Transmitter: TB516 G
- A/D conversion: 24-bit delta/sigma, 128x oversampling
- Connections: 1/4", with bolt
- Battery life approx.: 8 hours, Up to 70 hours in standby mode (2x AA alkaline batteries)
- Receiver D/A conversion: 24 Bit Delta/Sigma, 128-fold oversampling
- Connectors: 6.35mm input, 2x 6.35mm outputs, 6.35mm tuner output, Balanced XLR output, USB, 9VDC
- Displays the LC display: scene name (up to 32 scene memories), input, transmitter channel, output routing, internal tuning function, info for editable parameters, transmission status, transmitter battery life, mute, firmware version
- Supplied with Micro-USB power supply, 9VDC power supply optionally available
Specs:
- Color: Black
- Set Offer: no
- Frequency band: 2.4 Ghz
- Type: Radio System
- Theme: Guitars and Basses
