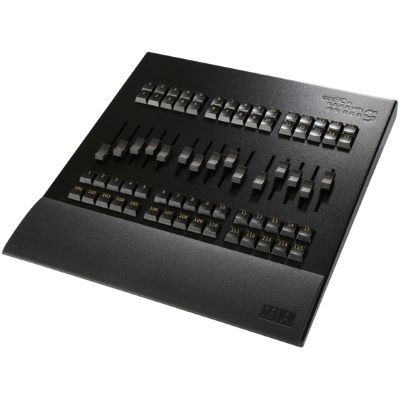

MA Lighting MA onPC fader wing

With the MA onPC fader wing, MA Lighting meets the demand for a mobile control solution that offers the user real faders and buttons in combination with the free grandMA2 onPC software. But that's not all, the MA onPC fader wing also provides 2,048 parameters when connected to grandMA2 onPC. The parameters are output via four built-in DMX ports and via Ethernet protocols via grandMA2 onPC.

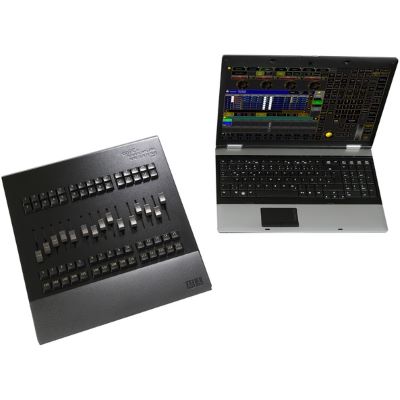

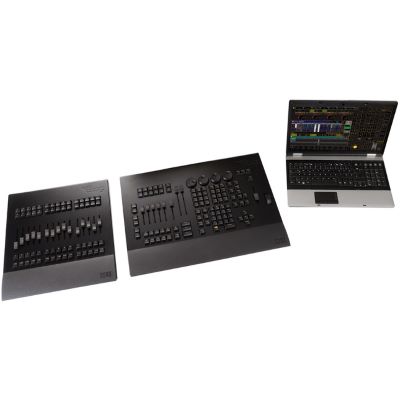

To connect the MA onPC fader wing to the grandMA2 onPC software you only need a simple USB cable. The MA onPC fader wing has been specially designed to work in combination with the MA onPC command wing to get maximum performance from the grandMA2 onPC software. To save USB connections, the USB connection of the MA onPC command wing can be looped through the MA onPC fader wing.

While the MA onPC command wing is based on the command section of the grandMA2, the MA onPC fader wing is based on the fader section of the consoles. In the combination of MA onPC command wing and MA onPC fader wing the products offer a similar user interface and almost identical possibilities as the grandMA2 consoles - but all this at a much lower price.

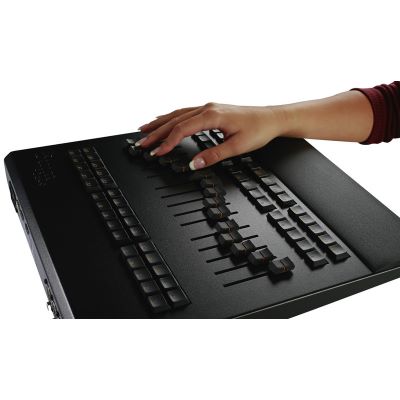

In addition, the MA onPC fader wing offers some clever details such as a port for a Kensington lock and a USB port for an external desk light. Due to these details and the ergonomic design, daily work with the MA onPC fader wing is extremely effective.

The MA onPC fader wing makes it possible to increase the number of parameters - up to a maximum upper limit of 4,096 parameters - and thus offers a wide range of applications. For example, MA 4Port Node onPC and MA 8Port Node onPC add 2,048 parameters and four and eight DMX lines, respectively.

Please note that one MA onPC command wing and up to two MA onPC fader wing can be connected together to each computer on which grandMA2 onPC is installed.

Features:

• Real-time control for up to 2,048 parameters in combination with grandMA2 onPC (up to 65,536 parameters as back-up in MA system)
• Expandable up to 4,096 parameters

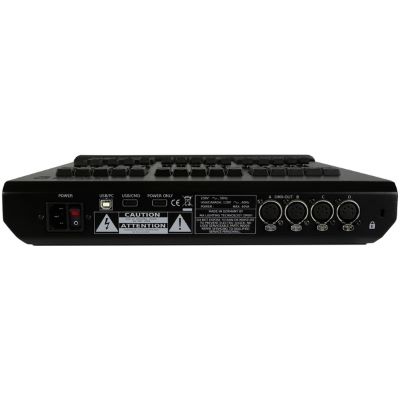

• 4 DMX out (XLR 5pin)
• Fader/Executor Section similar to grandMA2
• 15 Executor faders, 45 Executor buttons, 15 Button executor
• Individually backlit and individually dimmable, noiseless keys, i.e. without a click
• USB connection for external desk light
• Integrated, universal power supply unit
• Light and compact, ideal for mobile use
• Ergonomic design
• Simply connect via USB cable to the PC on which grandMA2 onPC is installed.
• Scope of delivery: dust cover, USB cable 1.9m, cold device cable (lockable) 1.9m end open
