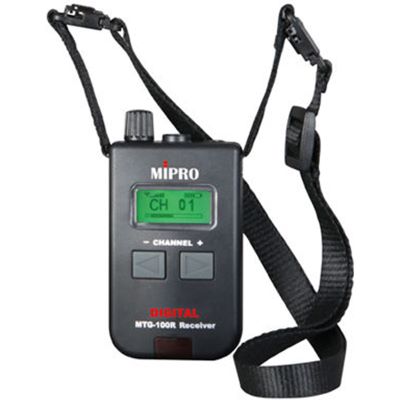

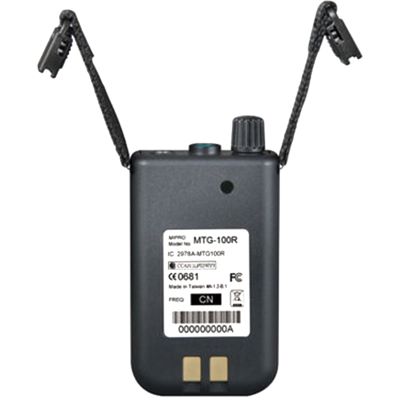

Mipro MTG-100R digitaler Tour Guide Taschenempfänger

The patented digital technology of the Mipro MTG-100R digital tour guide pocket receiver enables tap-proof communication and is specially designed for use in busy museum halls and outdoor tours. Ultra-compact, ultra-lightweight and pocket-sized, the MTG-100 delivers crystal-clear sound in the license-free ISM band 863-865 MHz. Up to 16 pre-programmed interference-free channels can be assigned to different visitor groups without interfering with each other. The lithium batteries used and the extensive range of charging accessories ensure high flexibility and that the system is ready for use at short notice. Robust, tap-proof and easy to operate, the MTG-100 is ideal for guide, interpreter or moderator applications indoors or outdoors.

Features:

• Channel settings can be preset via PC - prevents accidental changes by the user.
• Convenient 4-way charging station, 12- or 28-way charging case for charging, storing and transporting the transmitters/receivers.
• The world's smallest and lightest receiver in breast pocket format. Robust, durable and easy to use.
• Backlit LCD display showing all relevant parameters.
• Ethernet interface for control and management via PC software.
• Operation in the license-free ISM band: EU 863-865 MHz with a reception range of up to 100 m.
• Resistant to interference from Bluetooth, WLAN and 2.4 GHz radio transmissions.
• Digital encryption for secure signal transmission protects against unauthorized listeners.
• Digital true diversity technology prevents dropouts and increases the reception range. Thanks to constant digital transmission, there is no signal attenuation over long distances.
• Crystal clear sound and very good speech intelligibility.
• First system with auto shut-off function reduces power consumption in stand-by mode and thus extends the total operating time.

Technical specifications

• Model: MTG-100R
• Frequency range: 863-865 MHz license-free ISM band
• Tuner method: PLL Synthesized
• Frequency setup: 16 programmed channels
• Bandwidth: 2 MHz
• Channel spacing: 125 kHz
• Sensitivity: Approx. -90 dBm
• Range: Up to 100 meters
• Transmission range: 50 Hz~10 kHz
• Automatic switch-off: programmable (between 10 minutes and 42 hours)
• Power source: Rechargeable lithium polymer battery
• Capacity: > 12 hours operating time
• Dimensions (WxHxD): 45 x 84 x 21 mm
• Weight: Approx. 65 g incl. battery
